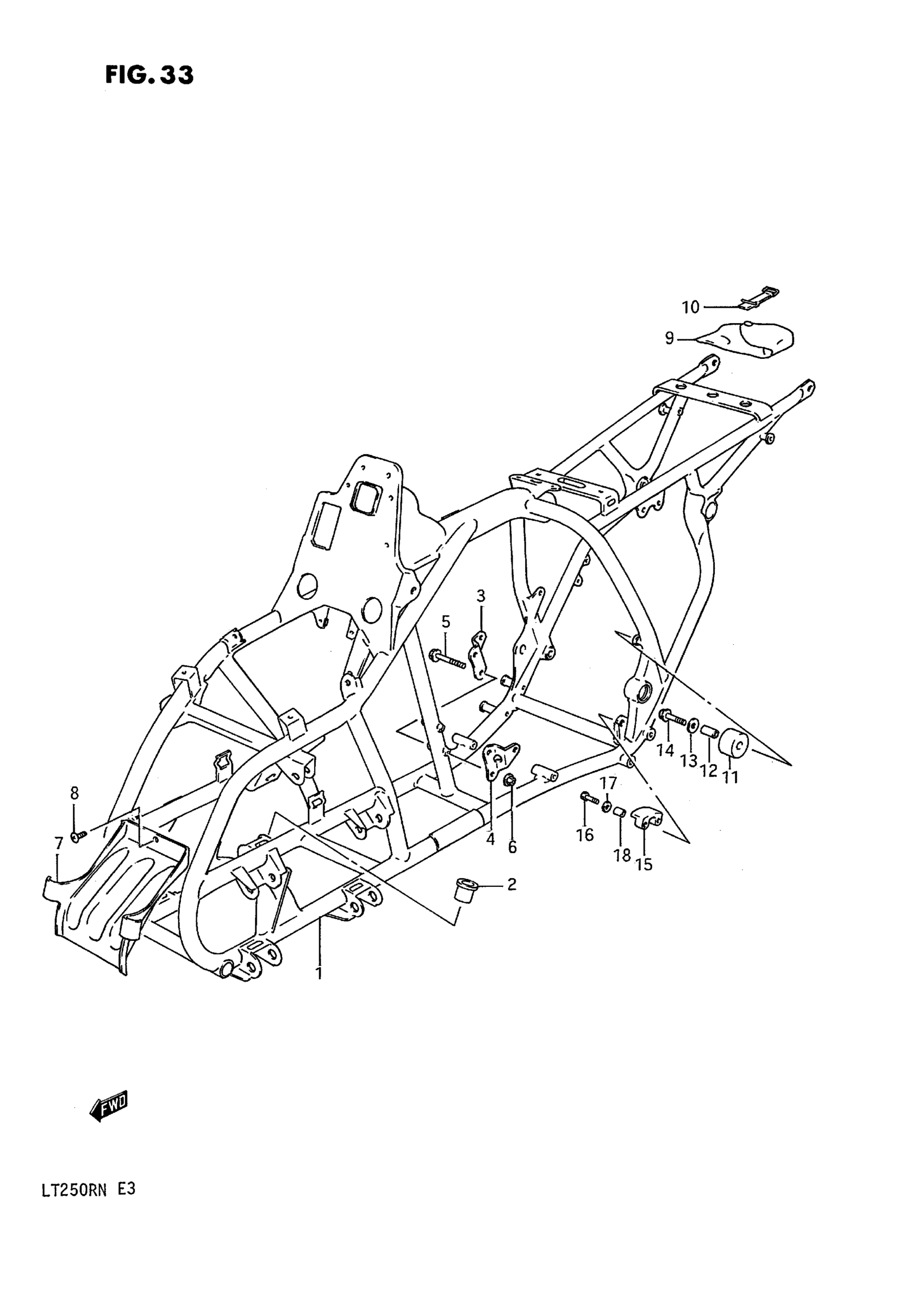

Find the part on the Frame diagram for your 1992 Suzuki LT250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki LT250R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLUE) | Includes Item(s) 2

41100-19A10-19F

1
Out of stock

2

BUSH, STEERING SHAFT

51661-24500

1
Out of stock

3

PLATE, MOUNT NO.1 RH (SILVER)

41991-19A01-13L

1
Out of stock

4

PLATE, MOUNT NO.1 LH (SILVER)

41996-19A00-13L

1
Out of stock

5

BOLT This part replaces 01517-08558.

01550-08557

2
Out of stock

6

NUT

08319-31087

2

$2.48

In stock

7

COVER, RADIATOR FRONT

47311-19A00

1
Out of stock

8

1

$1.35

In stock

9

NO DESCRIPTION AVAILABLE This part replaces 09800-00303.

09800-00323

1
Out of stock

10

BAND, TOOL

09462-00033

1
Out of stock

11

ROLLER, CHAIN CONTROL UPPER This part replaces 43910-14500.

43910-01B00

1
Out of stock

12

SPACER This part replaces 09180-08119.

09180-08156

1
Out of stock

13

1

$2.13

In stock

14

BOLT

09103-08043

1
Out of stock

15

BUFFER, CHAIN This part replaces 43911-19A00.

43911-35B10

1
Out of stock

16

BOLT This part replaces 01107-06305.

01500-0630A

2
Out of stock

17

WASHER This part replaces 09160-06031.

09160-06125

2
Out of stock

18

SPACER This part replaces 09180-06072.

09180-06271

2
Out of stock
