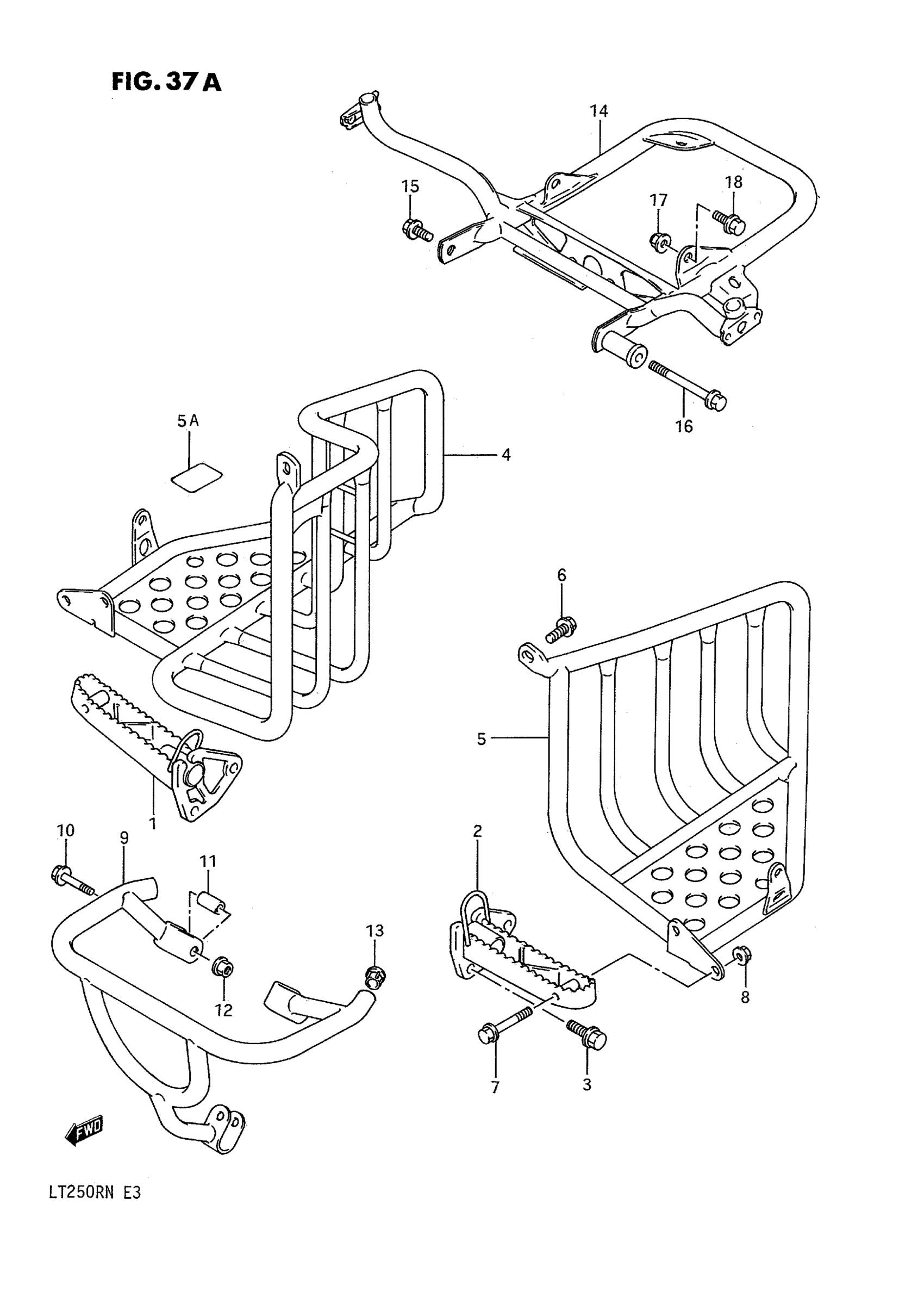

Suzuki LT250R (1992) FOOTREST (MODEL M/N) Diagram

#

Description
Price

1

FOOTREST, FRONT RH (BLUE)

43510-01C10-19F

Unavailable

2

FOOTREST, FRONT LH (BLUE)

43520-01C10-19F

Unavailable

3

BOLT This part replaces 09103-10251.

09103-10037

Unavailable

4

GUARD, BRUSH RH (BLUE)

43570-01C10-19F

Unavailable

5

GUARD, BRUSH RH (BLUE)

43580-01C10-19F

Unavailable

5A

CUSHION

63191-01C10

Unavailable

6

BOLT M8X16 This part replaces 01517-08167.

01550-08167

$2.80

7

BOLT, MUF SPRT,RR This part replaces 01517-08457.

01550-08457

$2.63

8

NUT This part replaces 08313-21087.

08313-20087

$2.19

9

GRIP, FRONT

43990-01C10

Unavailable

10

BOLT, MUF SPRT,RR This part replaces 01517-08457.

01550-08457

$2.63

11

SPACER (8.2X12.5X23.5) This part replaces 09180-08129.

09180-08227

$2.07

12

NUT

08319-31087

$2.31

13

CAP, FRONT GRIP

43978-25C00

Unavailable

14

GRIP, REAR

43980-01C10

Unavailable

15

BOLT M8X16 This part replaces 01517-08167.

01550-08167

$2.80

16

BOLT (8X90) This part replaces 09103-08140.

09103-08112

$9.15

17

NUT

08319-31087

$2.31

18

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.73
