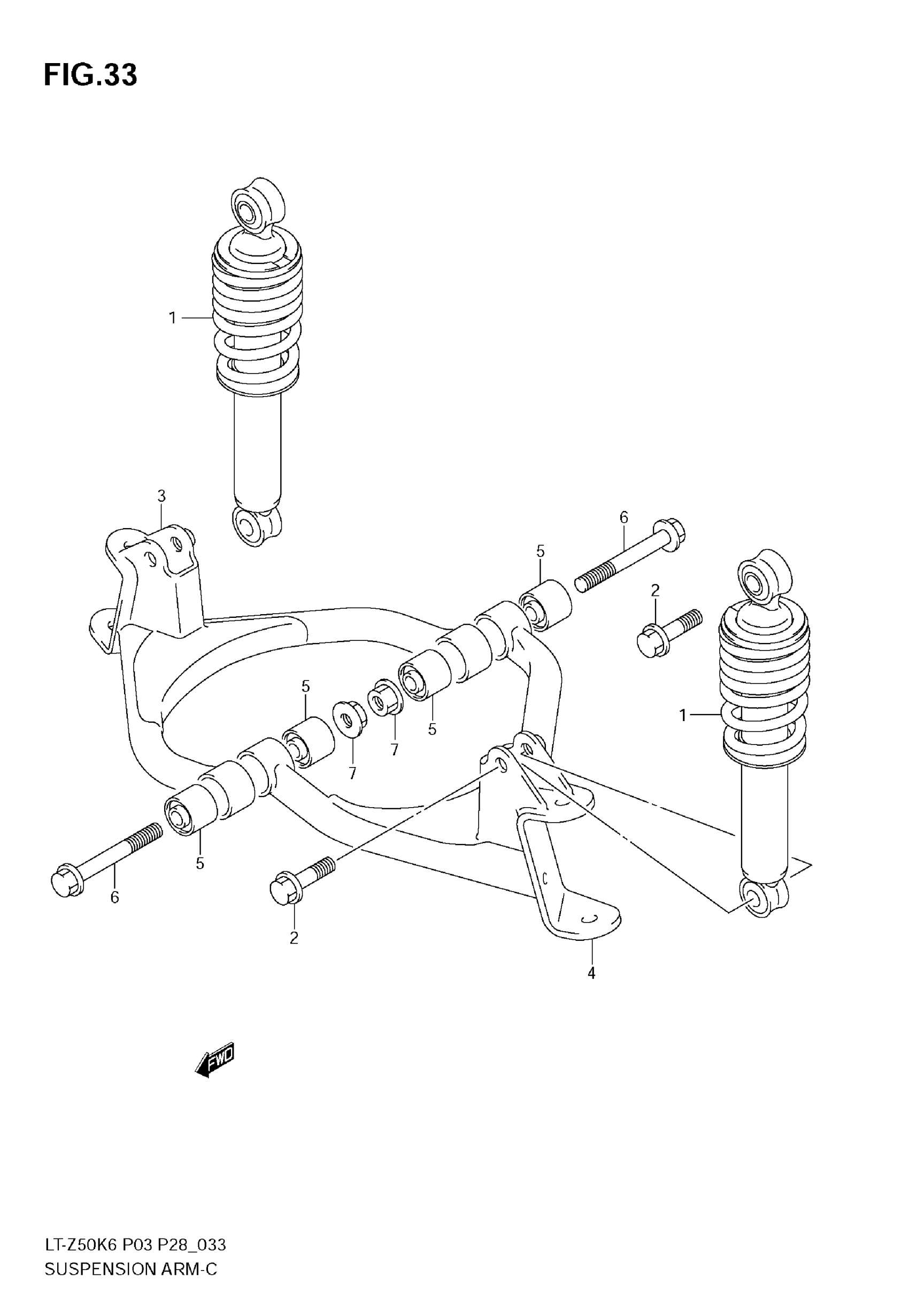

Suzuki LT-Z50 (2009) SUSPENSION ARM Diagram

#

Description

Price

1

ABSORBER ASSY,FR SHOCK (RED) | FOR YU1 This part replaces 52100-43G10-YKS.

52100-43G11-YKS

$219.68

1

ABSORBER ASSY, FRONT (WHITE) | FOR 30H

52100-43G10-28W

Unavailable

2

BOLT, ABSORBER (10X37)

09103-10019

$2.71

3

ARM,SUSPENSION,R (BLACK)

52410-43F00-019

$209.83

4

ARM,SUSPENSION,L (BLACK)

52420-43F00-019

Unavailable

5

BUSH, ARM (10X28.1X28)

09319-10049

$21.92

6

BOLT, SUSPENSION ARM (10X80)

09103-10173

$7.67

7

NUT

08316-2010B

$4.38
