2009 Suzuki LT-Z50 Steering Shaft Diagram

← All diagrams

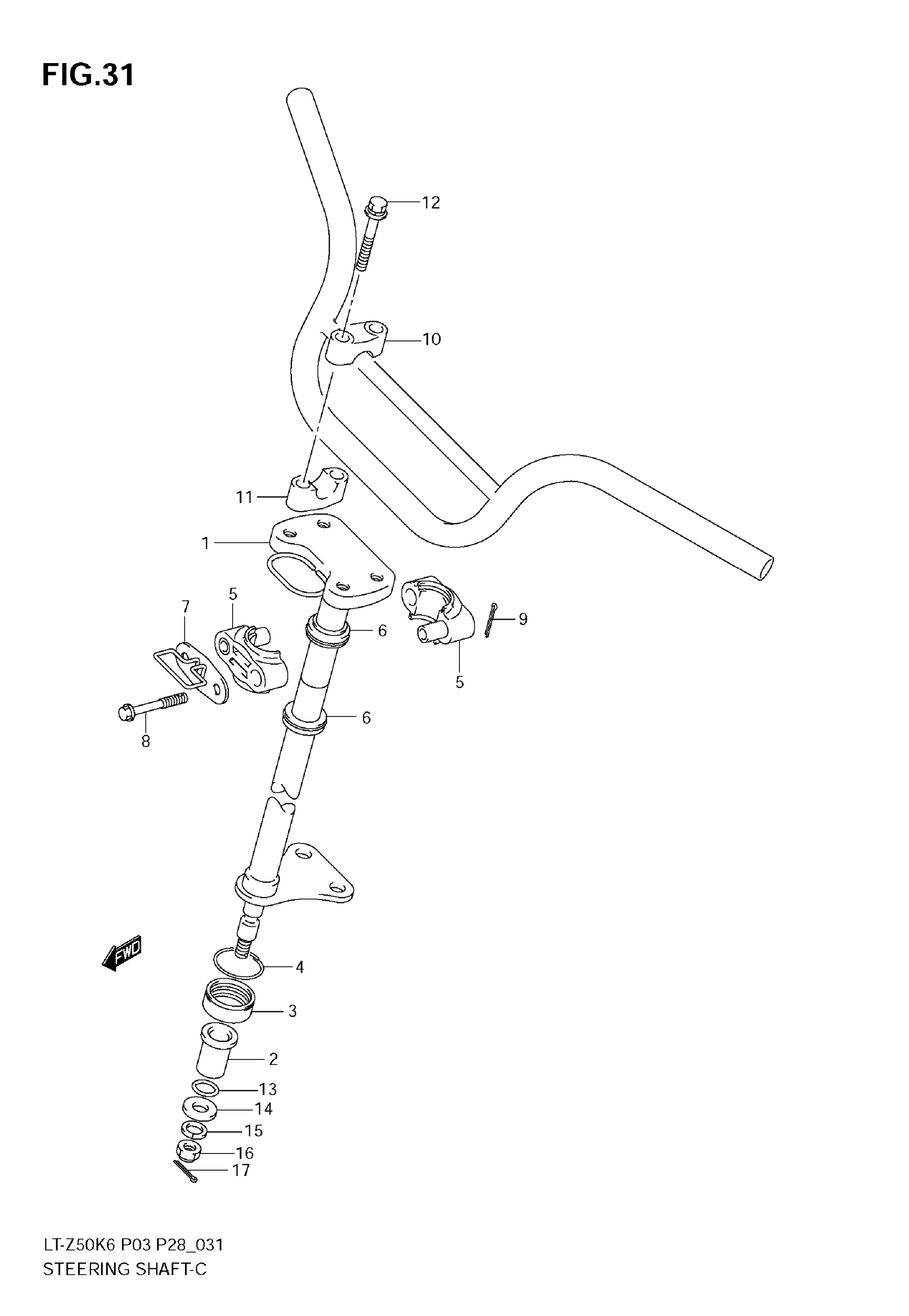

Find the part on the Steering Shaft diagram for your 2009 Suzuki LT-Z50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z50 Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,STEERING

51650-43F00

1
Out of stock

2

BUSH,STEERING SHAFT,LOWER

51661-40B00

1
Out of stock

3

DUST SEAL, STEERING SHAFT

51662-18900

1
Out of stock

4

CLIP, DUST SEAL

09380-31002

1
Out of stock

5

HOLDER,STEERING SHAFT

51670-18902

2
Out of stock

6

DUST SEAL, STEERING

51678-18900

2
Out of stock

7

REINF STEERING HOLDER

51680-43F00

1
Out of stock

8

BOLT (8X60)

09103-08085

2
Out of stock

9

COTTER PIN

04111-2020A

2
Out of stock

10

HOLDER, HANDLEBAR

56211-04200

2
Out of stock

11

HOLDER,HANDLE BAR

56211-43G00

2
Out of stock

12

BOLT

01550-0845B

4
Out of stock

13

O RING (ID:13.8,D:2.50)

09280-14011

1
Out of stock

14

WASHER

09160-10080

1
Out of stock

15

LOCK WASHER | MODEL K6

09162-10008

1
Out of stock

15

LOCK WASHER | MODEL K7/K8/K9

09162-10010

1
Out of stock

16

NUT

08319-2110B

—
Out of stock

17

COTTER PIN

04111-2020A

1
Out of stock
