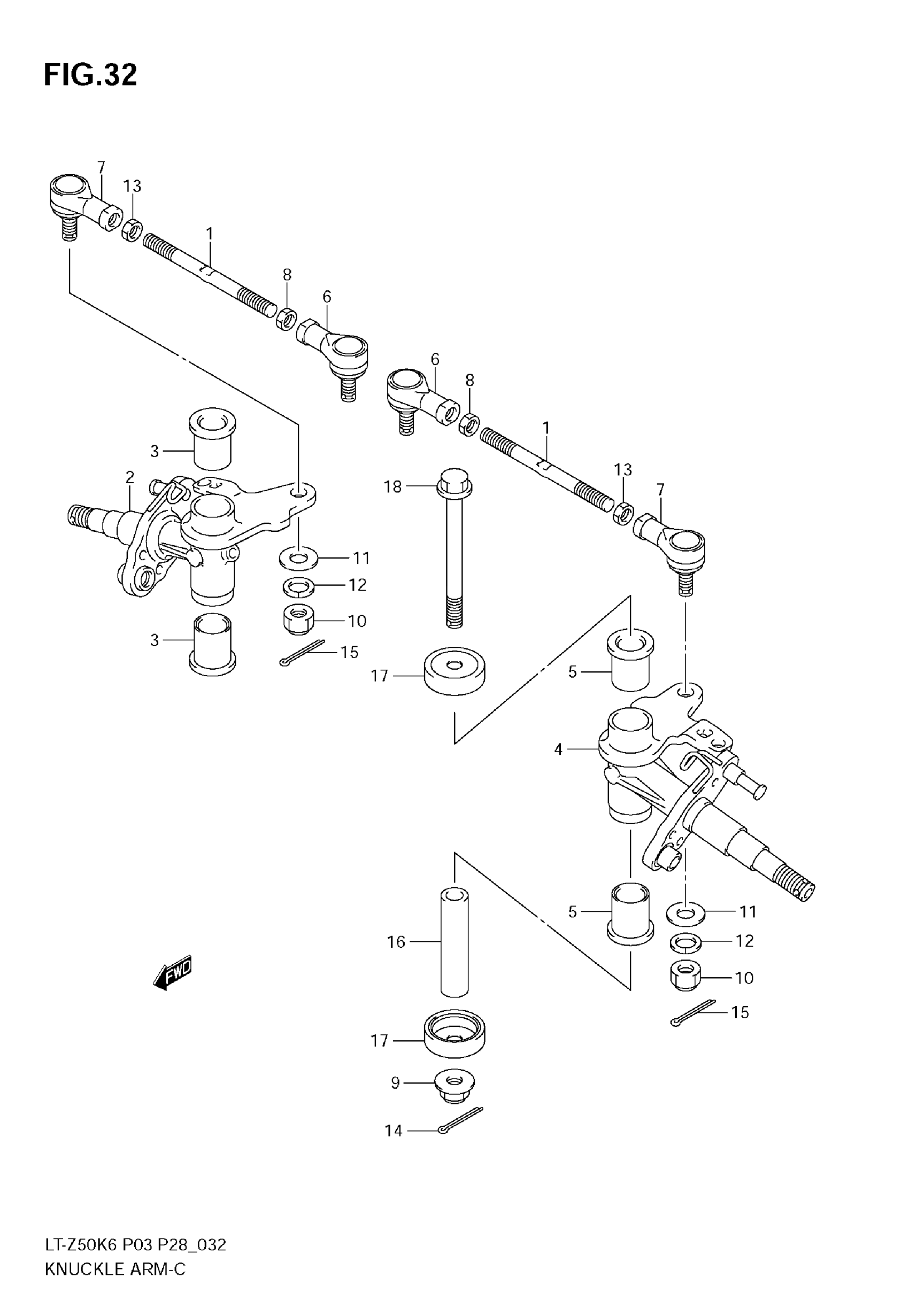

Suzuki LT-Z50 (2009) KNUCKLE ARM Diagram

#

Description
Price

1

TIE-ROD,STEERING

51281-43F00

$31.90

2

ARM,KNUCKLE,R | Includes Item(s) 3

51230-43F00

Unavailable

3

BUSH

51236-40B00

$17.46

4

ARM,KNUCKLE,L | Includes Item(s) 5

51240-43F00

Unavailable

5

BUSH

51236-40B00

$17.46

6

END,ROD,R

51260-43G00

$106.48

7

END,ROD,L

51270-43G00

$108.50

8

NUT (RH THREAD)

09140-10043

$2.92

9

NUT

08319-3110A

$2.73

10

NUT

08319-2110B

Unavailable

11

WASHER

09160-10126

$2.13

12

LOCK WASHER | MODEL K6

09162-10008

$2.80

12

LOCK WASHER | MODEL K7/K8/K9

09162-10010

$4.03

13

NUT, TIE ROD (LH THREAD)

09140-10027

$1.54

14

COTTER PIN

04111-2020A

$1.22

15

COTTER PIN

04111-2020A

$1.22

16

SPACER,KING PIN

51251-40B00

$25.08

17

DUST SEAL

51255-18900

$4.09

18

BOLT,KNUCKLE ARM

51256-43G00

$14.15
