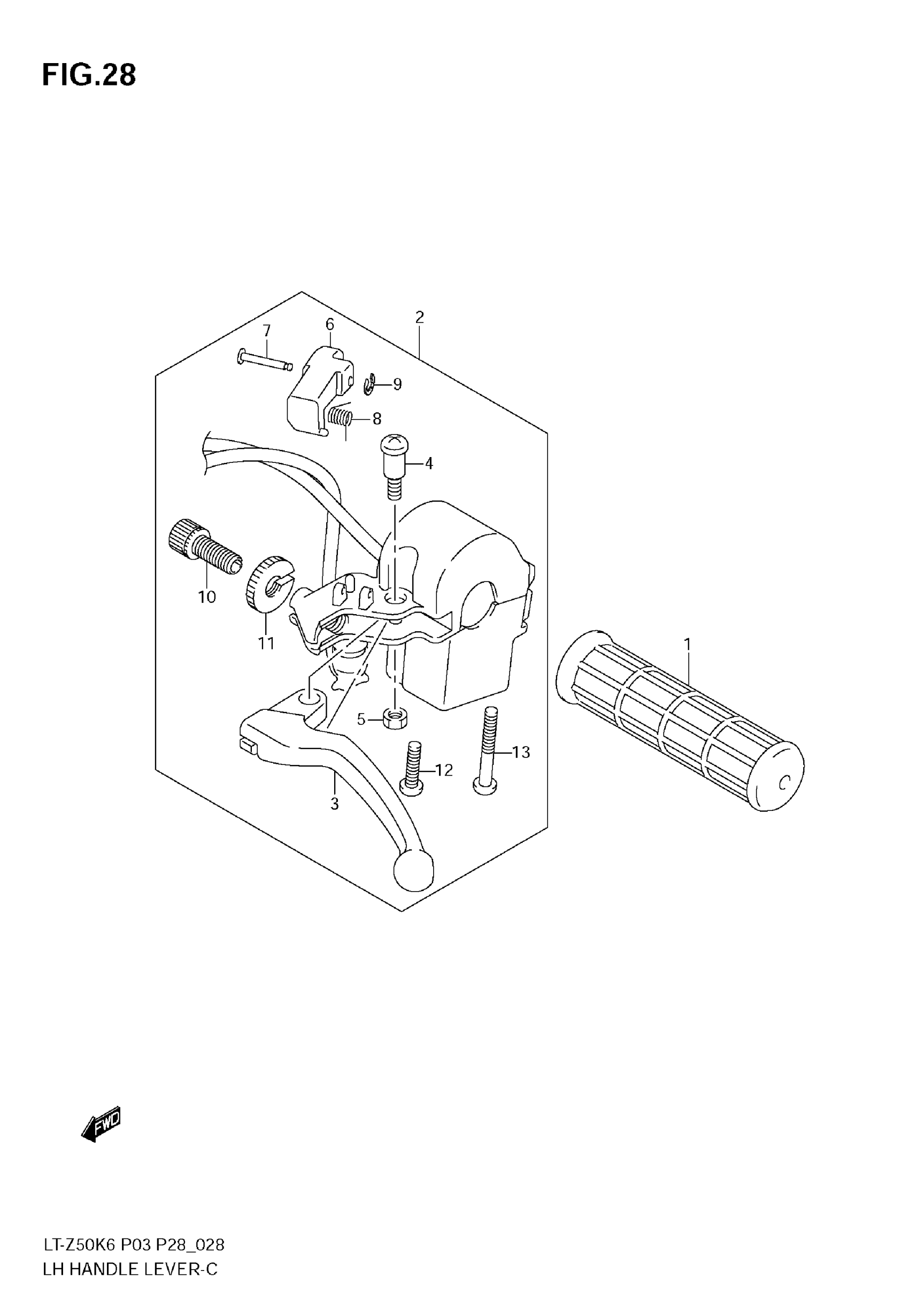

Suzuki LT-Z50 (2009) LH HANDLE LEVER Diagram

#

Description
Price

1

GRIP

57211-04600

$4.51

2

LEVER ASSY, REAR BRAKE | MODEL K6/K7/K8

57500-43G00

$156.10

2

LEVER ASSY,RR BRAKE & SWITCH | MODEL K9; Includes Item(s) 3 - 13

57500-43G10

$156.10

3

LEVER

57421-43G00

$13.10

4

SCREW

57431-43G00

$8.62

5

NUT

08319-2105B

$3.37

6

LOCK PLATE

57791-43G00

$11.20

7

PIN

57781-43G00

$6.77

8

SPRING

57134-43G00

$5.27

9

E RING

57432-43G00

$5.00

10

ADJUSTER, CABLE

57441-43G00

$17.30

11

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$7.92

12

SCREW

02112-0520B

$1.86

13

SCREW

02112-0535B

$1.95
