2009 Suzuki LT-R450 Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2009 Suzuki LT-R450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

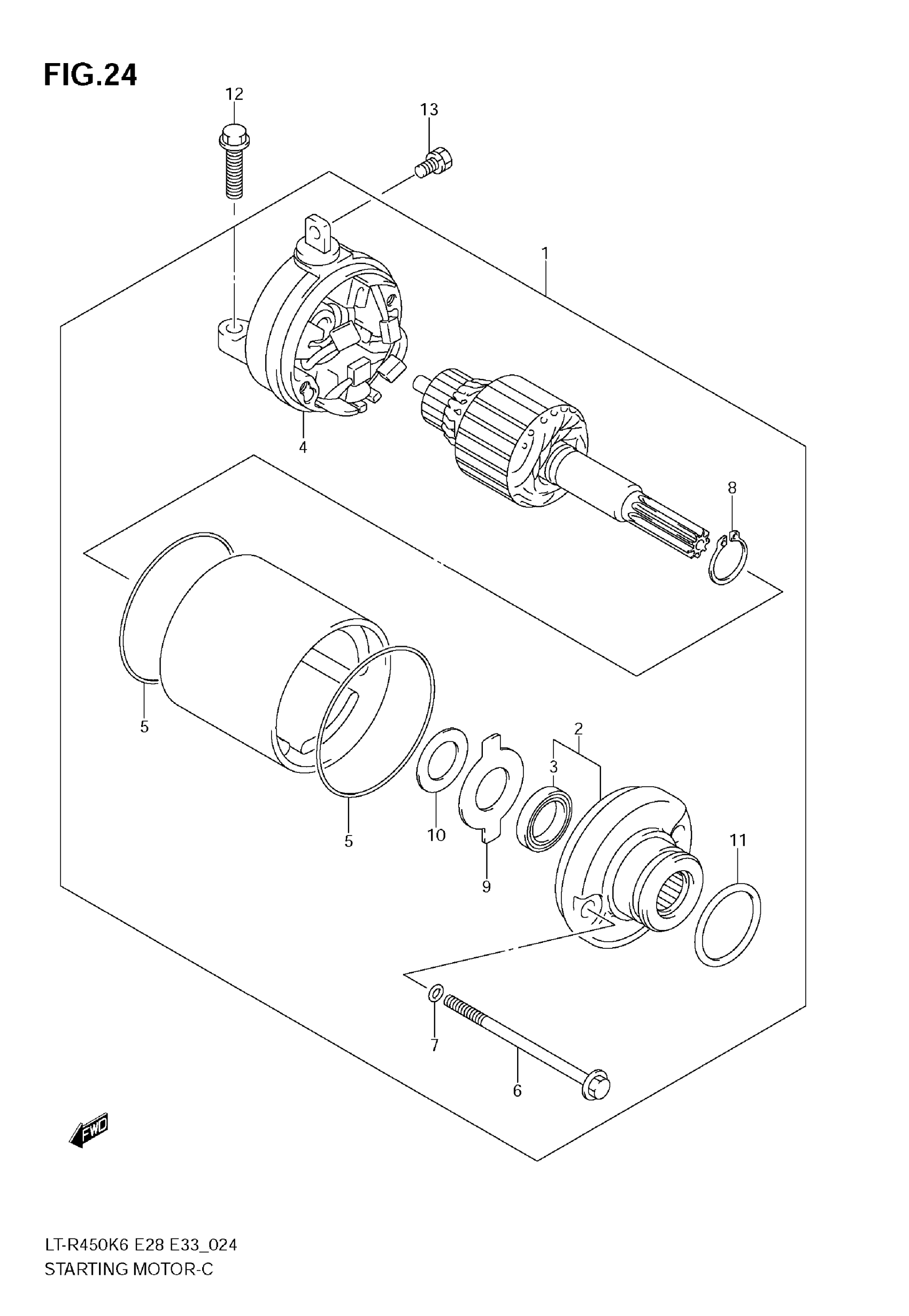

2009 Suzuki LT-R450 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 11

31100-45G00

1
Out of stock

2

HOUSING ASSY

31150-08F00

1
Out of stock

3

OIL SEAL

31153-49210

1
Out of stock

4

FRAME ASSY

31175-45G00

1
Out of stock

5

O RING

31264-32C10

2
Out of stock

6

BOLT

31281-34E00

2
Out of stock

7

O RING

31156-08F00

2
Out of stock

8

RING

31361-10200

1
Out of stock

9

PLATE

31361-32C10

1
Out of stock

10

SHIM

31361-38300

1
Out of stock

11

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

12

BOLT | MODEL K6/K7/K8

01547-0625B

2
Out of stock

12

BOLT | MODEL K9

09103-06212

2
Out of stock

13

SCREW (5X8)

09137-05004

1
Out of stock
