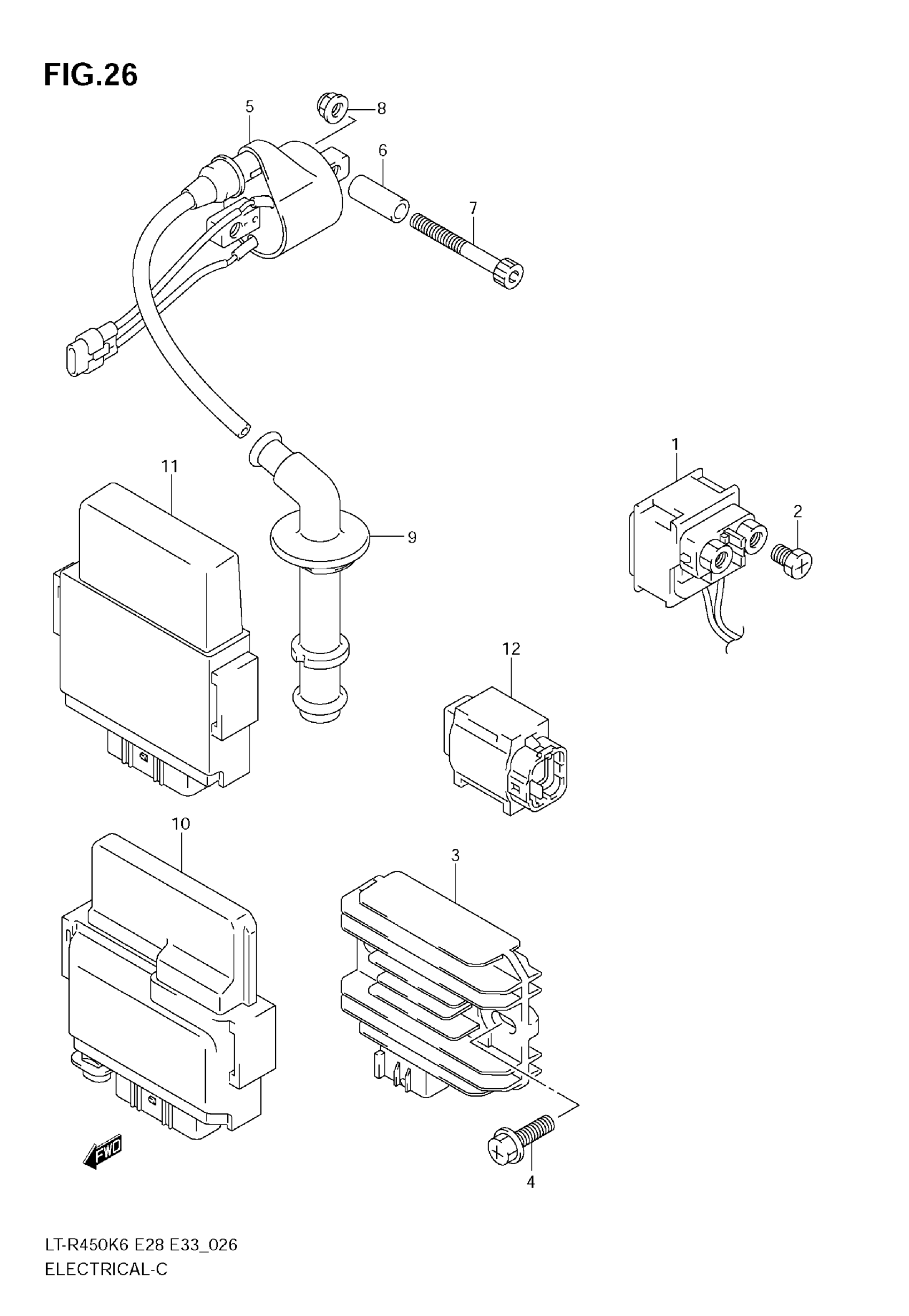

Suzuki LT-R450 (2009) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-45G00.

31800-45G01

$74.42

2

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.24

3

RECTIFIER ASSY | MODEL K6/K7 This part replaces 32800-05G00.

32800-05G11

$124.19

3

RECTIFIER ASSY | MODEL K8/K9 This part replaces 32800-05G10.

32800-05G11

$124.19

4

BOLT, RECTIFIER

02162-0625A

$1.68

5

COIL ASSY, IGNITION

33410-45G00

$134.35

6

SPACER (6.5X12X22.5)

09180-06316

$5.75

7

BOLT

07130-0645B

$4.45

8

NUT

08319-3106B

$2.47

9

CAP ASSY, SPARK PLUG

33510-35G00

$45.01

10

CONTROL UNIT,FI | MODEL K6/K7 This part replaces 32920-45G01.

32920-45G02

$726.82

11

CONTROL UNIT, FI | MODEL K8

32920-45G10

$726.82

11

CONTROL UNIT,FI | MODEL K9 This part replaces 32920-45G20.

32920-45G21

$726.82

12

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31
