2009 Suzuki LT-R450 Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 2009 Suzuki LT-R450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

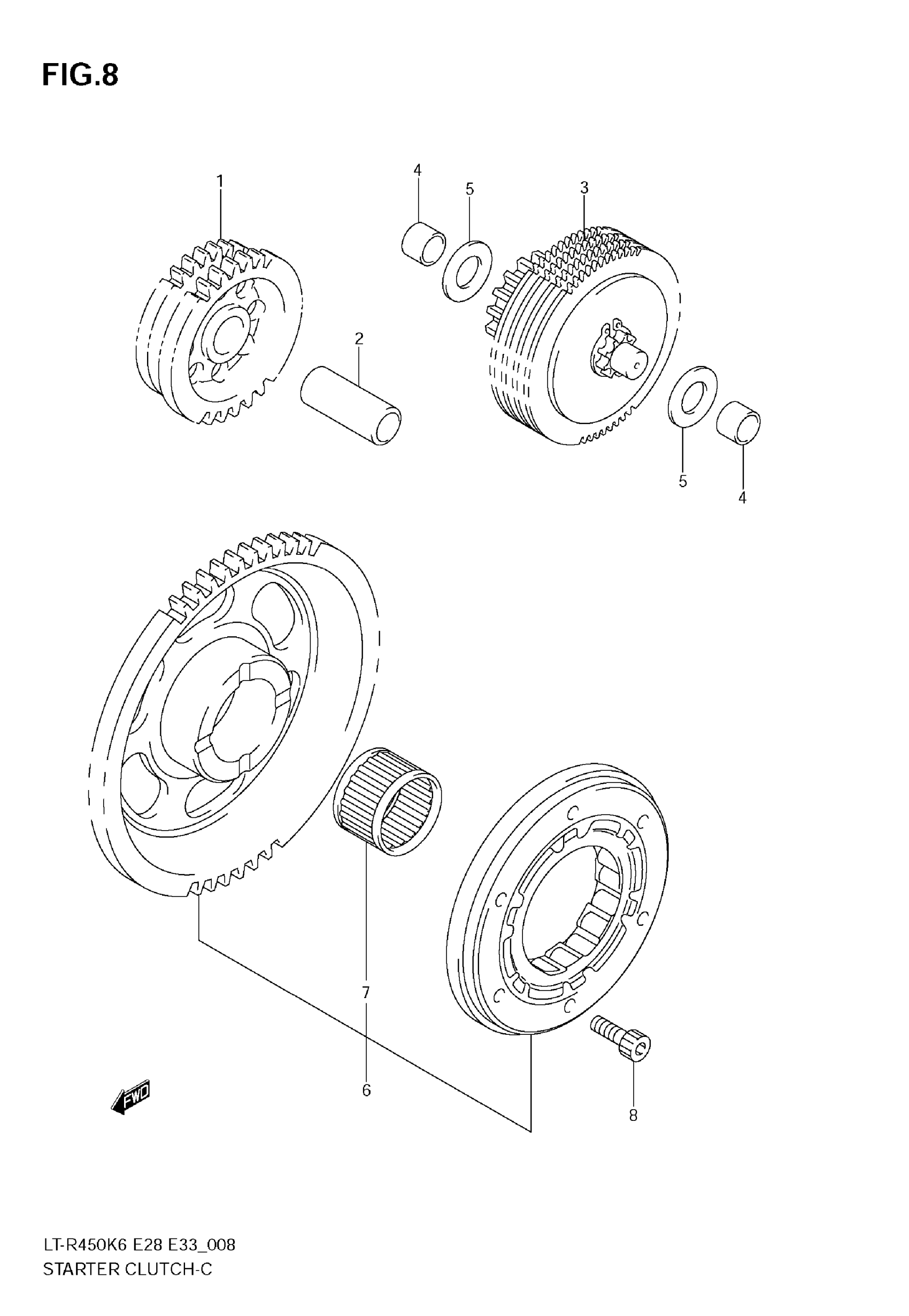

2009 Suzuki LT-R450 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$105.51

In stock

2

PIN

09206-12007

1

$6.74

In stock

3

1

$339.90

In stock

4

BUSH

12618-31G00

2

$4.02

In stock

5

WASHER

08211-10221

2

$2.43

In stock

6

1

$239.60

In stock

7

BEARING (24X33X17)

09263-24012

1

$48.52

In stock

8

BOLT

09106-06073

6
Out of stock
