2009 Suzuki LT-R450 Battery Holder Diagram

← All diagrams

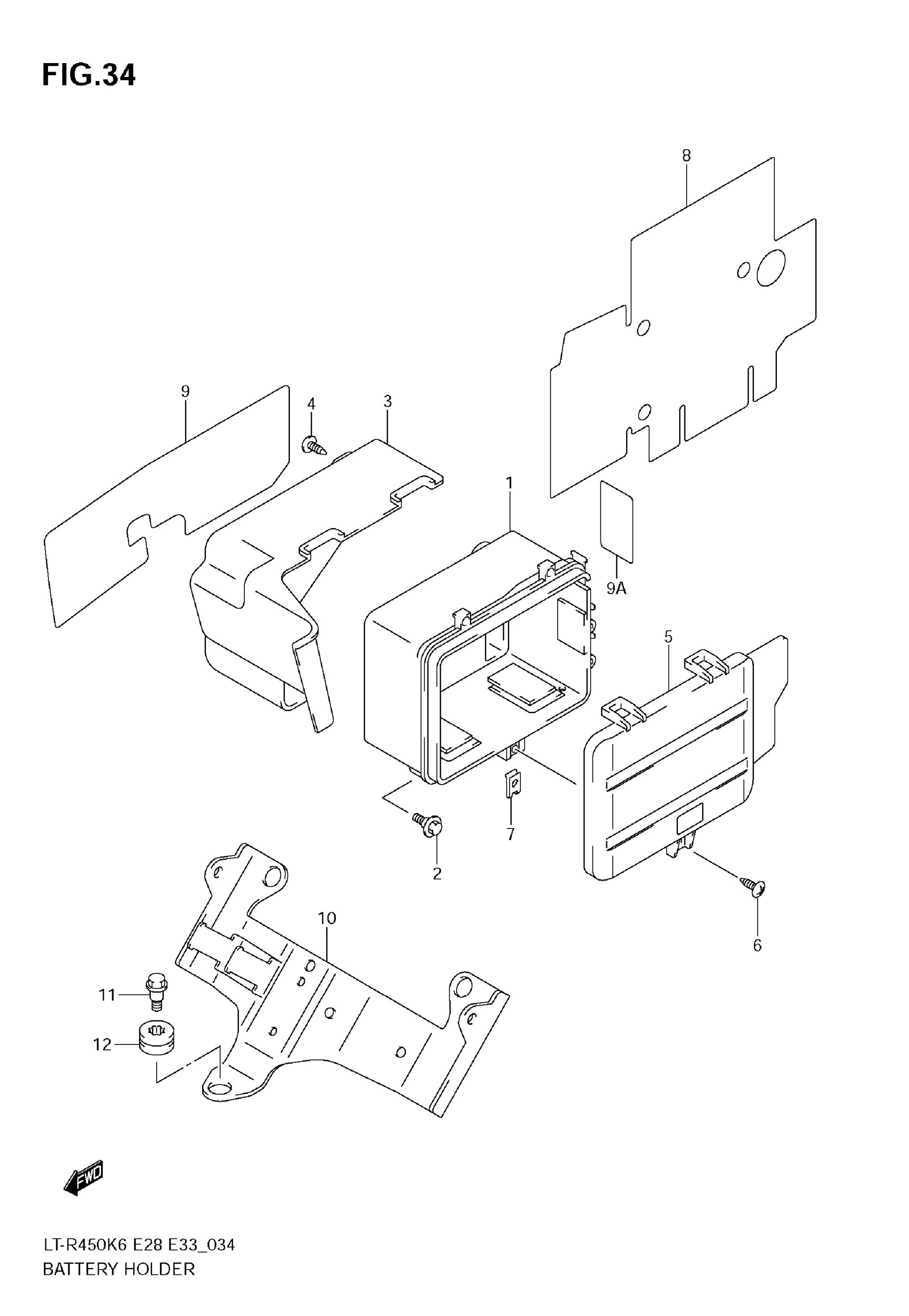

Find the part on the Battery Holder diagram for your 2009 Suzuki LT-R450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-R450 Battery Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, BATTERY

41540-45G00

1
Out of stock

2

BOLT

09111-06072

3
Out of stock

3

PROTECTOR

41547-45G00

1
Out of stock

4

SCREW

03541-0410A

3
Out of stock

5

COVER, HOLDER

41561-45G00

1
Out of stock

6

SCREW

03541-0516A

1
Out of stock

7

NUT

09148-05038

1
Out of stock

8

SHIELD, HOLDER NO.1 | MODEL K6/K7

41579-45G00

1
Out of stock

8

SHIELD, HOLDER NO.1 | MODEL K8/K9

41579-45G10

—
Out of stock

9

SHIELD, PROTECTOR

41548-45G00

1
Out of stock

9A

SHIELD, HOLDER NO.2 | MODEL K9

41549-45G00

1
Out of stock

10

HOLDER, ELECTRIC PARTS | MODEL K6/K7 This part replaces 47410-45G00.

47410-45G10

1
Out of stock

10

HOLDER, ELECTRIC PARTS | MODEL K8/K9

47410-45G10

1
Out of stock

11

.BOLT (6X20.6) | MODEL K6/K7 This part replaces 09111-06079-A05.

09111-06079

3
Out of stock

11

BOLT | MODEL K8/K9

09111-06092

3
Out of stock

12

CUSHION | MODEL K6/K7

09320-08053

3
Out of stock

12

CUSHION | MODEL K8/K9

09320-08077

3
Out of stock
