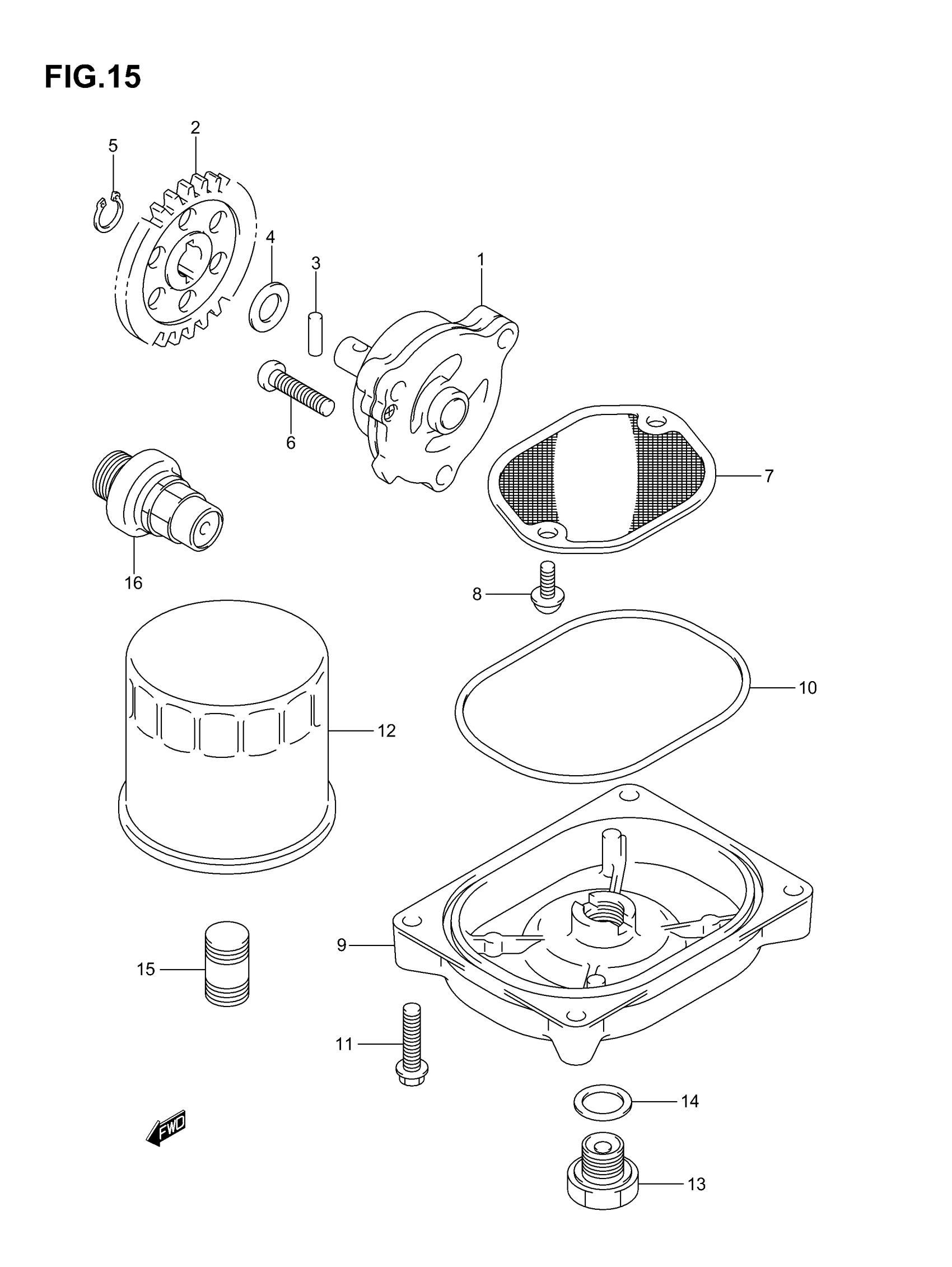

Suzuki LT-F500F (2007) OIL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL

16400-44D00

Unavailable

2

GEAR, DRIVEN (NT:29)

16331-02F00

$78.32

3

PIN

09261-04009

$1.50

4

WASHER

09181-10158

$1.97

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.77

6

SCREW

09125-06035

$2.43

7

STRAINER,ENGINE OIL This part replaces 16520-24500.

16520-27H00

$8.54

8

SCREW This part replaces 02112-75123.

02112-7512A

$2.43

9

CAP, OIL STRAINER

16523-24501

$24.63

10

O RING

16528-24500

$10.01

11

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

12

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$11.99

13

PLUG (MAGNETO)

09247-14002

$4.73

14

GASKET

09168-14002

$2.83

15

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

16

VALVE ASSY, OIL RELIEF

16440-17C10

$75.95
