2007 Suzuki LT-F500F Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2007 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

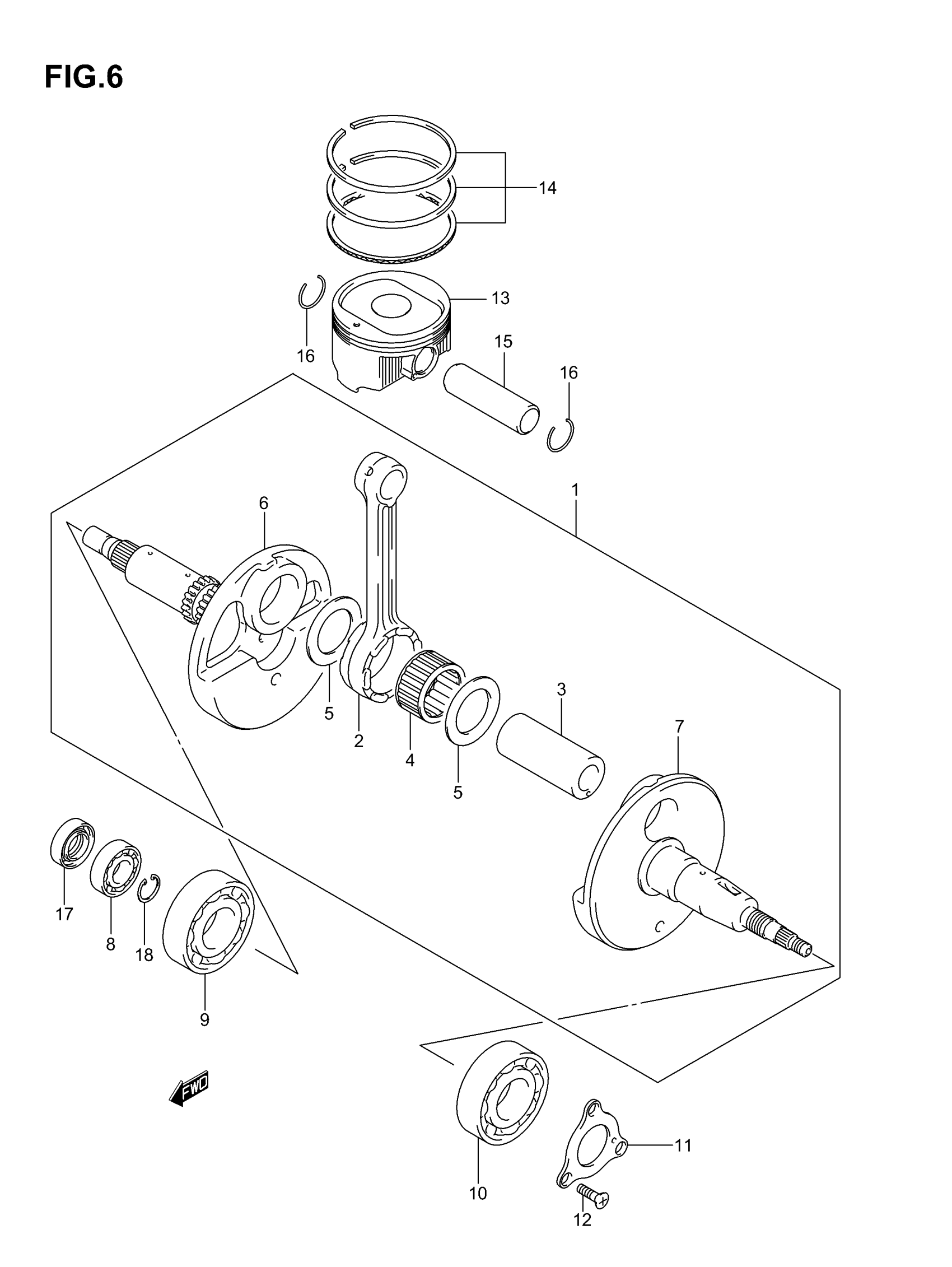

2007 Suzuki LT-F500F Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET | Includes Item(s) 2 - 7

12000-03870

1
Out of stock

2

ROD, CONNECTING

12161-32E00

1

$177.00

In stock

3

PIN, CRANK

12210-24B01-0A0

1
Out of stock

4

BEARING (37X47X24.8)

09263-37007

1
Out of stock

5

WASHER (37X55X1)

09160-37006

2

$11.52

In stock

6

CRANKSHAFT SET, RH

12220-03870

1
Out of stock

7

CRANKSHAFT, LH

12261-03G00

1
Out of stock

8

1

$20.55

In stock

9

1

$87.28

In stock

10

1

$95.12

In stock

11

RETAINER, OIL SEAL LH

12541-46510

1

$9.90

In stock

12

SCREW (6X12)

09126-06011

3
Out of stock

13

PISTON

12111-03G10-0F0

1
Out of stock

14

RING SET, PISTON

12140-03G10

1

$75.00

In stock

15

PIN

12151-09F00

1

$25.23

In stock

16

CIRCLIP

09381-23003

2

$1.76

In stock

17

SEAL, OIL

09282-17010

1
Out of stock

18

CIRCLIP

08331-41406

1

$2.28

In stock
