2007 Suzuki LT-F500F Crank Balancer Diagram

← All diagrams

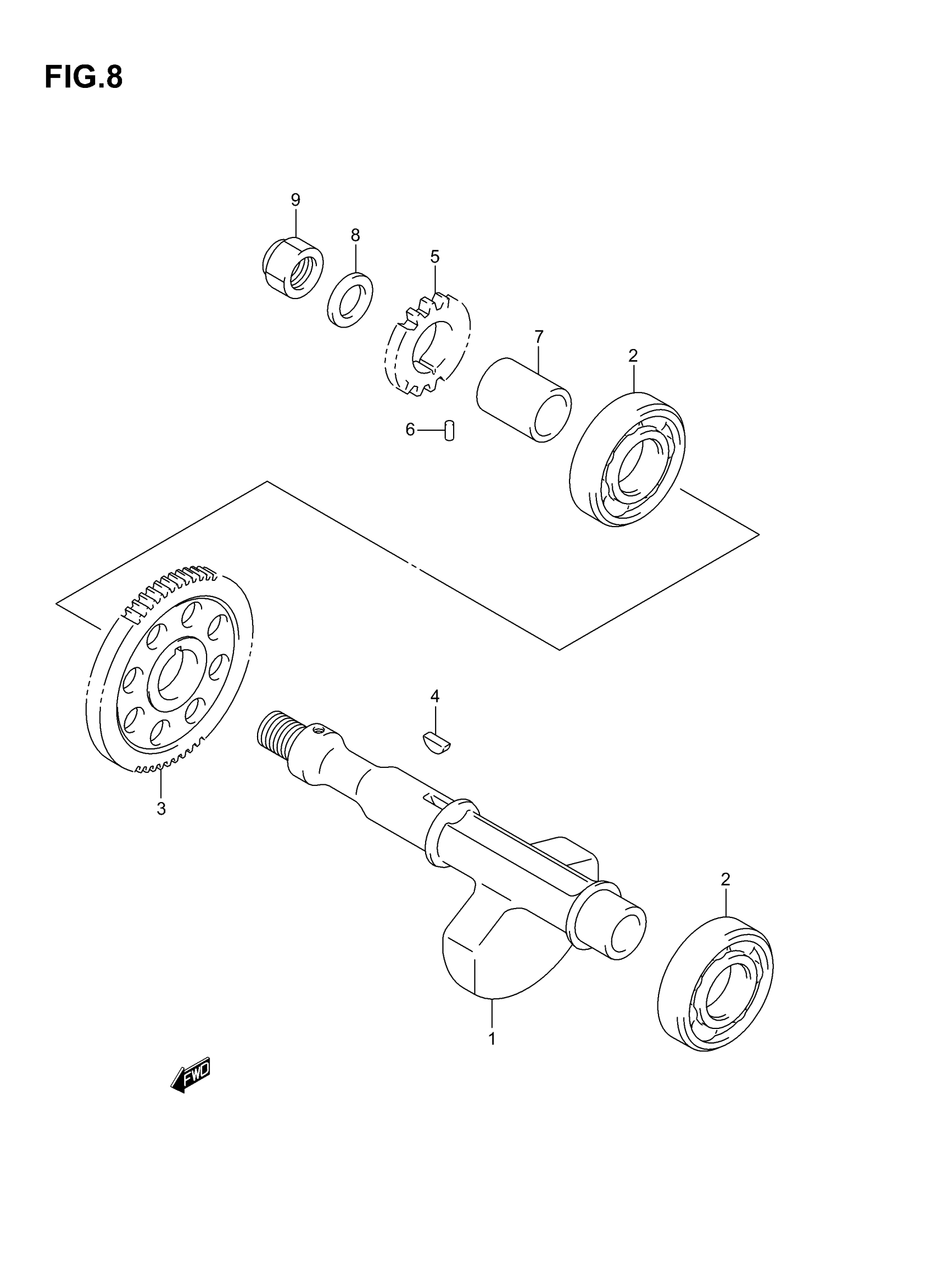

Find the part on the Crank Balancer diagram for your 2007 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-F500F Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12651-09F00

1
Out of stock

2

BEARING (22X56X16)

09262-22029

2
Out of stock

3

GEAR, DRIVEN

12666-03G10

1
Out of stock

4

KEY

09420-04008

1
Out of stock

5

GEAR, OIL PUMP DRIVE (NT:20)

16321-44D01

1
Out of stock

6

PIN (4X13.8)

04221-04089

1
Out of stock

7

SPACER, DRIVE GEAR

16322-44D00

1
Out of stock

8

WASHER, DRIVE GEAR

09160-16029

1

$6.90

In stock

9

NUT

09159-16003

1
Out of stock
