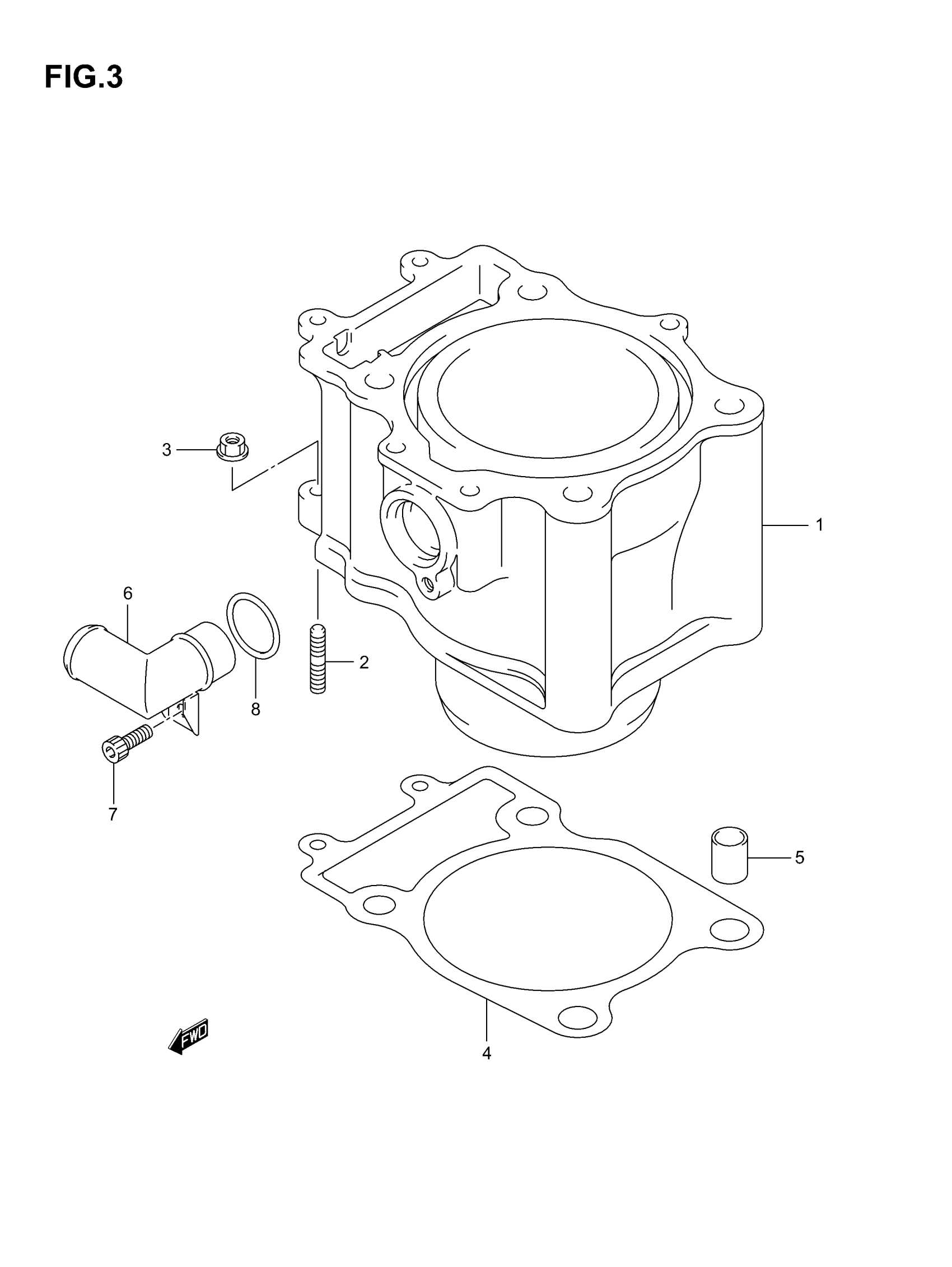

Suzuki LT-F500F (2007) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL K4/K5/K6 This part replaces 11211-03G00-0F0.

11211-03G10-0F0

$1,146.85

1

CYLINDER | MODEL K7

11211-03G10-0F0

$1,146.85

2

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.97

3

NUT This part replaces 08316-10063.

08316-1006B

$2.57

4

GASKET, CYLINDER

11241-09F00

$15.77

5

PIN

04211-13189

$2.25

6

UNION, WATER HOSE

17857-44D00

Unavailable

7

BOLT This part replaces 07130-06123.

07130-0612A

$2.58

8

O RING (D:2.7,ID:21.4)

09280-21015

$2.80
