2002 Suzuki LT-F500F Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

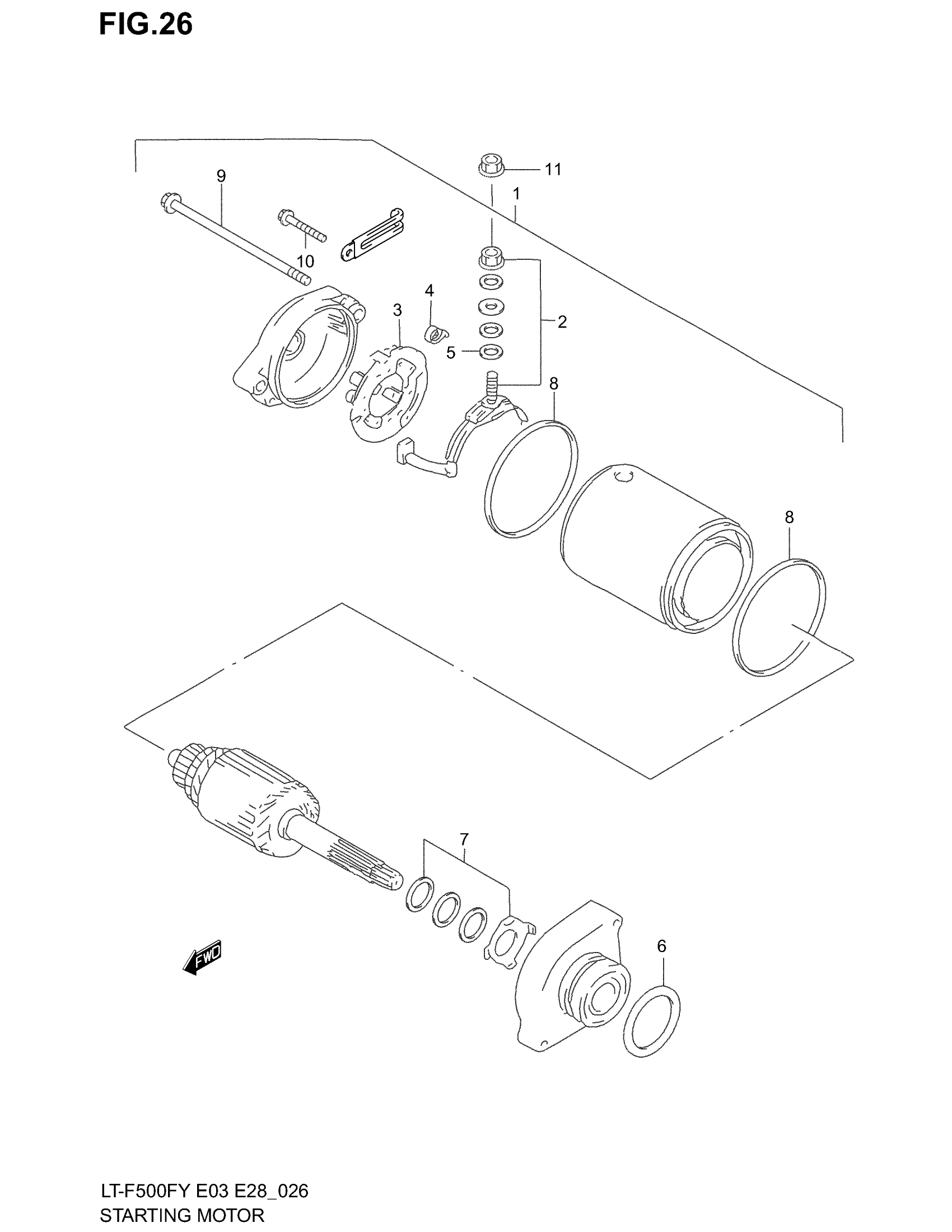

2002 Suzuki LT-F500F Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STARTING | MODEL W/X

31100-32E01

1
Out of stock

1

MOTOR ASSY, STARTING | MODEL Y ~F.NO.2101092 This part replaces 31100-44D10.

31100-44D21

1
Out of stock

1

MOTOR ASSY, STARTING | MODEL Y F.NO.2101093~ This part replaces 31100-44D20.

31100-44D21

1
Out of stock

1

MOTOR ASSY, STARTING | MODEL K1/K2; Includes Item(s) 2 - 9 This part replaces 31100-44D20.

31100-44D21

1
Out of stock

2

TERMINAL SET, BRUSH

31130-38B00

1
Out of stock

3

HOLDER SET, BRUSH

31132-38B00

1
Out of stock

4

SPRING, BRUSH

31135-38B00

4
Out of stock

5

O RING

31143-49040

1
Out of stock

6

O RING

31156-48B00

1
Out of stock

7

WASHER SET

31170-32E00

1
Out of stock

8

2

$6.85

In stock

9

BOLT

31280-26D00

2
Out of stock

10

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

2
Out of stock

11

NUT This part replaces 08361-35068.

08361-3506A

1
Out of stock
