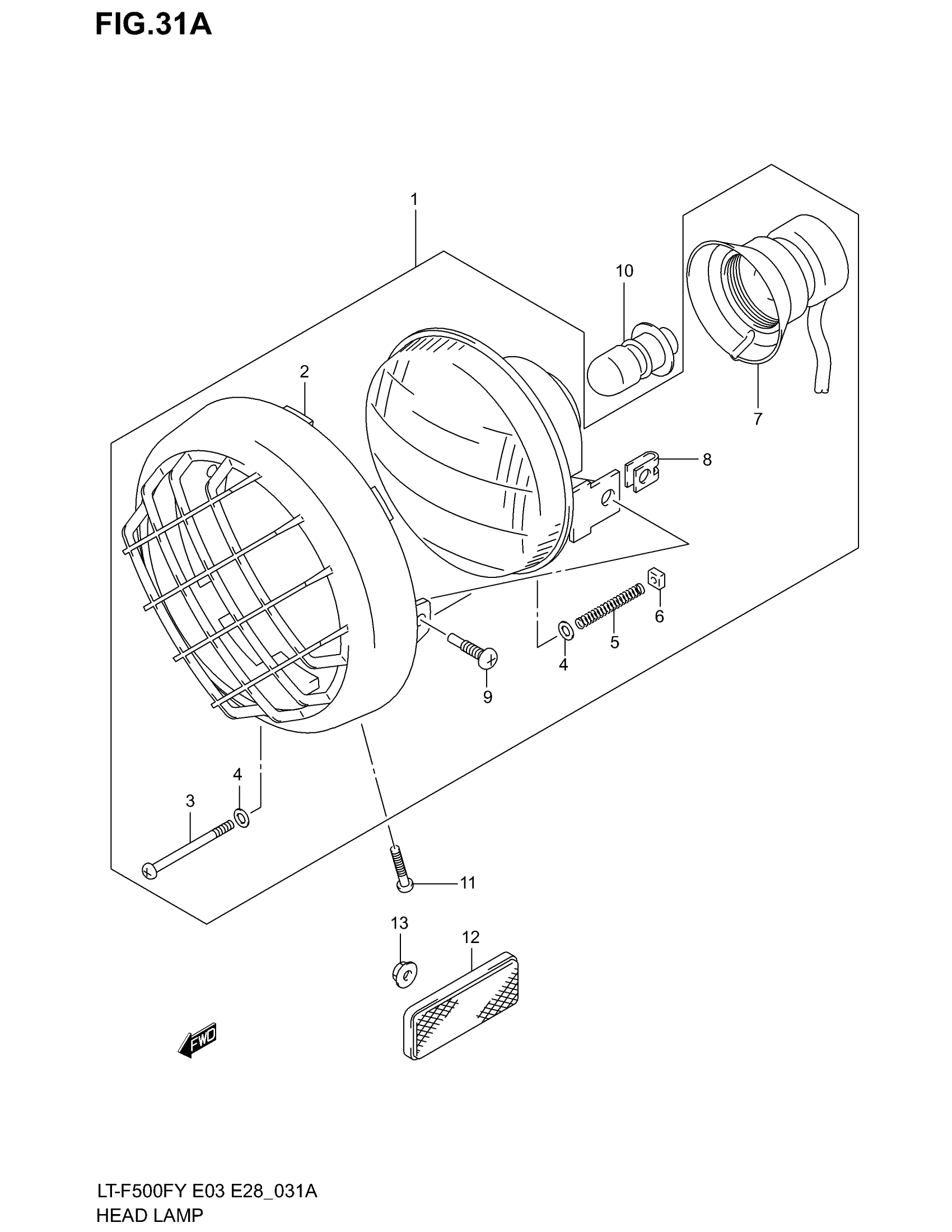

Suzuki LT-F500F (2002) HEADLAMP (MODEL Y/K1/K2) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-09F20-999

Unavailable

2

RIM

35127-09F20

Unavailable

3

SCREW, ADJUST

35151-09F20

Unavailable

4

WASHER

35138-09F20

Unavailable

5

SPRING

35154-09F00

Unavailable

6

NUT

35155-09F00

Unavailable

7

CORD ASSY

35171-09F20

$44.78

8

NUT

35157-09F20

Unavailable

9

SCREW

35181-09F20

Unavailable

10

BULB (12V,30/30W) This part replaces 09471-12168.

09471-12093

$26.51

11

SCREW This part replaces 02112-35163.

02112-3516A

$2.65

12

REFLEX REFLECTOR ASSY, FR | E28

35950-43431

$20.13

13

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19
