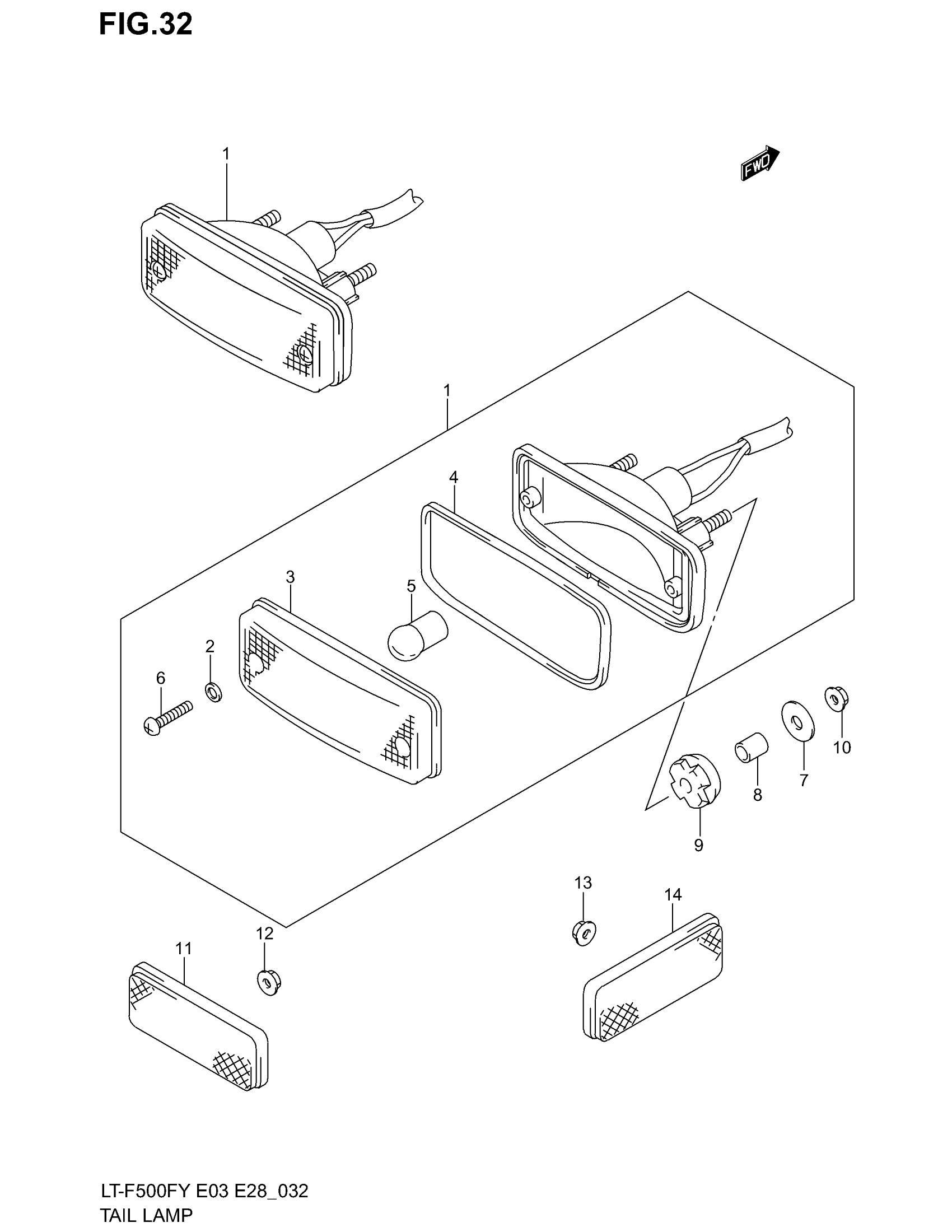

Suzuki LT-F500F (2002) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | MODEL W/X/Y

35710-41B02

Unavailable

1

LAMP ASSY, TAIL | MODEL K1/K2; Includes Item(s) 2 - 6

35710-02C00

$124.50

2

GASKET

35627-43010

$2.29

3

LENS

35712-18A32

$51.14

4

GASKET

35713-18A30

$10.92

5

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

6

SCREW This part replaces 03211-04163.

03211-0416A

$1.43

7

.WASHER (6.5X20X1.6)

09160-06088

$1.67

8

SPACER (6.5X10X12)

09180-06290

$2.01

9

CUSHION

09320-09010

$2.80

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

$19.11

12

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19

13

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

$19.11

14

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19
