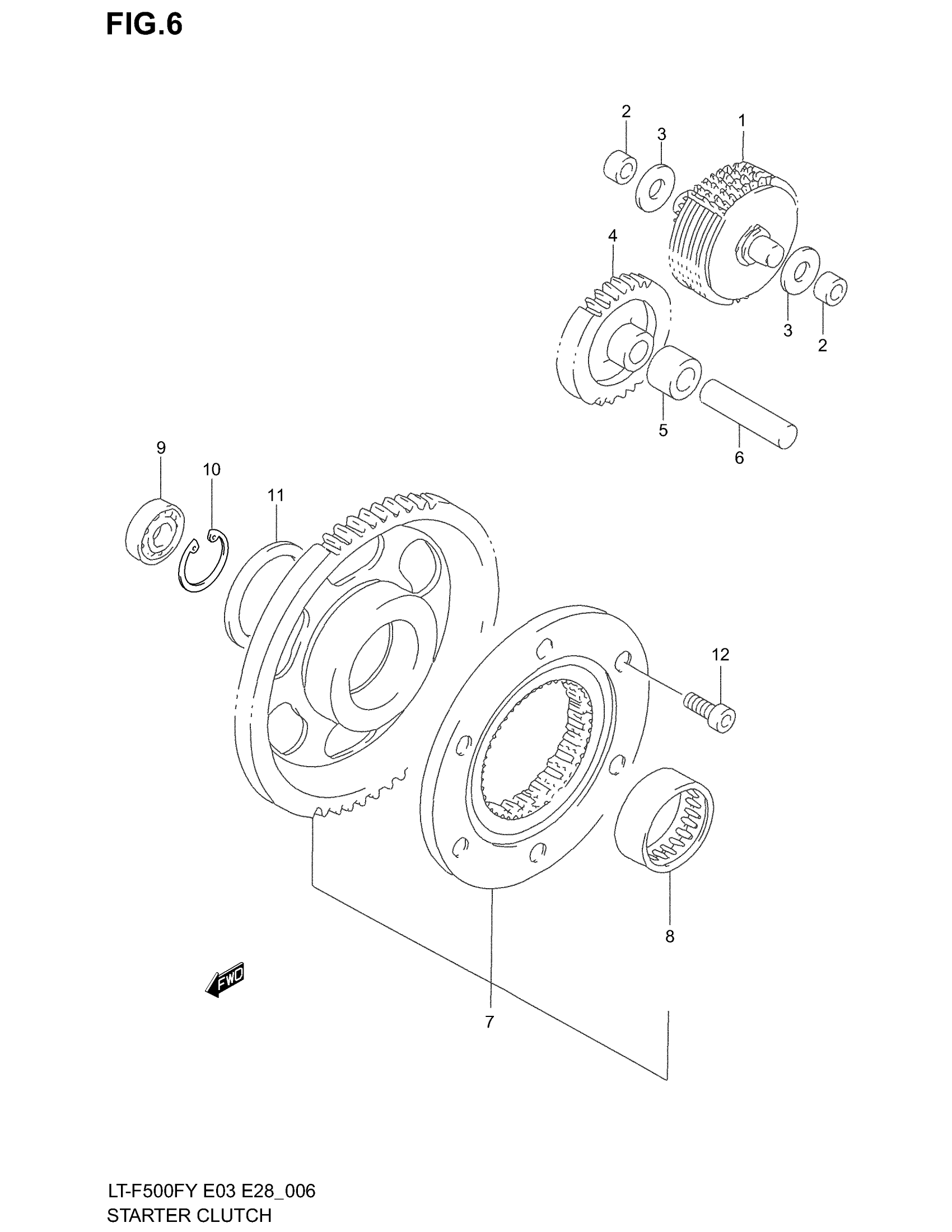

Suzuki LT-F500F (2002) STARTER CLUTCH (MODEL W/X) Diagram

#

Description

Price

1

LIMITER ASSY, IDLE GEAR

12600-44D00

Unavailable

2

BUSH LIMITER GEAR SHAFT

12618-31D01

$20.70

3

WASHER

08211-10221

$1.97

4

GEAR, STARTER IDLE (NT:27)

12612-09F00

$65.69

5

SPACER

09180-12018

$7.28

6

PIN This part replaces 09202-12002.

09206-12006

$8.64

7

CLUTCH SET, STARTER | Includes Item(s) 8

12600-09860

$386.90

8

BEARING (31X39X17.8)

09263-31009

$51.08

9

BEARING, PINION SHAFT

09262-12001

$16.90

10

CIRCLIP This part replaces 08331-41286.

08331-41289

$2.92

11

WASHER

08211-35505

$9.90

12

BOLT This part replaces 07130-08203.

07130-0820B

$3.19
