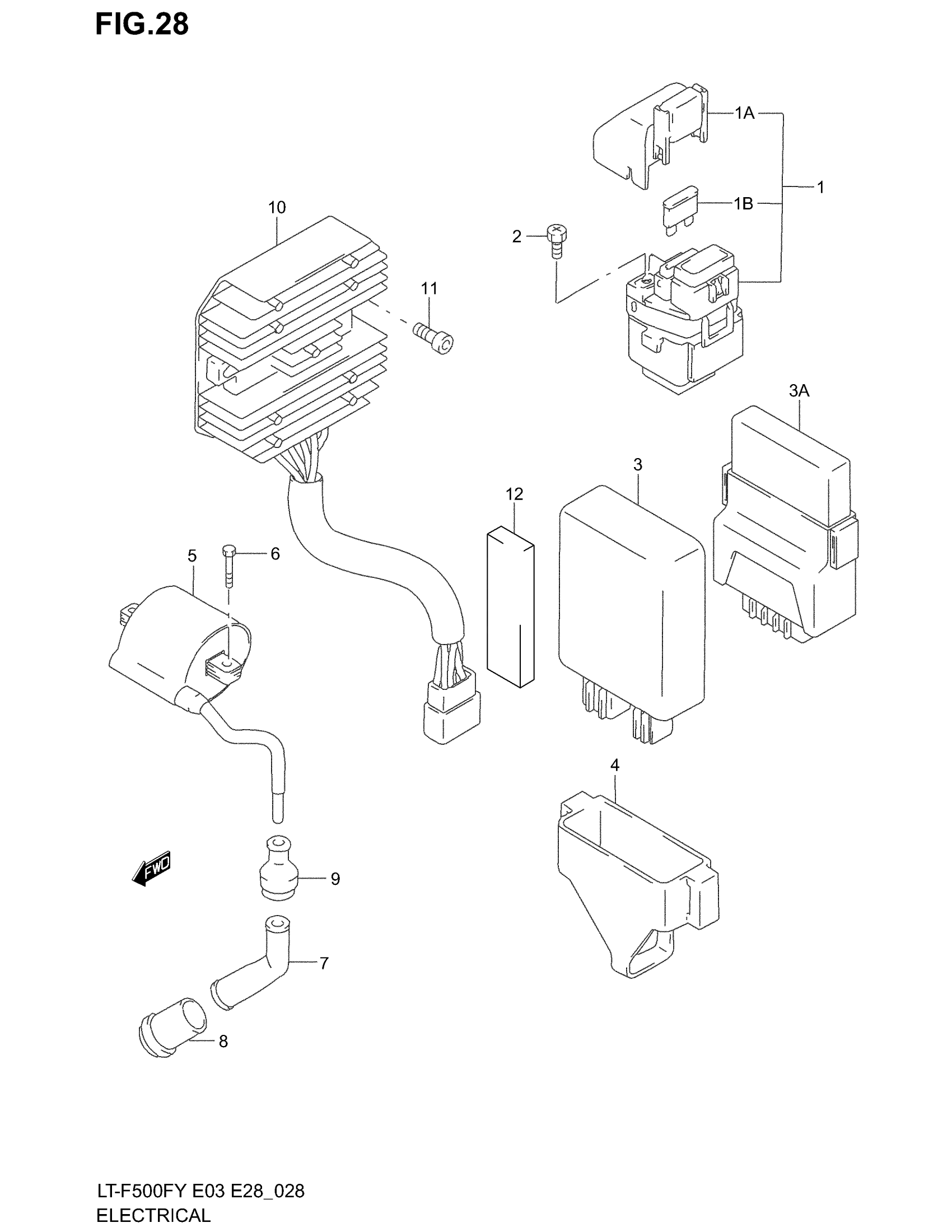

Suzuki LT-F500F (2002) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 1A - 1B

31800-26E00

$89.07

1A

COVER, STARTER RELAY

31861-26E00

$3.92

1B

FUSE, 30A

09481-30101

$2.28

2

BOLT, STG MOT TERM

09128-06013

$1.24

3

CDI UNIT | MODEL W/X/Y

32900-09F00

Unavailable

3

CDI UNIT | MODEL K1

32900-09F30

Unavailable

3A

CDI UNIT | MODEL K2

32900-09F50

Unavailable

4

CUSHION, IGNITER

32980-24B00

$13.10

5

COIL ASSY, IGNITION

33410-09F00

$87.46

6

SCREW | MODEL W/X This part replaces 02112-06203.

02112-0620A

$1.45

6

BOLT | MODEL Y/K1/K2 This part replaces 01550-06203.

01550-0620A

$1.97

7

CAP, SPARK PLUG

33510-43010

$22.88

8

SEAL, SPARK PLUG

33541-44D00

$4.85

9

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

10

RECTIFIER ASSY | MODEL W/X This part replaces 32800-33E00.

32800-44D11

$354.87

10

RECTIFIER ASSY | MODEL Y This part replaces 32800-44D20.

32800-44D21

Unavailable

10

RECTIFIER ASSY | MODEL K1/K2 This part replaces 32800-44D30.

32800-44D31

$356.60

11

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

12

CUSHION, REAR FENDER REAR This part replaces 33652-28000.

33651-37000

$4.09
