2002 Suzuki LT-F300F Recoil Starter Diagram

← All diagrams

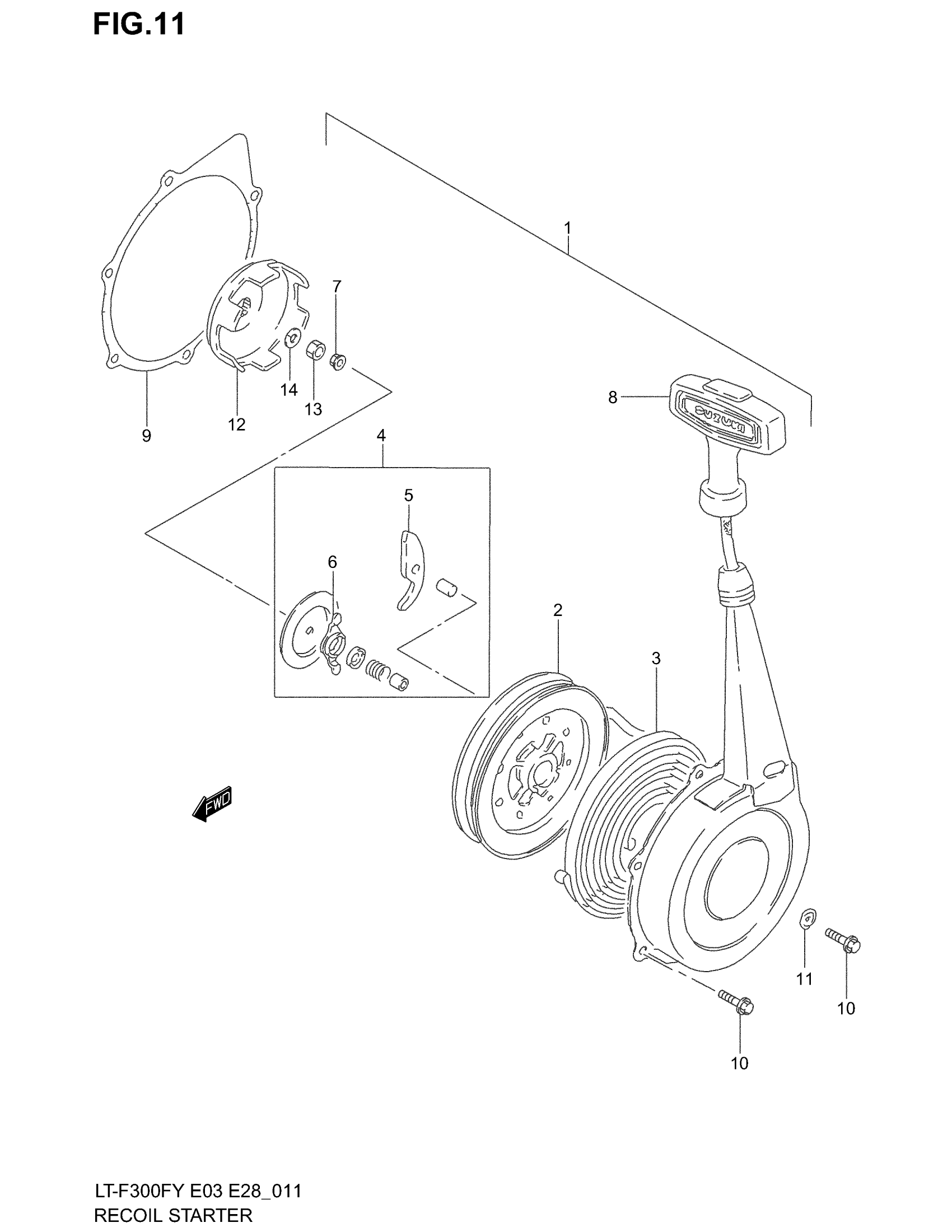

Find the part on the Recoil Starter diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F300F Recoil Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

REEL

18120-24400

1

$36.85

In stock

3

.SPRING,SPIRAL

18142-24400

1
Out of stock

4

RATCHET SET

18130-24400

1
Out of stock

5

RATCHET

18131-24411

1
Out of stock

6

..GUIDE,RATCHET

18132-24400

1
Out of stock

7

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

8

ROPE ASSY

18200-19B01

1

$45.62

In stock

9

1

$6.97

In stock

10

6

$1.31

In stock

10

BOLT | MODEL K2

09103-06236

6

$2.92

In stock

11

GASKET

09168-06023

1
Out of stock

12

CUP, STARTER

18410-19B01

1
Out of stock

13

1

$2.02

In stock

14

1

$2.02

In stock
