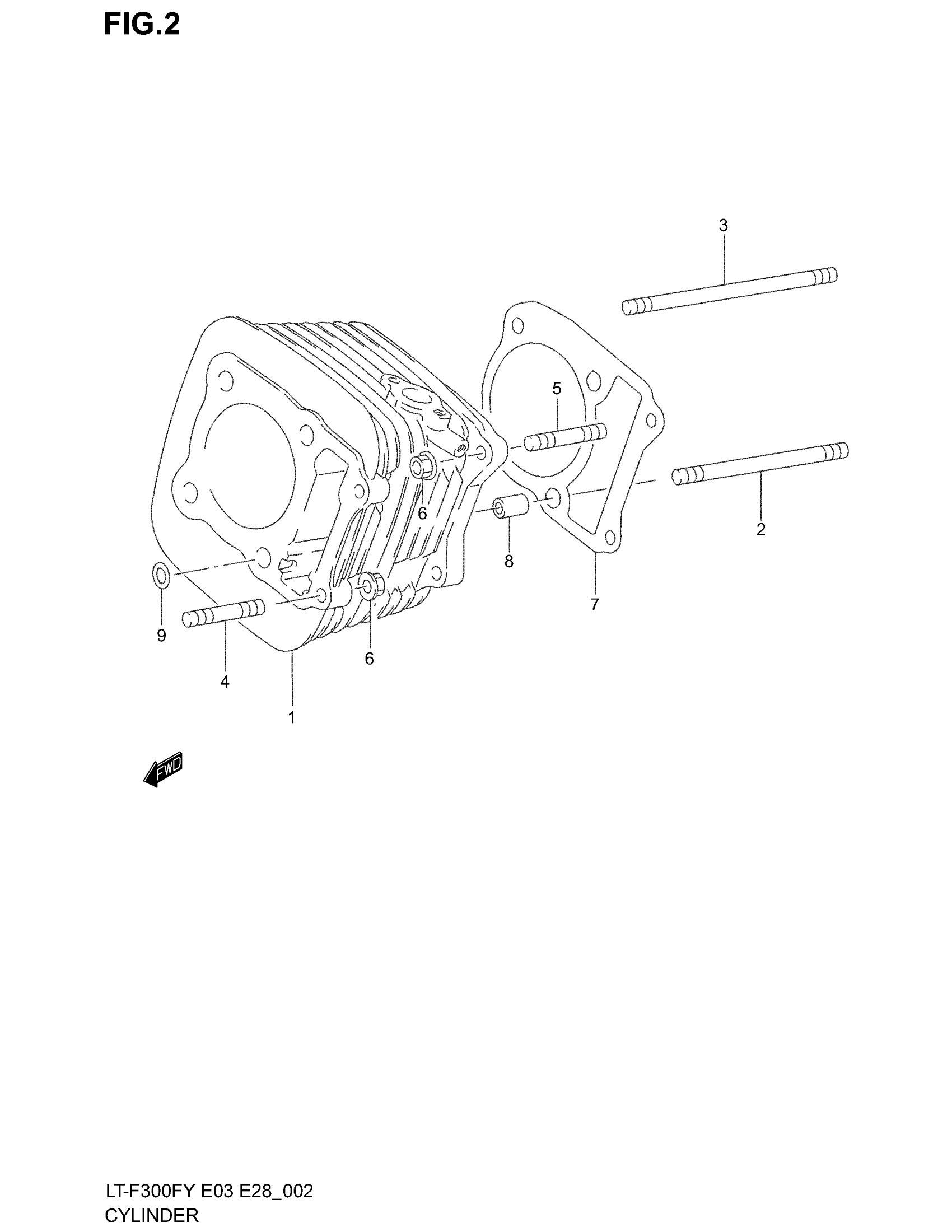

Suzuki LT-F300F (2002) CYLINDER Diagram

CYLINDER | MODEL X/Y

11210-19B82-0F0

Unavailable

CYLINDER | MODEL K1/K2

11210-19B90-0F0

$569.33

STUD BOLT (L:170)

09108-08229

$9.62

STUD BOLT (L:175)

09108-08230

$10.67

STUD BOLT This part replaces 01421-06253.

01421-0625A

$2.00

STUD BOLT (L:22)

09108-06002

$2.43

NUT This part replaces 08316-10063.

08316-1006B

$2.50

GASKET, CYLINDER

11241-19B82

$21.03

PIN

04211-11149

$1.77

O RING (D:2.8,ID:4.8)

09280-05008

$2.50
