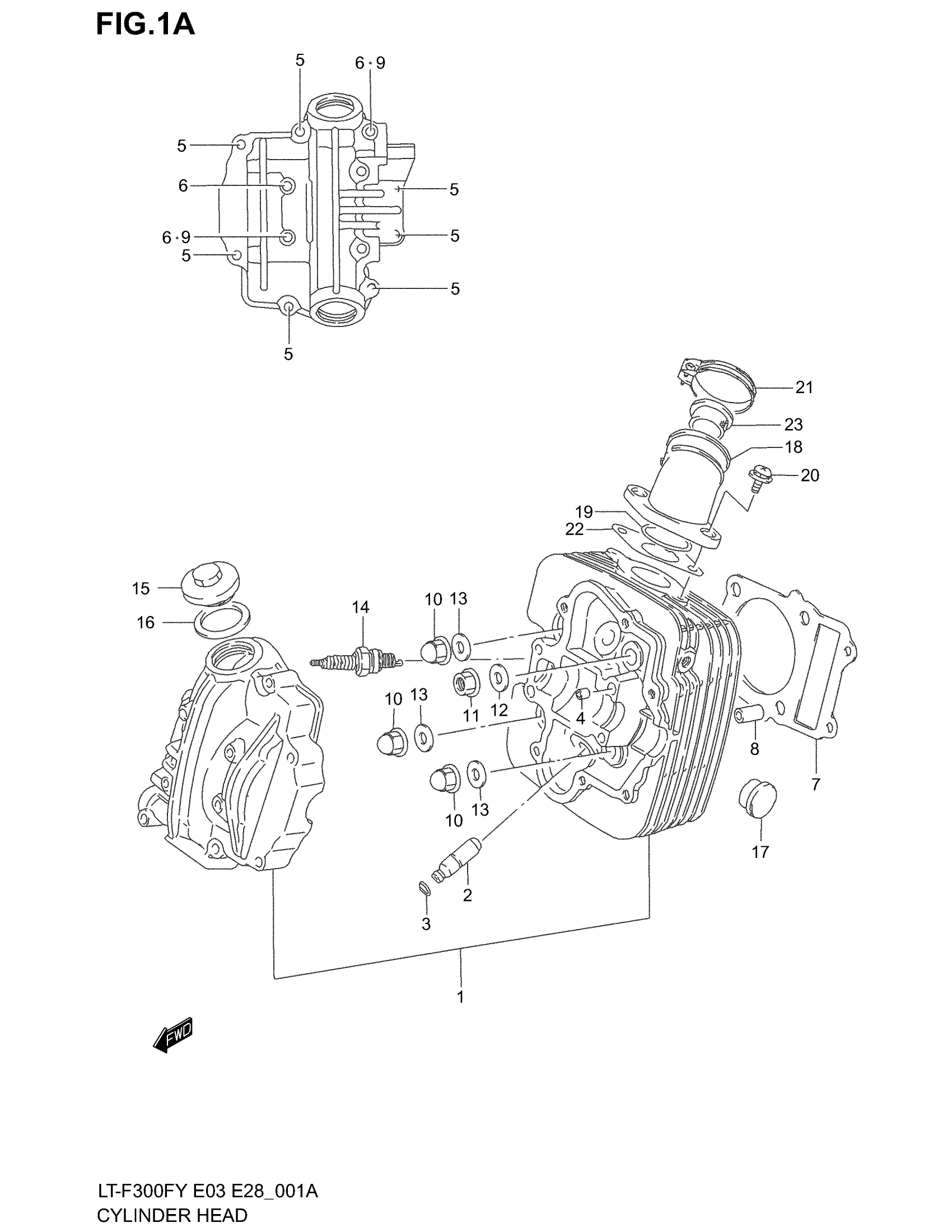

2002 Suzuki LT-F300F Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F300F Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$965.77

In stock

2

GUIDE, VALVE (0S:0.3)

11115-05270

2

$32.91

In stock

3

.RING (10X85)

09381-10004

2
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT This part replaces 01550-06353.

01550-0635A

7
Out of stock

6

3

$3.02

In stock

7

GASKET, CYLINDER HEAD

11141-25C04

1

$19.91

In stock

8

PIN

04211-11169

2

$1.90

In stock

9

GASKET

09168-06023

2
Out of stock

10

NUT

09159-08049

3

$4.55

In stock

11

1

$2.85

In stock

12

GASKET

09168-08021

1

$2.78

In stock

13

GASKET (8.5X17X2.3)

09168-08021

3

$2.78

In stock

14

1

$2.92

In stock

14

1

$5.30

In stock

15

CAP INSPECTION This part replaces 11175-18900.

11175-18920

2
Out of stock

16

.O RING (D:3,ID:29.5)

09280-30001

2

$1.77

In stock

17

PLUG, HEAD

09241-22002

1

$5.07

In stock

18

1

$130.77

In stock

19

1

$8.77

In stock

20

2

$2.92

In stock

21

CLAMP

09402-50208

1

$4.64

In stock

22

GASKET, INTAKE PIPE

13120-19B01

1

$4.70

In stock

23

NET, INTAKE | MODEL X

13130-19B50

1
Out of stock
← Cylinder Gasket Set →
