2002 Suzuki LT-F300F Oil Cooler Diagram

← All diagrams

Find the part on the Oil Cooler diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

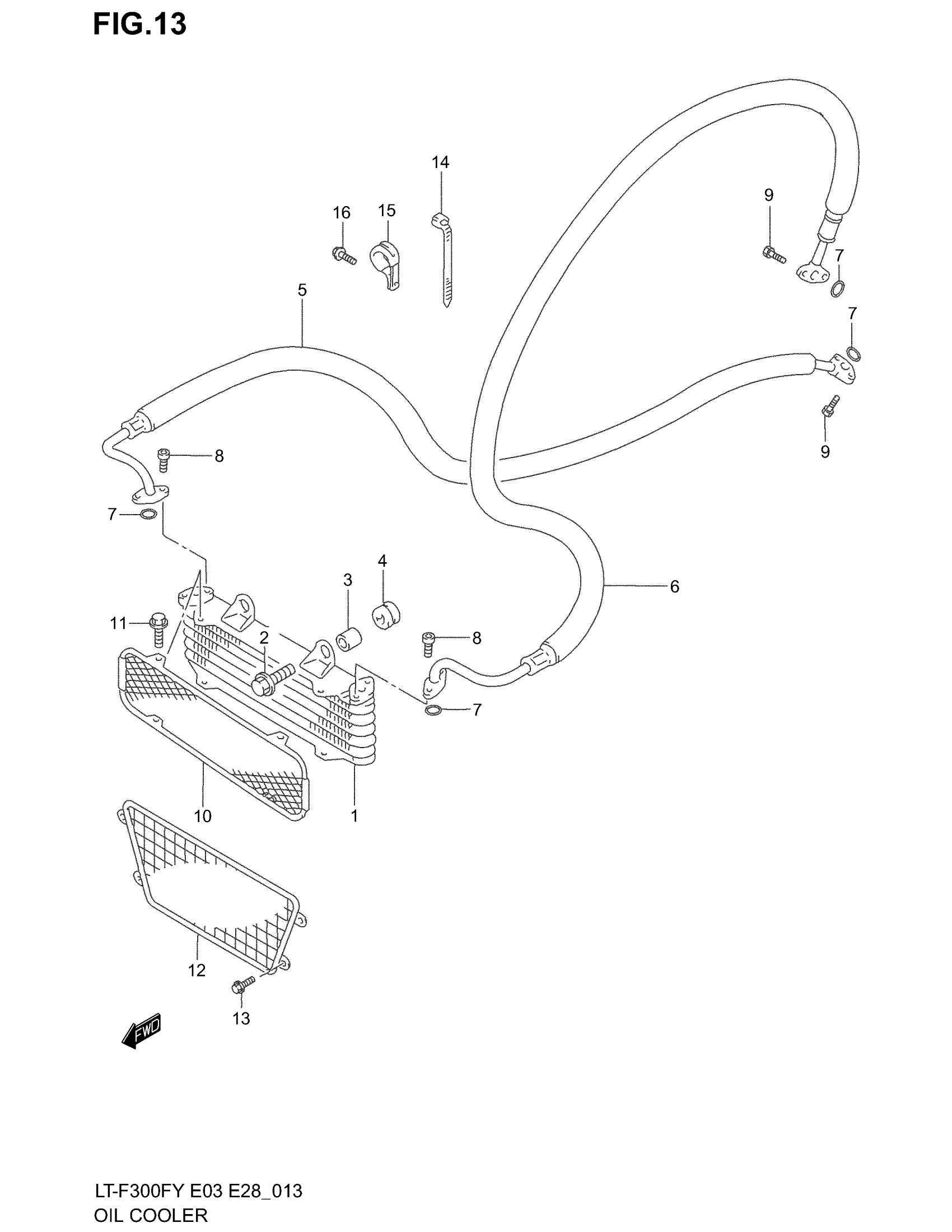

2002 Suzuki LT-F300F Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COOLER ASSY, OIL | MODEL X/Y

16600-19B00

1
Out of stock

1

COOLER ASSY, OIL | MODEL K1/K2

16600-39D00

1
Out of stock

2

BOLT (6X20) | MODEL X This part replaces 09116-06143.

09116-06115

4
Out of stock

2

BOLT (6X20) | MODEL Y

09116-06115

4
Out of stock

2

BOLT (6X20) | MODEL K1

09116-06115

3
Out of stock

2

BOLT (6X20) | MODEL K2

09116-06167

3
Out of stock

3

SPACER (6.5X10X10) | MODEL X/Y

09180-06310

4
Out of stock

3

SPACER (6.5X10X10) | MODEL K1/K2

09180-06310

3
Out of stock

4

CUSHION | MODEL X/Y

09320-10015

4
Out of stock

4

CUSHION | MODEL K1/K2

09320-10015

3
Out of stock

5

HOSE,OIL COOLER | MODEL X/Y This part replaces 16460-19B00.

16460-19B11

1
Out of stock

5

HOSE,OIL COOLER | MODEL K1/K2 This part replaces 16460-19B10.

16460-19B11

1
Out of stock

6

HOSE,OIL COOLER | MODEL X/Y This part replaces 16470-19B00.

16470-19B11

1
Out of stock

6

HOSE,OIL COOLER | MODEL K1/K2 This part replaces 16470-19B10.

16470-19B11

1
Out of stock

7

O RING (D:2.4,ID:12.3)

09280-12008

4
Out of stock

8

BOLT This part replaces 07130-06163.

07130-0616B

4
Out of stock

9

BOLT (6X16)

09106-06073

4
Out of stock

10

BUMPER, OIL COOLER

16650-44B00

1
Out of stock

11

SCREW This part replaces 02162-05103.

02162-0510A

4
Out of stock

12

GUARD, OIL COOLER

16640-19B10

1
Out of stock

13

BOLT This part replaces 01580-06123.

01580-0612A

4
Out of stock

14

CLAMP (L:235)

09407-25401

3
Out of stock

14

CLAMP (L:165)

09407-18402

4
Out of stock

15

CLAMP | MODEL X/Y

09403-26401

3
Out of stock

15

CLAMP | MODEL K1/K2

09403-26401

1
Out of stock

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock
