2002 Suzuki LT-F300F CAM Chain Diagram

← All diagrams

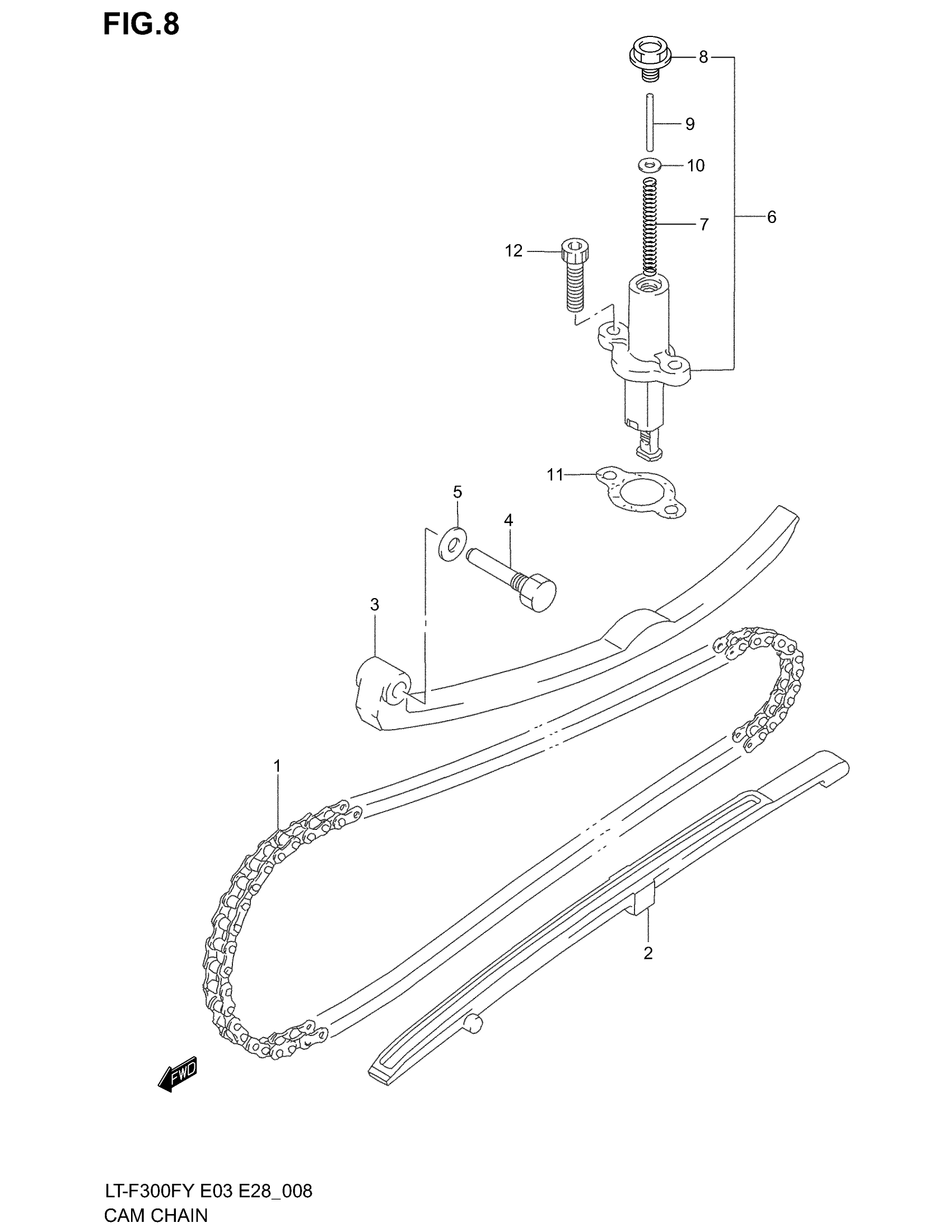

Find the part on the CAM Chain diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F300F CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM (108LE)

12760-19B71

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-19B70.

12771-19B71

1
Out of stock

3

TENSIONER,CAM C This part replaces 12811-19B70.

12811-19B71

1
Out of stock

4

BOLT

12812-32410

1
Out of stock

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 - 10

12830-19B02

1
Out of stock

7

SPRING

12833-19B00

1
Out of stock

8

PLUG

12834-19B00

1
Out of stock

9

BAR

12835-19B00

1
Out of stock

10

O RING

12832-02A00

1
Out of stock

11

.GASKET,TENSIONER ADJUSTER

12837-19B10

1
Out of stock

12

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

2
Out of stock
CAM Shaft - Valve →

More Engine diagrams
