1997 Suzuki LT-F250 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1997 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

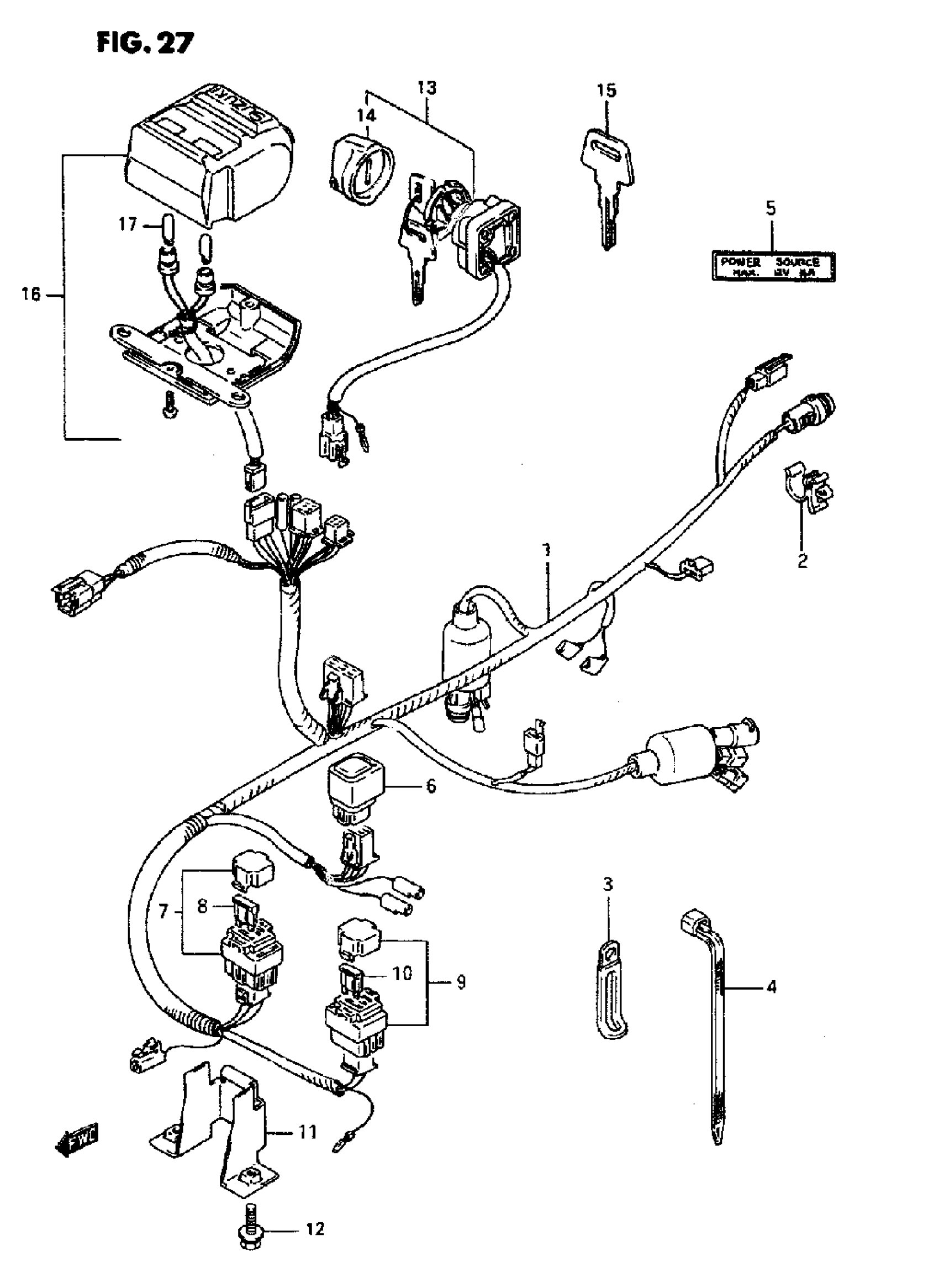

1997 Suzuki LT-F250 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS

36610-20B61

1
Out of stock

2

CLAW

09403-16307

2
Out of stock

3

CLAMP This part replaces 09404-06432.

09404-06039

1
Out of stock

4

CLAW (L:125)

09407-14403

3
Out of stock

4

CLAMP This part replaces 09407-18403.

09407-18402

9
Out of stock

5

LABEL, POWER SOURCE

38852-19B10

1
Out of stock

5

LABEL, POWER SOURCE | E28

38852-19B20

—
Out of stock

6

RELAY, NEUTRAL START

38730-19B00

1
Out of stock

7

BOX ASSY, MAIN FUSE

36740-04701

1
Out of stock

8

FUSE (15A)

09481-15101

1
Out of stock

9

BOX ASSY, POWER SOURCE FUSE

36740-04701

1
Out of stock

10

FUSE (15A)

09481-15101

1
Out of stock

11

HOLDER, ELECTRIC PARTS FRONT

47410-19B00

1
Out of stock

12

BOLT (6X12) This part replaces 09118-06103.

09118-06055

2
Out of stock

13

SWITCH ASSY,IGN This part replaces 37110-02C00.

37110-02C01

1
Out of stock

14

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

15

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

15

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 36380-35B01.

36380-35B0V

1
Out of stock

17

BULB (13.5V, 2W)

09471-12118

1
Out of stock
