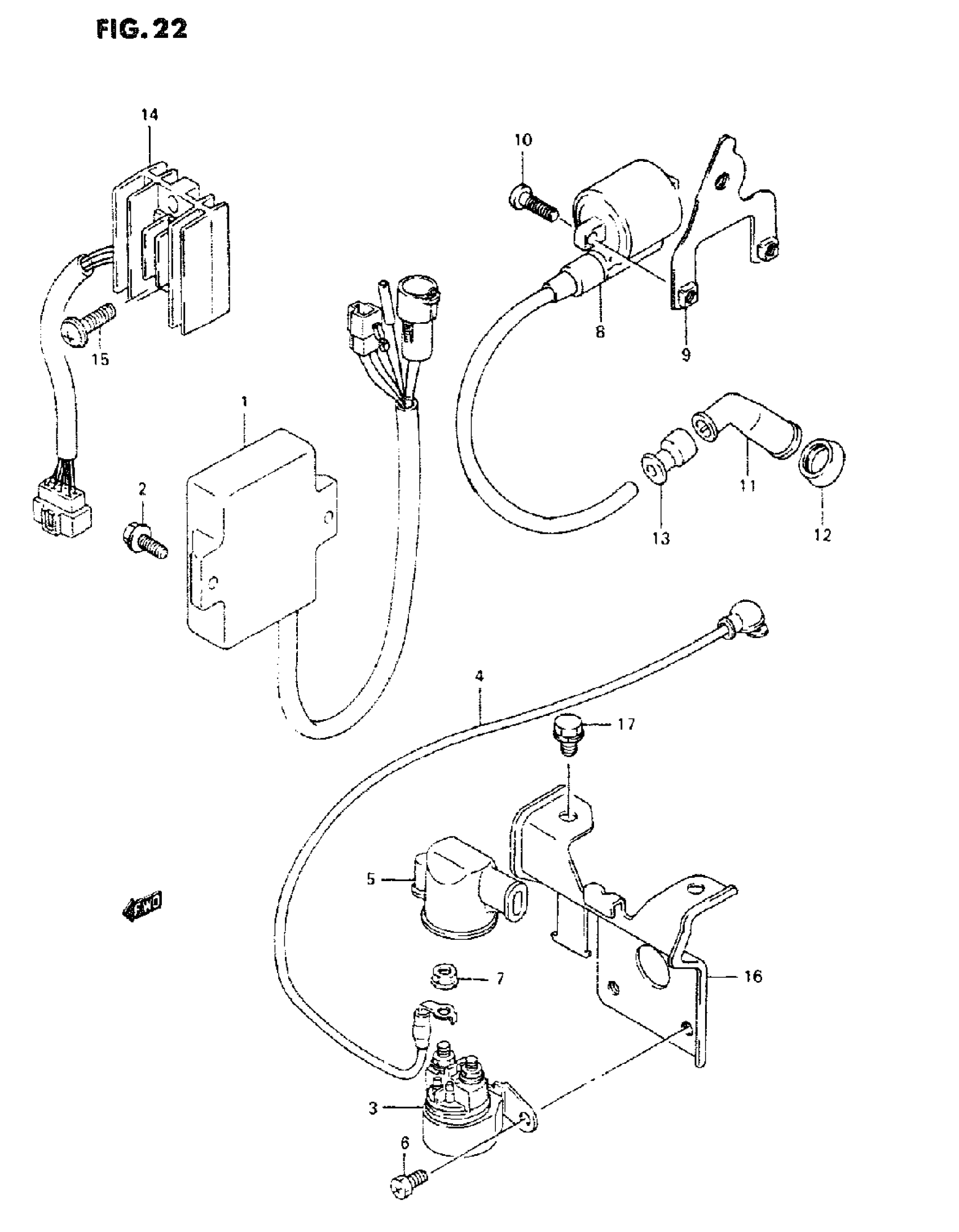

Suzuki LT-F250 (1997) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT

32900-19B50

Unavailable

2

BOLT This part replaces 01580-06163.

01580-0616A

$2.53

3

RELAY, STARTING MOTOR

31800-49100

$92.64

4

LEAD WIRE, STARTING MOTOR

33850-19B00

$45.52

5

CAP, TERMINAL

31861-46D00

$6.58

6

SCREW

09128-06013

$1.28

7

NUT This part replaces 08361-35068.

08361-3506A

$1.88

8

COIL ASSY, IGNITION

33410-01X50

$102.23

9

BRACKET, IGNITION COIL

33416-19B00

Unavailable

10

SCREW This part replaces 02142-06203.

02142-0620A

$1.43

11

CAP, SPARK PLUG

33510-43010

$23.90

12

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.50

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

14

RECTIFIER ASSY

32800-19B11

$216.75

15

SCREW This part replaces 02142-06203.

02142-0620A

$1.43

16

HOLDER, ELECTRIC PARTS REAR

47410-19B10

$20.33

17

BOLT This part replaces 01570-06163.

01570-0616A

$2.32
