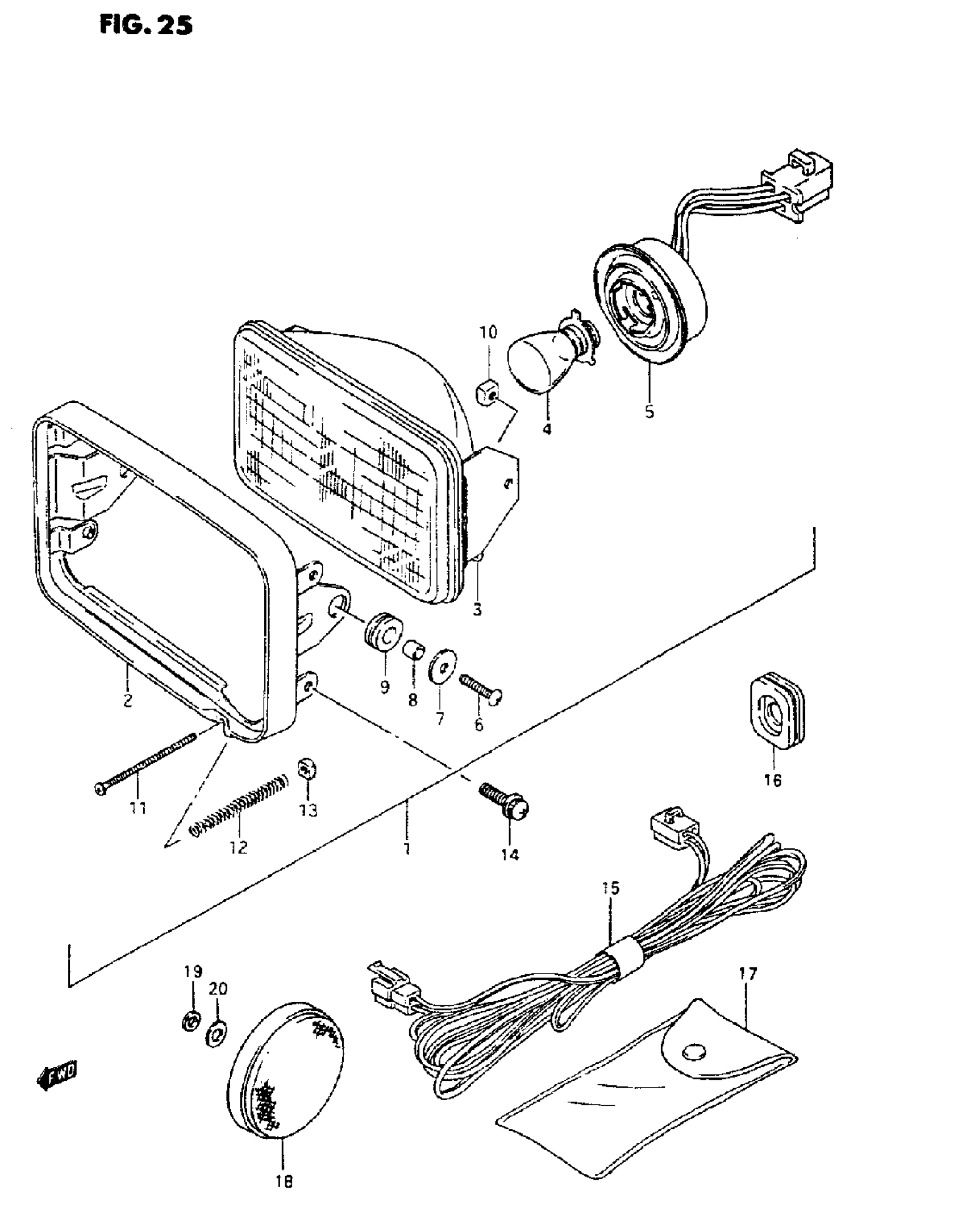

Suzuki LT-F250 (1997) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-41B01

Unavailable

2

RIM

35111-41B01

Unavailable

3

UNIT. LAMP

35121-41B00

Unavailable

4

BULB (12V, 45/45W)

09471-12080

$5.94

5

SOD(ET

35171-41B00

Unavailable

6

SCREW This part replaces 02112-05203.

02112-0520B

$1.86

7

WASHER

09160-05013

$1.25

8

SPACER

35133-41B01

Unavailable

9

CUSHION

35139-41B01

Unavailable

10

NUT

35135-45900

$3.67

11

SCREW

35151-45900

$3.44

12

SPRING

35154-41B00

Unavailable

13

NUT

35135-45600

$4.12

14

SCREW This part replaces 02112-75123.

02112-7512A

$2.43

15

WIRE. HEADLAMP LEAD

36856-41B00

Unavailable

16

GROMMET

09320-13019

Unavailable

17

BAG, LEAD WIRE

09811-00301

Unavailable

18

REFLEX REFLECTOR, FRONT SIDE | E28

35950-14A00

$15.95

19

LOCK WASHER | E28 This part replaces 08321-01053.

08321-0105A

$1.83

20

WASHER, FRONT | E28 This part replaces 08322-01053.

08322-0105A

$1.83
