2001 Suzuki LT-F160 Suspension ARM Diagram

← All diagrams

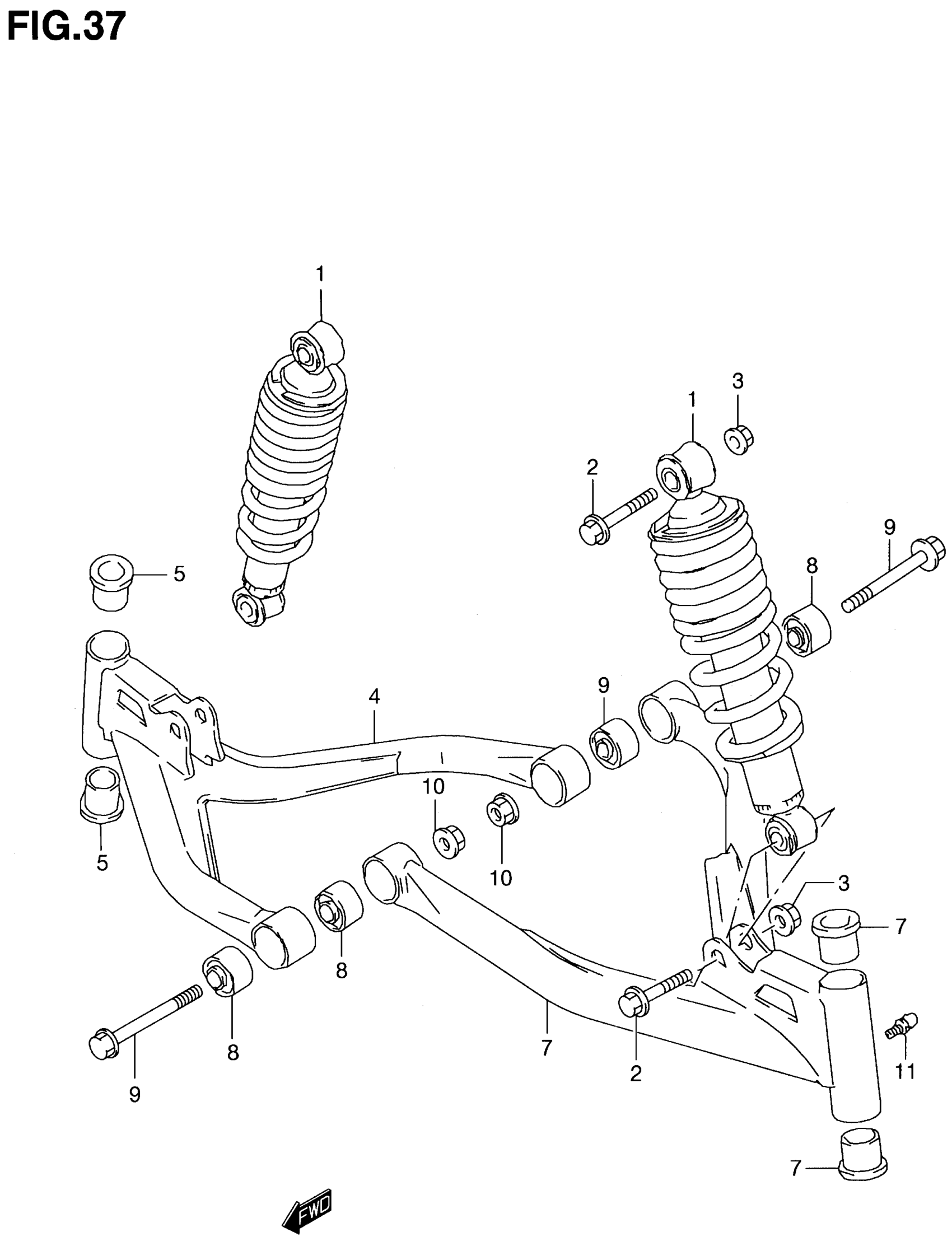

Find the part on the Suspension ARM diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-F160 Suspension ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, FRONT SHOCK | (BLACK)

52100-02C00-019

2
Out of stock

2

BOLT (10X40)

61181-02C00

4
Out of stock

3

NUT

08319-31107

4

$2.92

In stock

4

ARM, SUSPENSION RH (BLACK) | Includes Item(s) 5

52410-02C00-019

1
Out of stock

5

BUSH

51236-40B00

2
Out of stock

6

ARM, SUSPENSION LH (BLACK) | Includes Item(s) 7

52420-02C00-019

1
Out of stock

7

BUSH

51236-40B00

2
Out of stock

8

BUSH, SUSPENSION ARM PIVOT | (10X28.1X28)

09319-10049

4
Out of stock

9

BOLT, SUSPENSION ARM PIVOT | (10X80)

09103-10173

2
Out of stock

10

NUT This part replaces 08316-20103.

08316-2010B

2
Out of stock

11

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

2
Out of stock
