2001 Suzuki LT-F160 Rear Wheel Diagram

← All diagrams

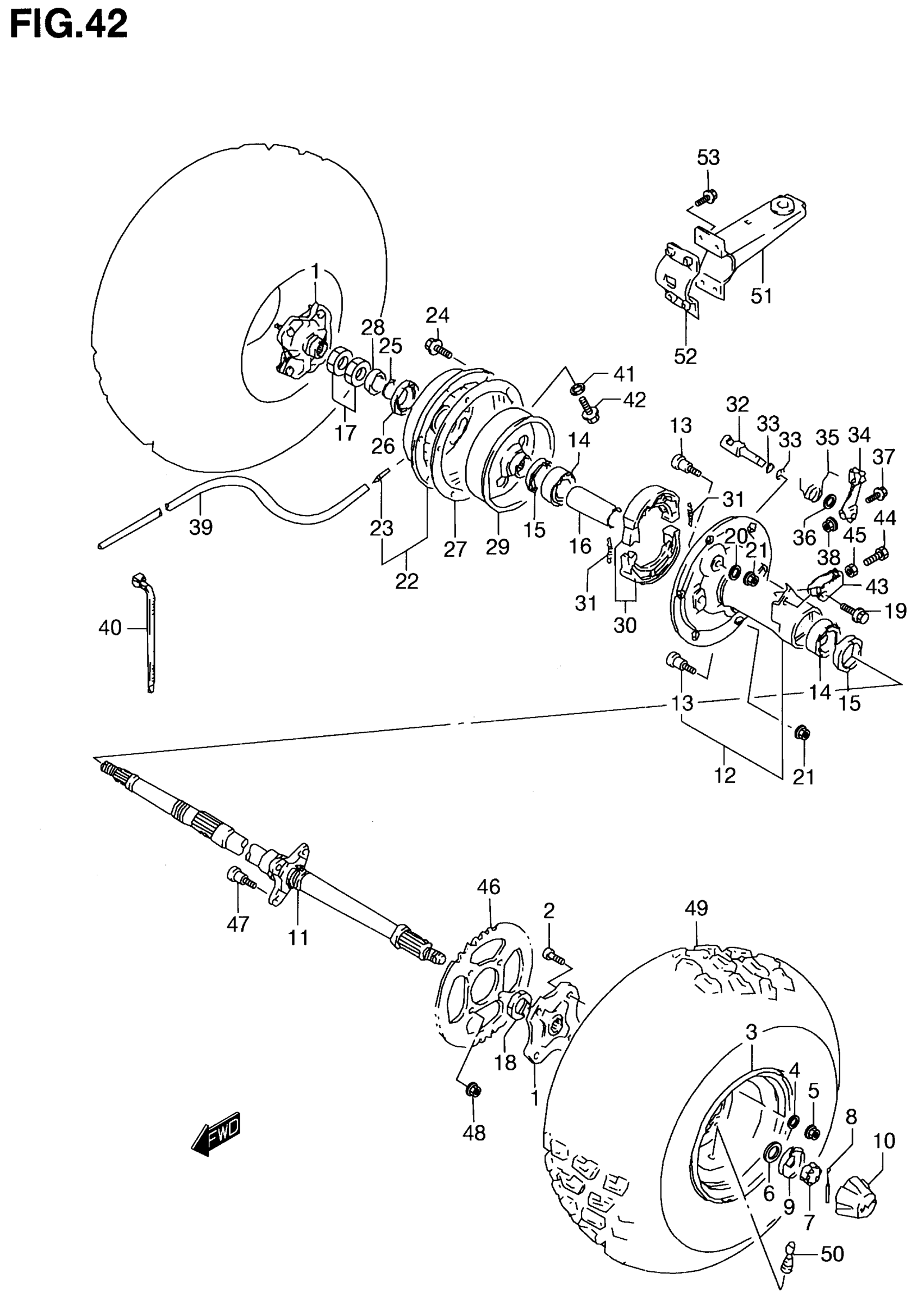

Find the part on the Rear Wheel diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-F160 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR | Includes Item(s) 2

64110-02C00

2
Out of stock

2

BOLT (10X23)

09119-10048

8
Out of stock

3

RIM, REAR WHEEL (8X8.0AT) | (SILVER)

65310-02C00-13L

2
Out of stock

4

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

8
Out of stock

5

NUT This part replaces 08316-10103.

08316-1010B

8
Out of stock

6

WASHER, HUB

09164-18004

2
Out of stock

7

NUT

09141-18008

2

$8.27

In stock

8

PIN, COTTER This part replaces 04111-40408.

04111-4040A

2
Out of stock

9

HOLDER, CAP

64726-19B00

2

$3.39

In stock

10

CAP, CENTER

54725-39D00

2

$15.15

In stock

11

AXLE,REAR This part replaces 64710-02C00.

64710-02C01

1
Out of stock

12

HOUSING, REAR AXLE (SILVER) | Includes Item(s) 13

64720-02C01-13L

1
Out of stock

13

BOLT This part replaces 64716-02C00.

09119-12021

2
Out of stock

14

BEARING (35X62X14)

09262-35032

2
Out of stock

15

SEAL, DUST (42X62X7)

09283-42011

2
Out of stock

16

SPACER, BEARING | (36.3X42.7X140)

64731-02C00

1
Out of stock

17

NUT, RH

09159-32002

1
Out of stock

18

NUT, LH

09140-32001

1
Out of stock

19

BOLT, HOUSING SET, LH (12X28)

09103-120D9

2
Out of stock

20

WASHER, UPPER, RH

09160-12017

1
Out of stock

21

NUT This part replaces 08319-31128.

08319-3112A

2
Out of stock

22

COVER, BRAKE DRUM (SILVER) | Includes Item(s) 23

64130-02C00-13L

1
Out of stock

23

UNION

09364-070A1

1
Out of stock

24

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

6
Out of stock

25

O RING, COVER (ID:31.7,D:2.40)

09280-32006

1
Out of stock

26

SEAL, COVER OUTER | (42X59X10.2)

64135-02C00

1
Out of stock

27

PACKING, COVER

64160-24400

1
Out of stock

28

COLLAR, COVER

64214-02C00

1
Out of stock

29

DRUM, REAR BRAKE

64120-24401

1
Out of stock

30

SHOE SET, REAR BRAKE

64400-02830

1
Out of stock

31

SPRING, SHOE

55420-02C00

2
Out of stock

32

CAM, REAR BRAKE

64440-24402

1
Out of stock

33

O RING (ID:14.8,D:1.7)

64443-24300

2
Out of stock

34

LEVER,REAR BRAK This part replaces 64451-02C00.

64451-02C0V

1
Out of stock

35

SPRING, LEVER RETURN

64484-02C00

1
Out of stock

36

PLATE, INDICATER

64492-02C00

1
Out of stock

37

BOLT, LEVER (6X35)

09103-06108

1
Out of stock

38

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

39

HOSE, BREATHER (6X10X980)

64275-02C00

1
Out of stock

40

CLAMP, HOSE

09407-14403

1
Out of stock

41

WASHER, PLUG

09161-10007

1
Out of stock

42

PLUG, DRAIN

09247-10009

1
Out of stock

43

ADJUSTER, CHAIN

61410-35B00

1
Out of stock

44

BOLT (8X50)

09104-08034

1
Out of stock

45

NUT This part replaces 08310-00083.

08310-0008A

1
Out of stock

46

SPROCKET, REAR (NT:39)

64511-02C01

1
Out of stock

47

BOLT (10X25)

09119-10031

4
Out of stock

48

NUT

08319-31107

4
Out of stock

49

TIRE, REAR (AT22X10-8) | (GOLDEN BOY)

65100-02C30

2
Out of stock

50

VALVE ASSY, WHEEL RIM,TR413

43130-78030

2
Out of stock

51

PLATE, TRLR TOW

95210-02C00

1
Out of stock

52

PLATE, TRLR TOW JOINT

95220-02C00

1
Out of stock

53

BOLT This part replaces 01570-08253.

01570-0825A

4
Out of stock
