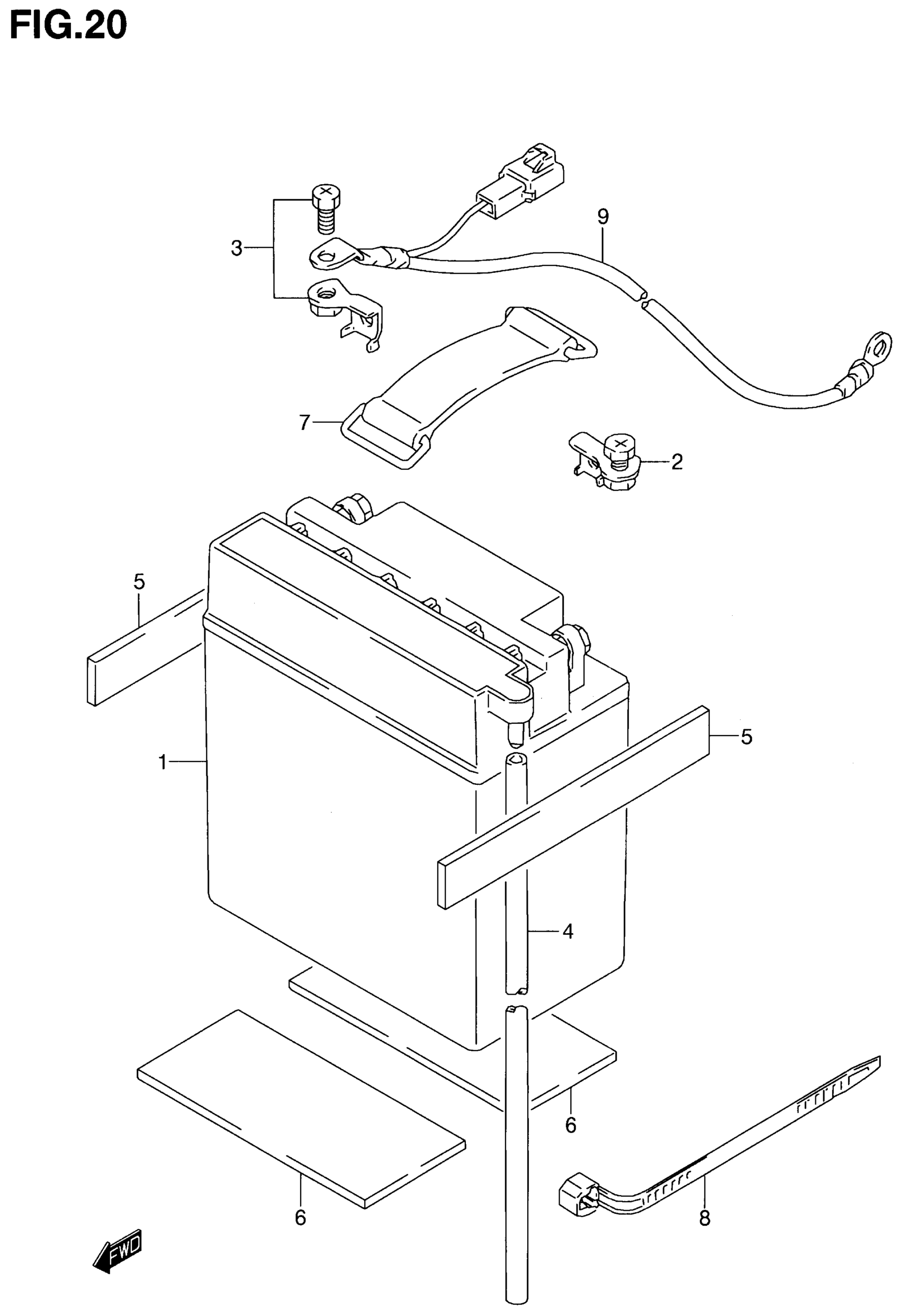

Suzuki LT-F160 (2001) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,9AH) This part replaces 33610-02C60.

33610-02C10

Unavailable

2

TERMINAL, BATTERY

33621-02C00

$4.43

3

TERMINAL, BATTERY

33622-02C00

$4.43

4

HOSE,BATTERY EX | L:780->500 This part replaces 33680-16A10.

33680-16A11

$7.65

5

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (20X130)

33651-37000

$4.09

6

PROTECTOR (170X95X3) | CUT AS REQUIRED PROFILE (50X115)

33651-37000

$4.09

7

BAND This part replaces 09462-000E6.

09462-00046

$3.33

8

CLAMP (L:125)

09407-14403

$2.24

9

LEAD WIRE, BATTERY MINUS

33860-02C00

$31.82
