2001 Suzuki LT-F160 Steering Shaft Diagram

← All diagrams

Find the part on the Steering Shaft diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

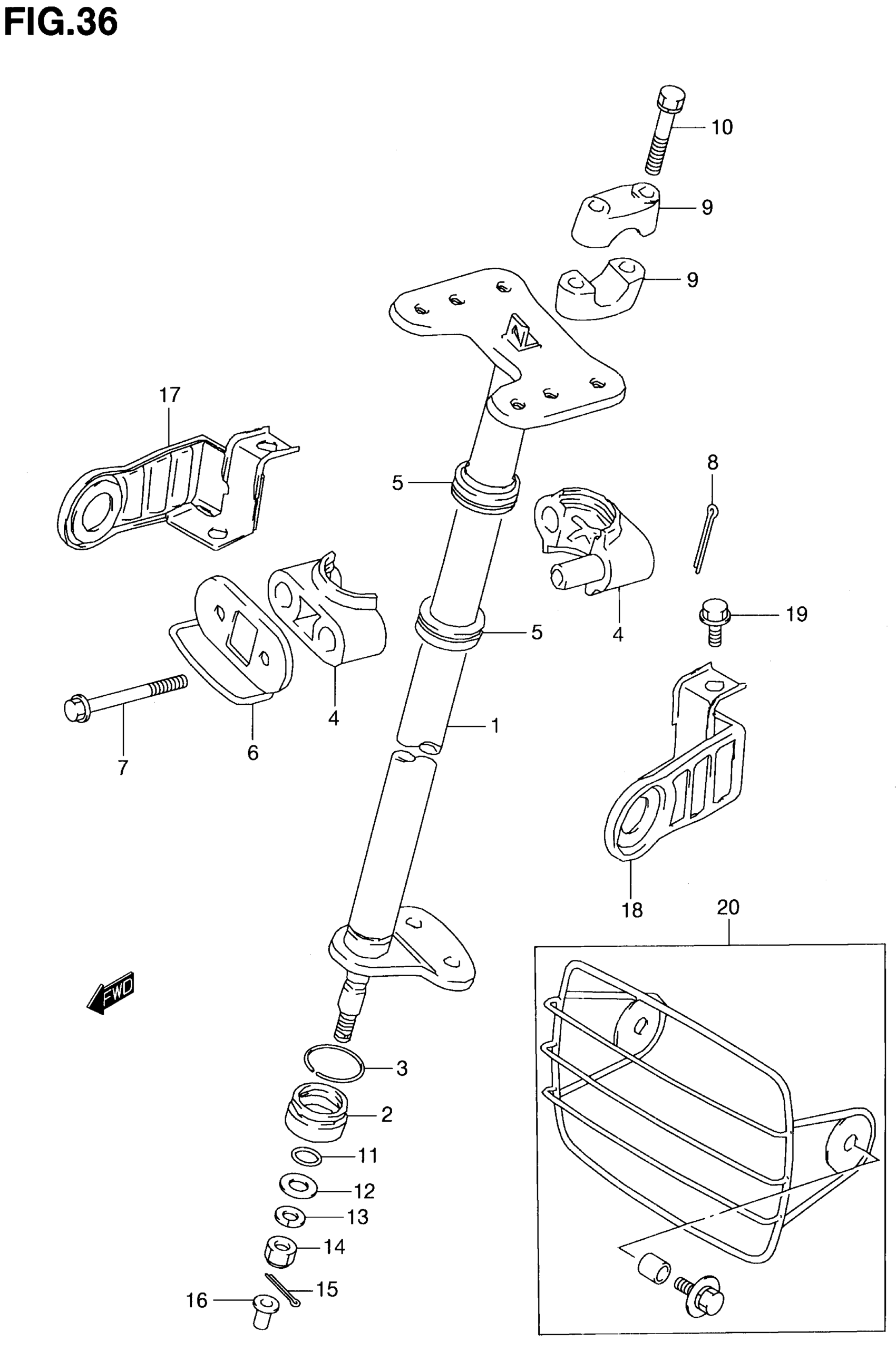

2001 Suzuki LT-F160 Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, STEERING

51650-02C00

1
Out of stock

2

DUST SEAL, STEERING SHAFT | (25.4X35X13)

51662-18900

1
Out of stock

3

CLIP, DUST SEAL

09380-31002

1
Out of stock

4

HOLDER,STEERING SHAFT

51670-24500

2
Out of stock

5

DUST SEAL, STEERING | (27X38X8.5)

51678-24500

2
Out of stock

6

REINFORCEMENT, HOLDER

51680-02C00

1
Out of stock

7

BOLT (8X80)

09103-08116

2
Out of stock

8

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

9

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

4
Out of stock

10

BOLT This part replaces 01570-08553.

01570-0855B

4
Out of stock

11

O RING (ID:13.8,D:2.50)

09280-14011

1
Out of stock

12

WASHER This part replaces 09160-10128.

09160-10128-XC0

1
Out of stock

13

LOCK WASHER

09162-10008

1
Out of stock

14

1

$2.48

In stock

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

16

BUSH,STEERING SHAFT,LOWER

51661-40B00

1
Out of stock

17

BRACKET, HEAD LAMP RH

51530-02C00

1
Out of stock

18

BRACKET, HEAD LAMP LH

51540-02C00

1
Out of stock

19

BOLT This part replaces 01580-08163.

01580-0816A

2
Out of stock

20

GUARD SET, HEAD LAMP | OPT

48500-02C00

1
Out of stock
