2001 Suzuki LT-F160 Knuckle ARM Diagram

← All diagrams

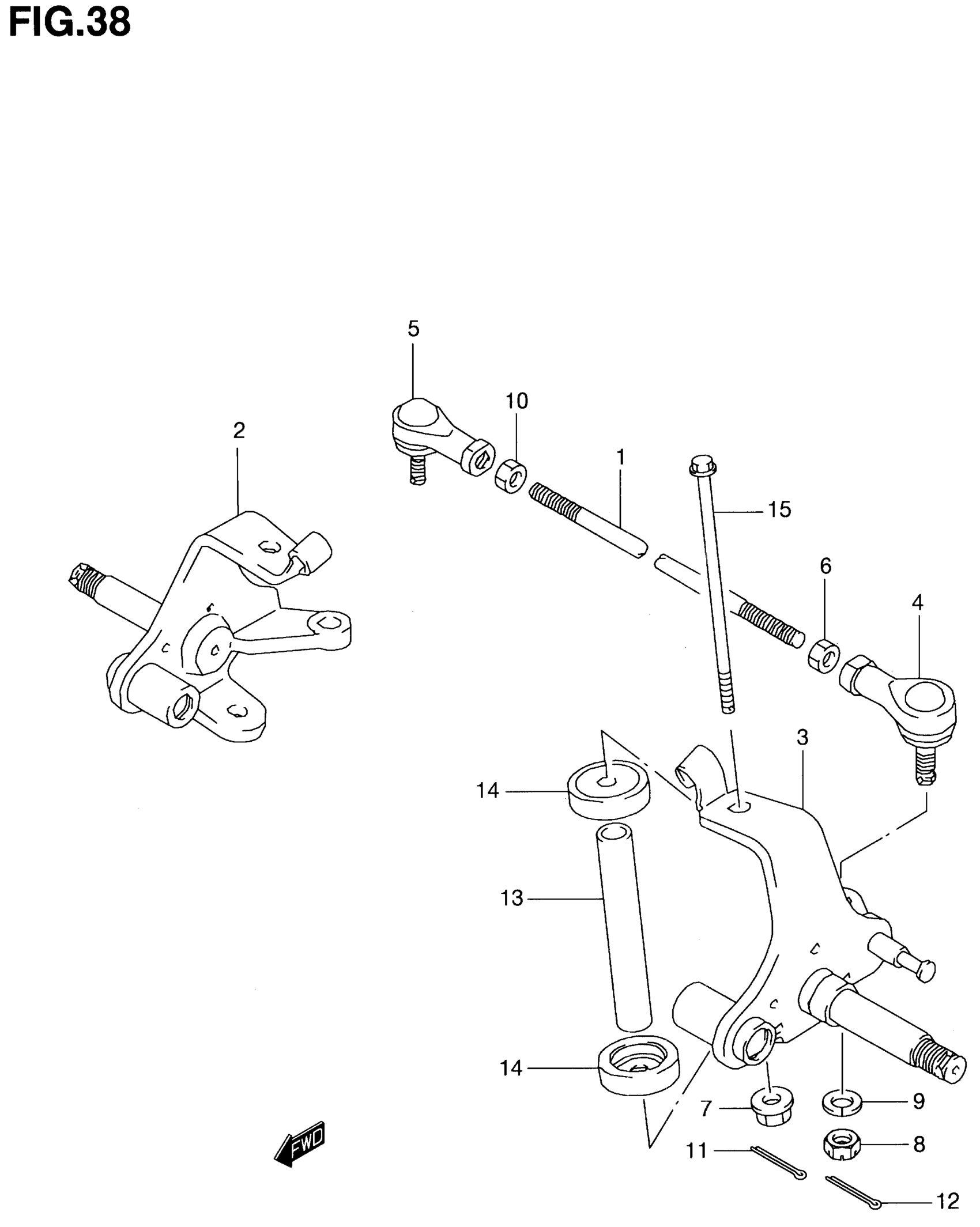

Find the part on the Knuckle ARM diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-F160 Knuckle ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING

51281-02C00

2
Out of stock

2

KNUCKLE ARM, RH

51230-02C01

1
Out of stock

3

KNUCKLE ARM, LH

51240-02C01

1
Out of stock

4

END,ROD,R This part replaces 51260-02C00.

51260-43G00

2
Out of stock

5

ROD END (LH THREAD)

51270-02C00

2
Out of stock

6

NUT (RH THREAD)

09140-10043

2
Out of stock

7

NUT This part replaces 08319-31103.

08319-3110A

2
Out of stock

8

NUT This part replaces 08314-40103.

08314-4010B

4
Out of stock

9

LOCK WASHER

09162-10008

4
Out of stock

10

NUT, TIE ROD (LH THREAD)

09140-10027

2
Out of stock

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock

13

SPACER, RR SPNSN ARM UPPER This part replaces 51251-18901.

61554-31G00

2
Out of stock

14

DUST SEAL (28.6X38X10.5)

51255-18900

4
Out of stock

15

BOLT, KNUCKLE ARM (10X132)

09103-10202

2
Out of stock
