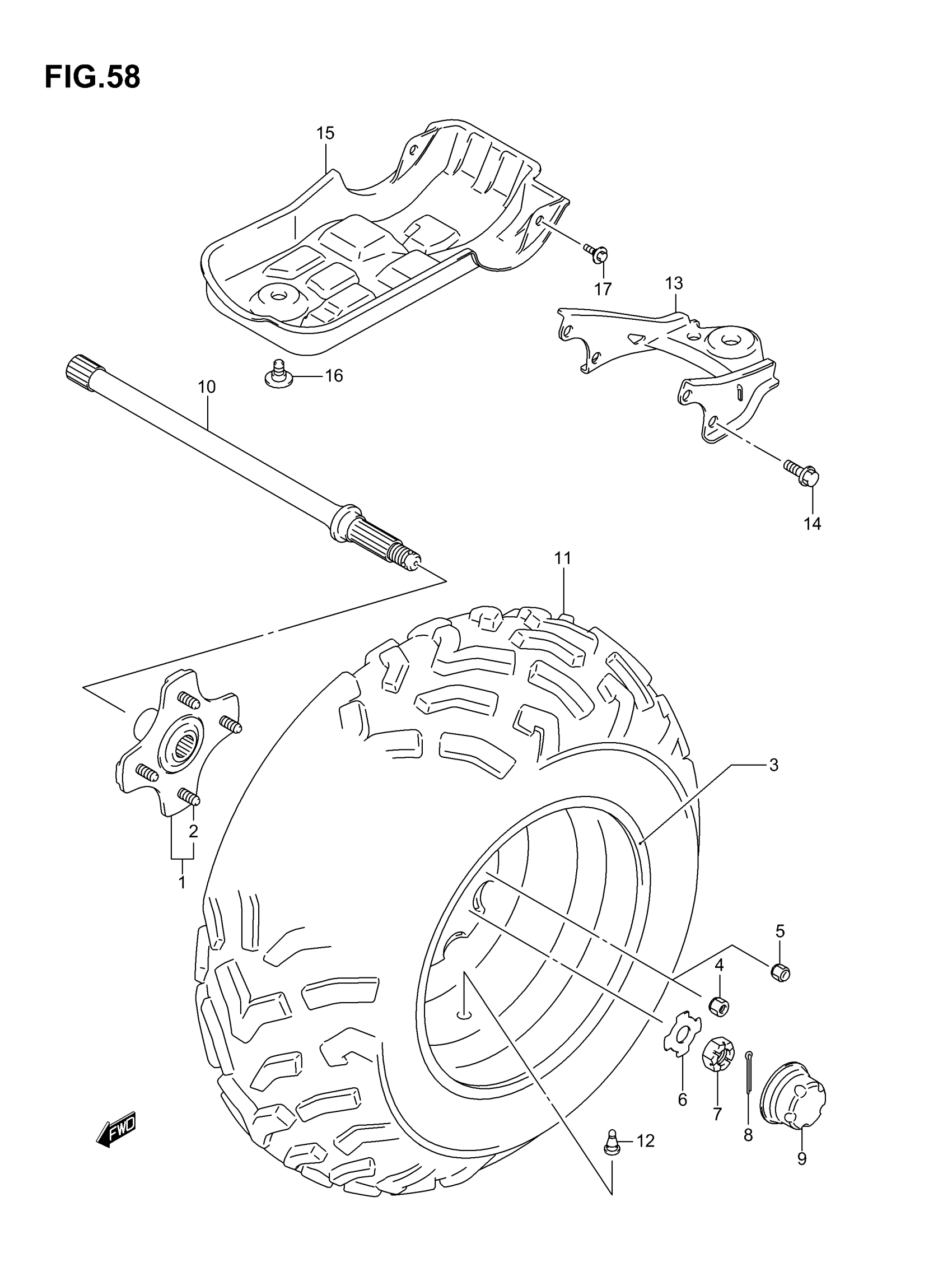

Find the part on the Left Rear Wheel diagram for your 2007 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A500F Left Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,REAR,L | Includes Item(s) 2 This part replaces 64110-38F22.

64110-38F30

1
Out of stock

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

4
Out of stock

3

RIM, REAR WHEEL (12X7.5AT) (SILVER) | MODEL K4 FOR YT8,YT9,YU1,YDH MODEL K5/K6

65311-03G00-12Z

1
Out of stock

3

RIM, REAR WHEEL (12X7.5AT) (SILVER) | MODEL K4 FOR YFR

65311-03G10-12Z

1
Out of stock

4

NUT | MODEL K4 FOR YT8,YT9,YU1,YDH MODEL K5/K6/K7

09140-10021

4
Out of stock

5

4

$8.90

In stock

6

WASHER | MODEL K4/K5/K6

64723-09F00

1
Out of stock

6

WASHER | MODEL K7

64723-03G00

1
Out of stock

7

NUT, HUB | MODEL K4/K5/K6

09141-18010

1
Out of stock

7

NUT | MODEL K7 This part replaces 09141-20006.

09141-20008

1
Out of stock

8

PIN, COTTER This part replaces 04111-40408.

04111-4040A

1
Out of stock

9

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

10

AXLE,REAR,L | MODEL K4/K5 This part replaces 64712-38F10.

64712-38F20

1
Out of stock

10

AXLE,REAR,L | MODEL K6/K7

64712-38F20

1
Out of stock

11

TIRE,REAR | MODEL K4/K5 This part replaces 65110-38F20.

65110-03G30

1
Out of stock

11

TIRE,REAR | MODEL K6 This part replaces 65110-38F30.

65110-38F50

1
Out of stock

11

TIRE,REAR | MODEL K7 This part replaces 65110-03G20.

65110-03G30

1
Out of stock

12

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

13

PLATE,TRAILER TOW | MODEL K4/K5/K6 This part replaces 95210-38F00.

95210-38F10

1
Out of stock

13

PLATE,TRAILER TOW | MODEL K7

95210-38F10

1
Out of stock

14

BOLT | MODEL K4/K5/K6

09103-10344

4
Out of stock

14

BOLT (10X35) | MODEL K7 This part replaces 09103-10411.

09103-10422

4
Out of stock

15

PROTECTOR,FINAL CASE This part replaces 61391-38F00.

61391-38F11

1
Out of stock

16

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

1
Out of stock

17

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

2
Out of stock
