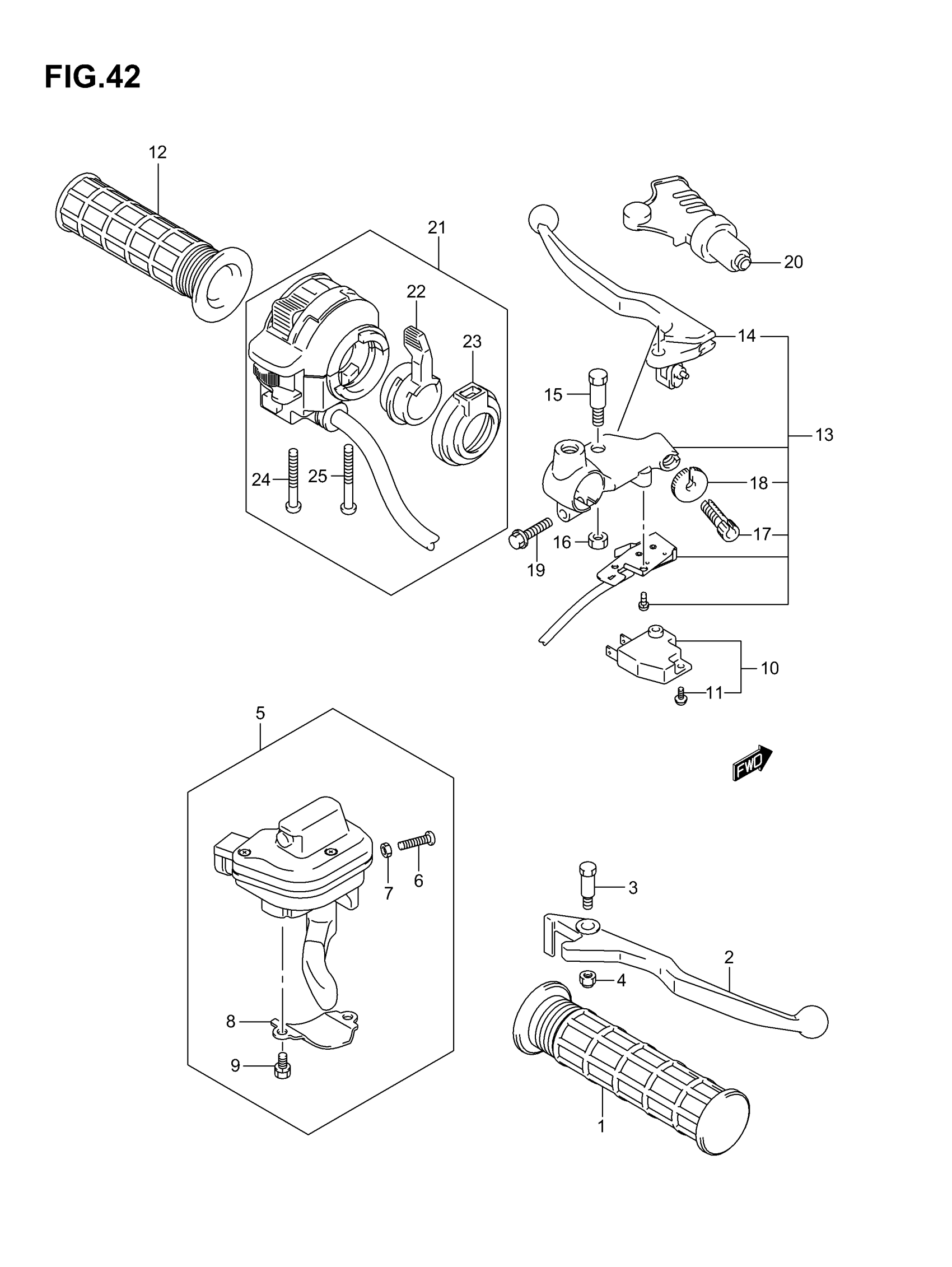

Suzuki LT-A500F (2007) HANDLE LEVER Diagram

#

Description
Price

1

GRIP This part replaces 57211-03G10.

57211-03G11

$10.96

2

LEVER, BRAKE | MODEL K4

57421-39D10

$39.27

2

LEVER,FRONT BRAKE | MODEL K5/K6/K7

57421-39D20

$20.51

3

BOLT | MODEL K4/K5/K6

09111-06075

$8.28

3

BOLT,BRAKE LEVER PIVOT | MODEL K7

57431-04F00

$5.75

4

NUT,LEVER PIVOT

57433-09F00

$3.26

5

CASE ASSY, THROTTLE | MODEL K4 This part replaces 57100-03G51.

57100-03G61

Unavailable

5

CASE ASSY, THROTTLE | MODEL K5/K6/K7; Includes Item(s) 6 - 9

57100-03G61

Unavailable

6

SCREW This part replaces 02112-05203.

02112-0520B

$1.86

7

NUT This part replaces 08310-00053.

08310-0005A

$1.83

8

HOLDER

57126-07G00

$32.85

9

BOLT

57127-07G00

$13.50

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C11.

57460-14J02

$35.21

11

SCREW

57465-17C00

$2.37

12

GRIP This part replaces 57211-03G10.

57211-03G11

$10.96

13

LEVER ASSY,RR B | MODEL K4 This part replaces 57500-38F01.

57500-38F02

Unavailable

13

LEVER ASSY,RR B | MODEL K5/K6/K7; Includes Item(s) 14 - 19 This part replaces 57500-38F11.

57500-38F12

$149.07

14

LEVER SET, BRAKE | MODEL K4

57620-38811

Unavailable

14

LEVER SET, BRAKE | MODEL K5/K6/K7

57620-38820

Unavailable

15

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$8.94

16

.NUT This part replaces 08319-21063.

08319-2106B

$2.31

17

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$10.66

18

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$7.67

19

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

20

COVER, BRAKE LEVEL

57541-03G00

Unavailable

21

SWITCH ASSY,HAN | Includes Item(s) 22 - 25 This part replaces 37400-09F00.

37400-09F02

$137.23

22

LEVER, CHOKE

37571-19B01

$11.12

23

COVER, CHOKE

37576-19B01

$6.21

24

SCREW

02112-05407

$2.04

25

SCREW

02112-05457

$1.88
