Description

Price

1

SHAFT, STEERING

51650-03G60

$323.63

2

DUST SEAL, STEERING HOLDER (27X38X8.5)

51678-24500

$6.54

3

HOLDER,STEERING SHAFT

51670-24500

$22.70

4

BOLT This part replaces 01550-08753.

01550-0875A

$3.37

5

O RING (ID:16.8,D:3.10)

09280-17003

$1.70

6

BUSH, STEERING SHAFT LOWER (17X26X36.9)

51661-09F00

$28.75

7

SEAL,DUST This part replaces 51662-05G00.

51662-05G01

$6.14

8

SEAL,DUST This part replaces 51663-05G00.

51663-05G01

$6.82

9

WASHER (12.5X32X2.3)

09160-12073

$2.06

10

NUT This part replaces 08319-31123.

08319-3112B

$5.35

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

12

CLAMP, HANDLEBAR LOWER (BLACK)

56211-09F00-291

$33.15

13

HOLDER, HANDLE (BLACK) This part replaces 56211-29900-291.

56211-29900

$17.17

14

.BOLT This part replaces 01550-08553.

01550-0855A

$2.90

15

WASHER

09164-08015

$3.00

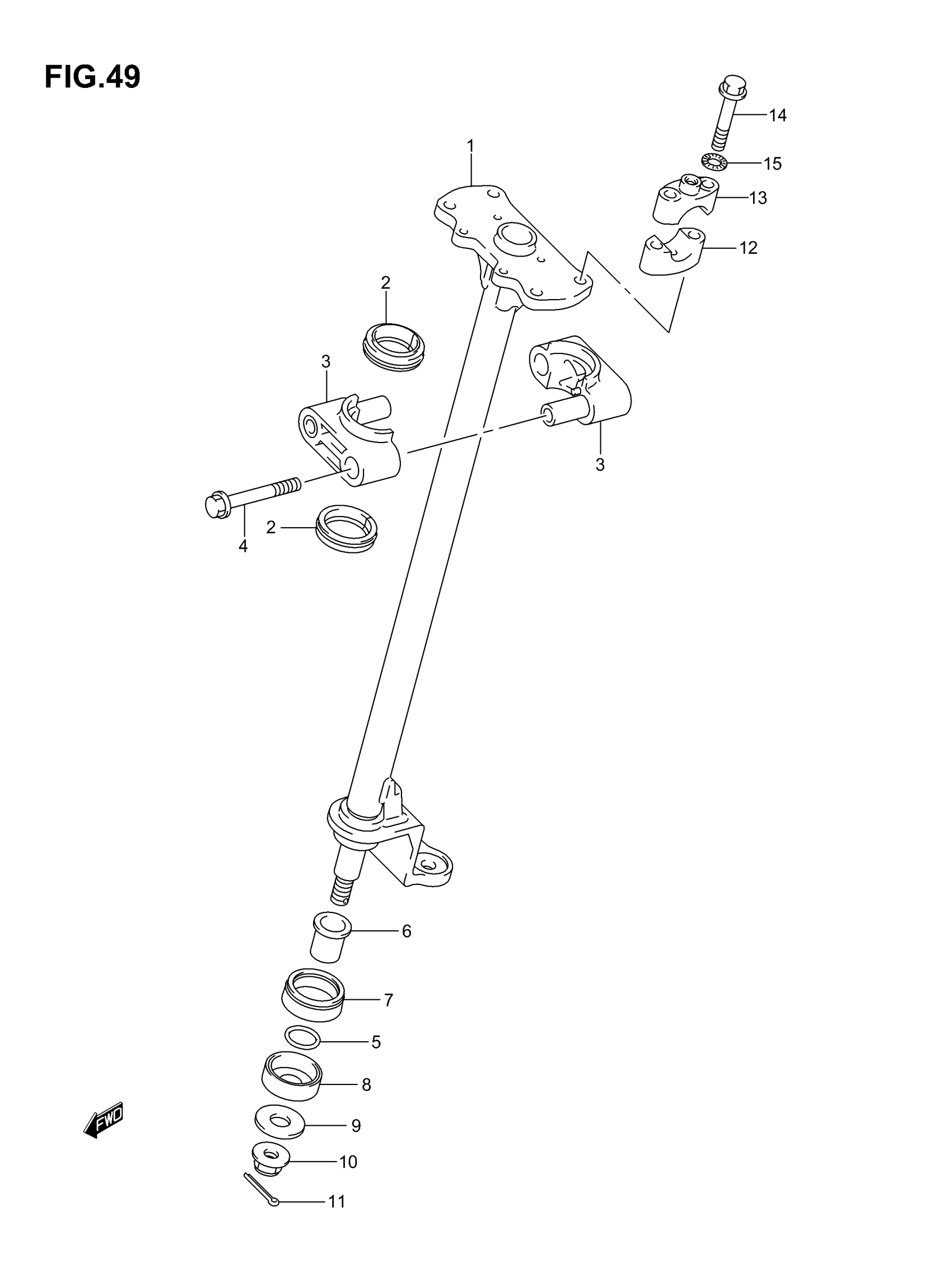

Suzuki LT-A500F (2007) STEERING SHAFT Diagram
