Description

Price

1

TIE ROD, STEERING

51281-03G00

$36.12

2

KNUCKLE, STEERING RH

51231-03GG0

$146.63

3

KNUCKLE, STEERING LH

51241-03GG0

$144.58

4

END,KNUCKLE STEERING

51210-38F00

$61.91

5

ROD, END, R

51260-21G00

$62.58

6

ROD, END, L

51270-21G00

$88.25

7

NUT, TIE-ROD RH

51283-21G00

$4.70

8

NUT This part replaces 08314-40103.

08314-4010B

$2.50

9

NUT, TIE ROD (LH THREAD)

09140-10027

$1.54

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

11

WASHER, ROD END | MODEL K4/K5/K6

09162-10008

$2.80

11

WASHER, ROD END | MODEL K7

09162-10010

$4.03

12

BOLT, KNUCKLE (10X30)

51233-09F00

$5.14

13

DUST SEAL, INNER (38X55X8)

09283-38012

$13.30

14

DUST SEAL, OUTER (38X55X6.4)

09283-38022

$11.74

15

BEARING

08123-60067

$26.29

16

SPACER,HUB BEARING

54731-03G00

$10.66

17

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.59

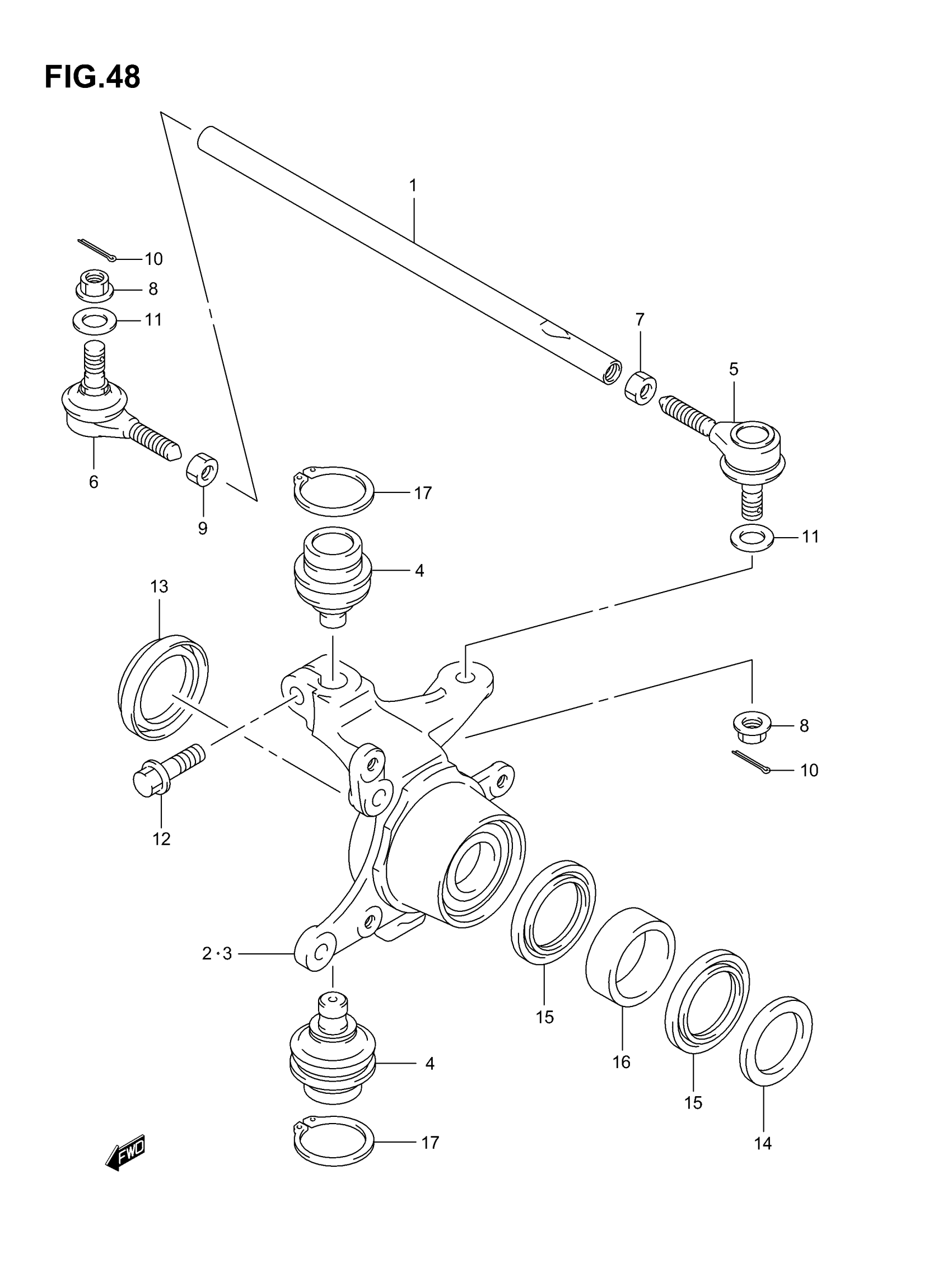

Suzuki LT-A500F (2007) STEERING KNUCKLE Diagram
