1997 Suzuki LT-80 OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1997 Suzuki LT-80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

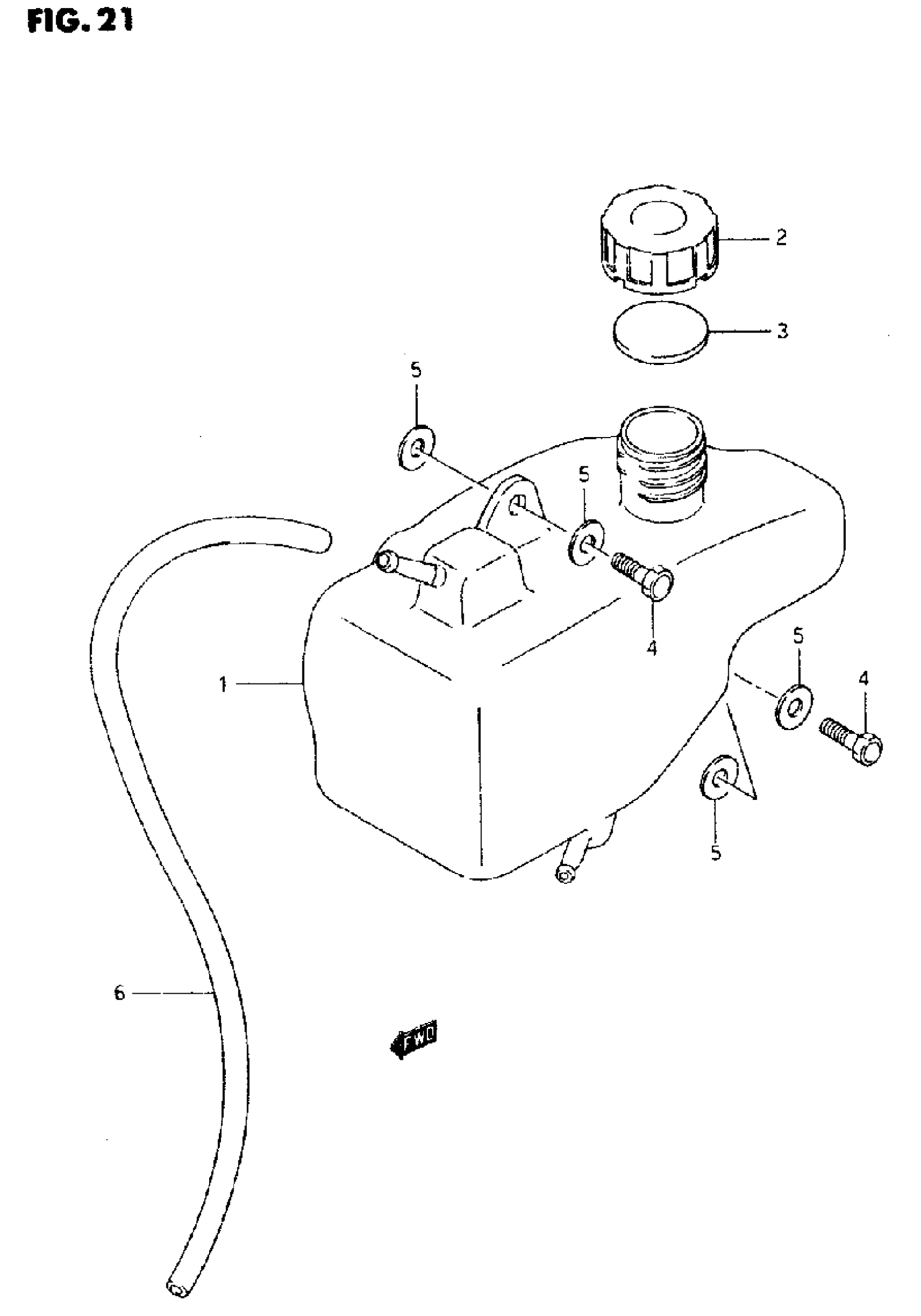

1997 Suzuki LT-80 OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK OIL

44611-40B00

1
Out of stock

2

CAP, OIL TANK

44651-05003

1
Out of stock

3

OIL TANK CAP GA This part replaces 44661-27000.

44661-27001

1
Out of stock

4

BOLT

01500-06207

2
Out of stock

5

WASHER

09160-06019

4
Out of stock

6

HOSE This part replaces 09352-50823-00B.

09352-50005-00B

1
Out of stock
