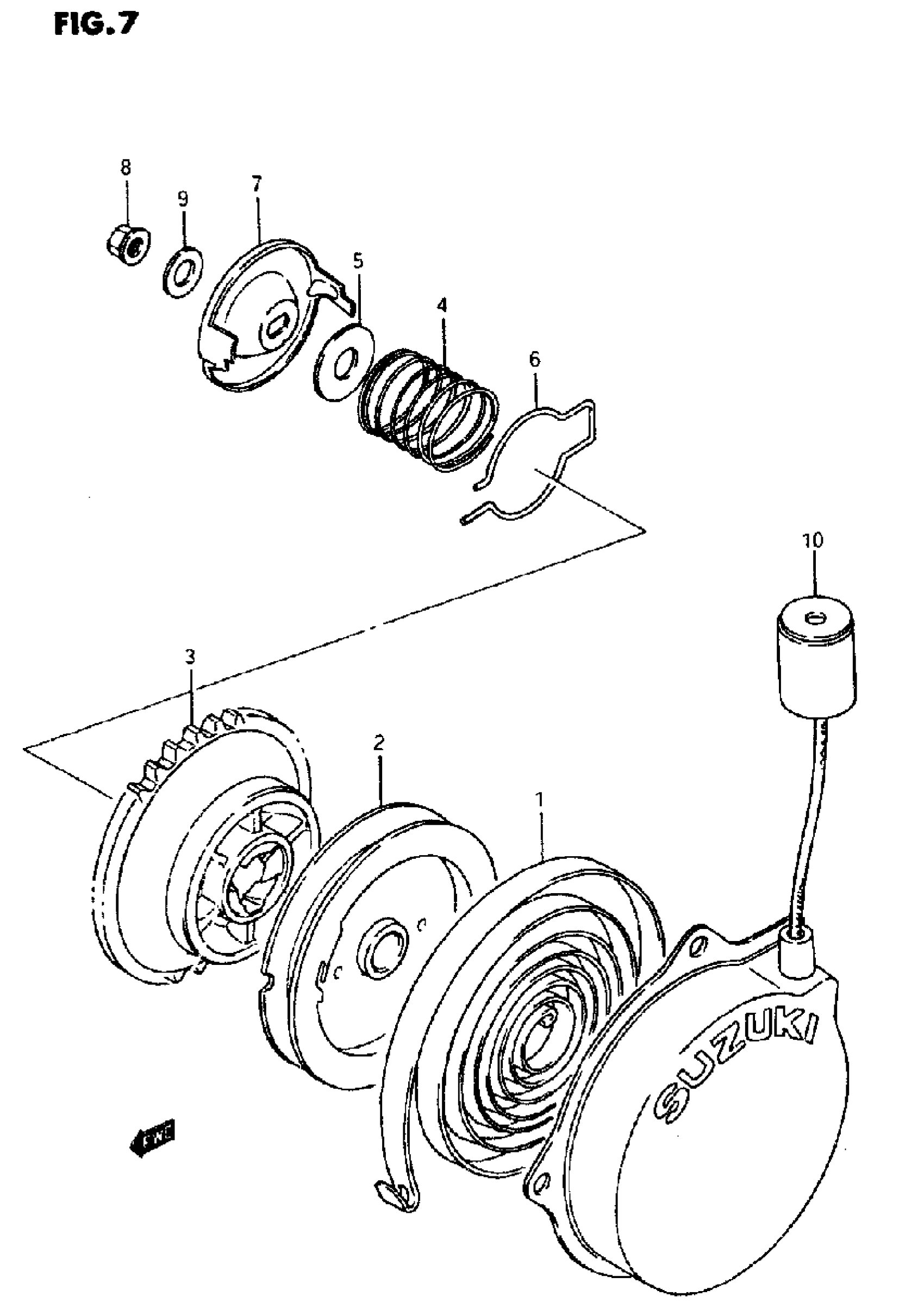

Suzuki LT-80 (1997) RECOIL STARTER (OPT) Diagram

#

Description
Price

1

STARTER ASSY, RECOIL This part replaces 18100-40B02.

18100-40B03

$111.11

1

SPRING, SPIRAL

18142-40B00

$27.55

2

REEL

18121-40B01

$55.55

3

GEAR

18131-40B00

$49.52

4

SPRING, RETURN

18161-40B00

$19.60

5

WASHER This part replaces 09160-10078.

09160-10035

$1.86

6

SPRLNG, FRICTION

18153-40B00

$10.17

7

RETAINER

18151-40B00

Unavailable

8

NUT

18334-40B00

$4.90

9

WASHER

09160-08059

$1.77

10

ROPE ASSY

18200-40B00

Unavailable
