Description

Price

1

COVER, CLUTCH

11341-40B01

Unavailable

2

GASKET, CLUTCH COVER

11482-40B10

$18.24

3

PIN

04211-13189

$2.25

4

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.57

5

BOLT This part replaces 07120-06353.

07120-0635B

$3.21

6

BOLT This part replaces 07120-06453.

07120-0645B

$3.19

7

.BOLT This part replaces 01547-06953.

01547-0695B

$3.13

8

GASKET (7XL5X0.6)

09168-07001

$2.10

9

SCREW, WATER DRAIN (8XL2)

09128-08004

$1.91

10

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.70

11

CASE, RECOIL STARTER This part replaces 18110-40B00.

18110-40BK0

Unavailable

12

GASKET, RECOIL STARTER

18299-40B01

$8.10

13

BOLT This part replaces 01547-06123.

01547-0612B

$1.25

14

BOLT This part replaces 01547-06553.

01547-0655B

$2.80

15

GASKET

09168-06024

$2.19

16

DUCT, BELT COOLING, IN

17161-40B01

$14.04

17

CLIP

09401-30404

$4.53

18

CLIP This part replaces 09401-34402.

09401-33401

$6.73

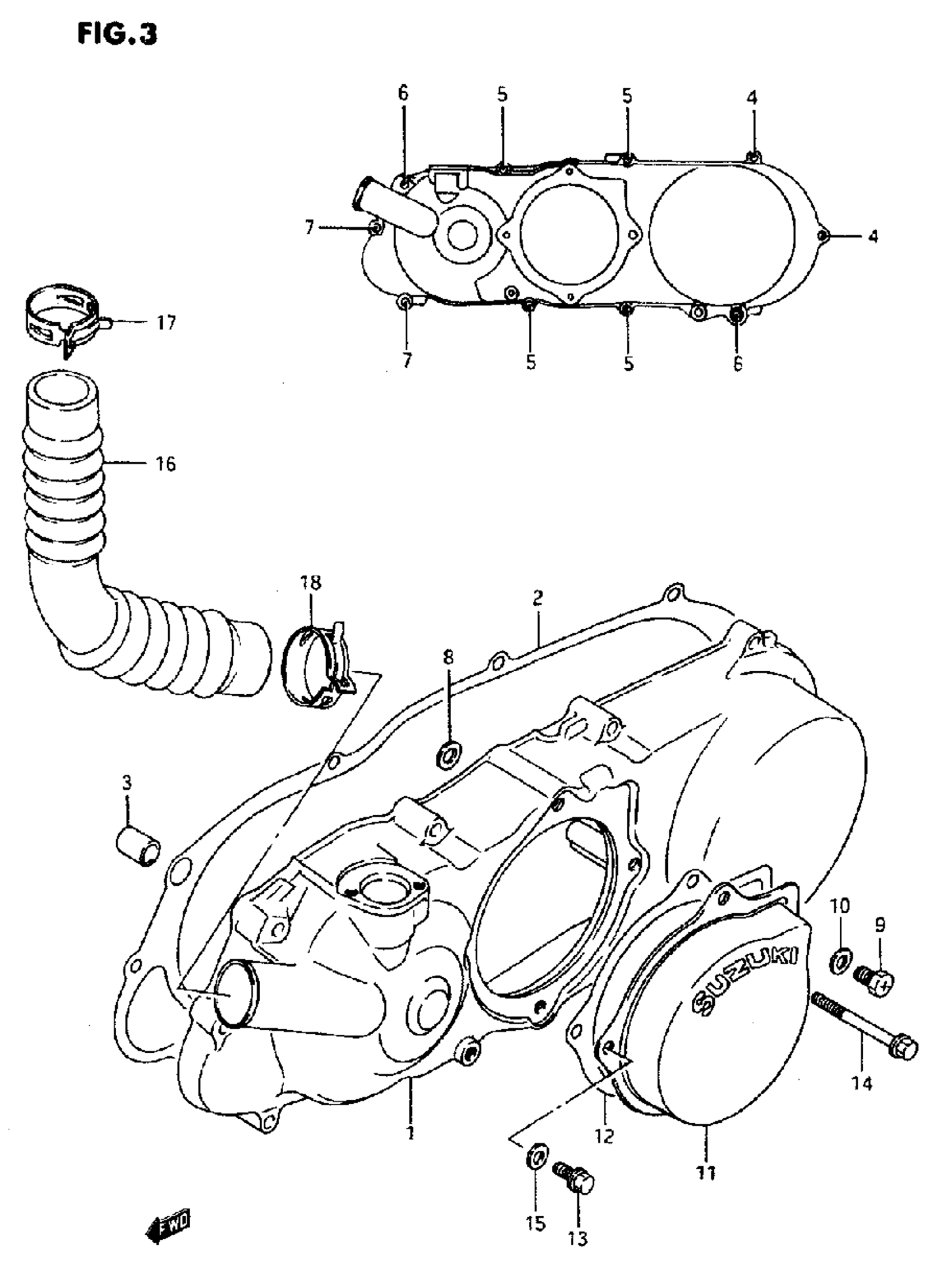

Suzuki LT-80 (1997) CRANKCASE LEFT COVER Diagram
