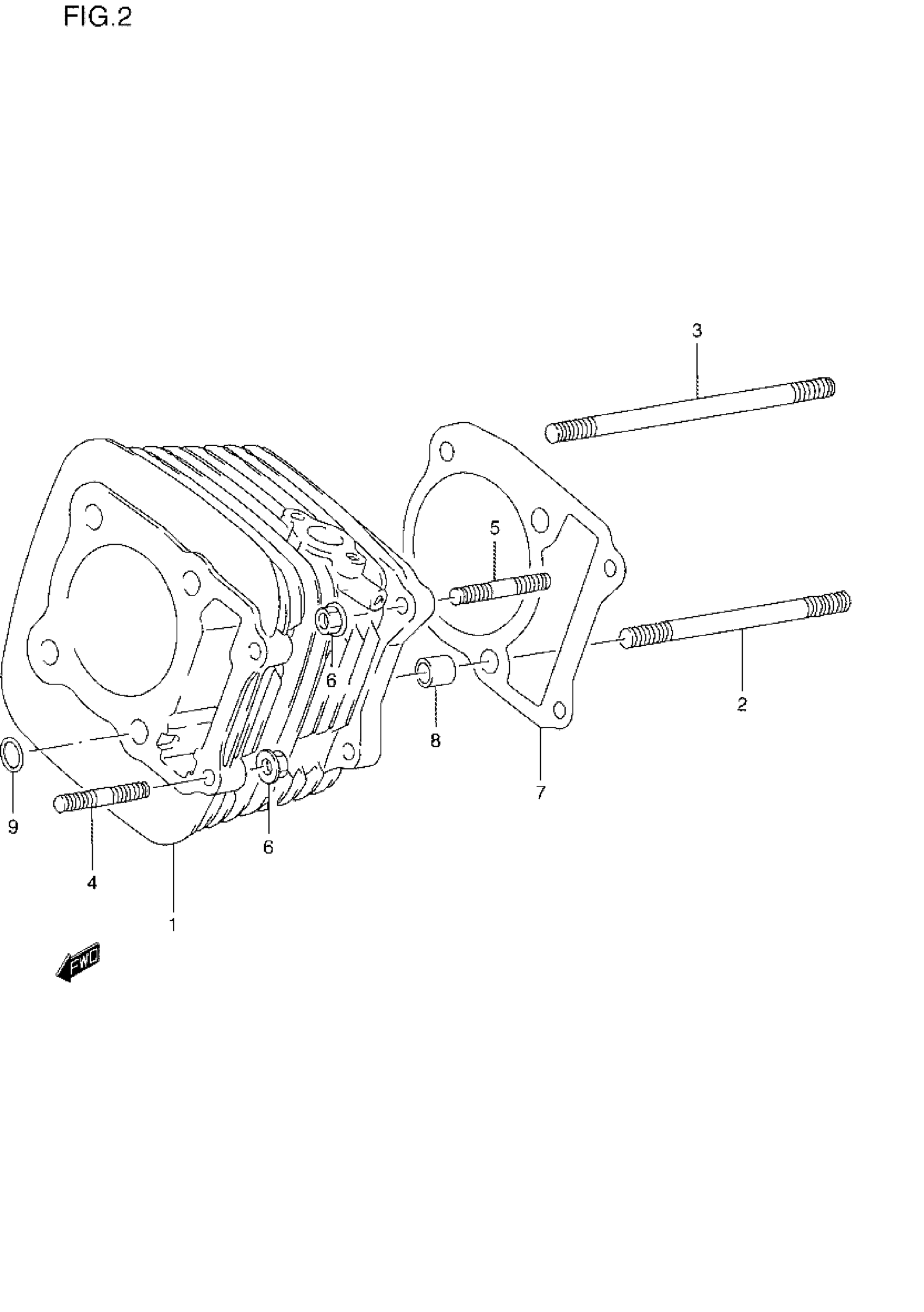

Find the part on the Cylinder diagram for your 1998 Suzuki LT-4WDXW, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-4WDXW Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11210-19B82-0F0

1
Out of stock

2

STUD BOLT (L:170)

09108-08229

2

$9.62

In stock

3

STUD BOLT (L:175)

09108-08230

2

$10.67

In stock

4

STUD BOLT This part replaces 01421-06253.

01421-0625A

2
Out of stock

5

STUD BOLT (L:22)

09108-06002

2

$2.43

In stock

6

NUT This part replaces 08316-10063.

08316-1006B

4
Out of stock

7

GASKET, CYLINDER

11241-19B82

1

$22.90

In stock

8

PIN

04211-11149

2

$1.90

In stock

9

O RING (D:2.8,ID:4.8)

09280-05008

1

$2.61

In stock
