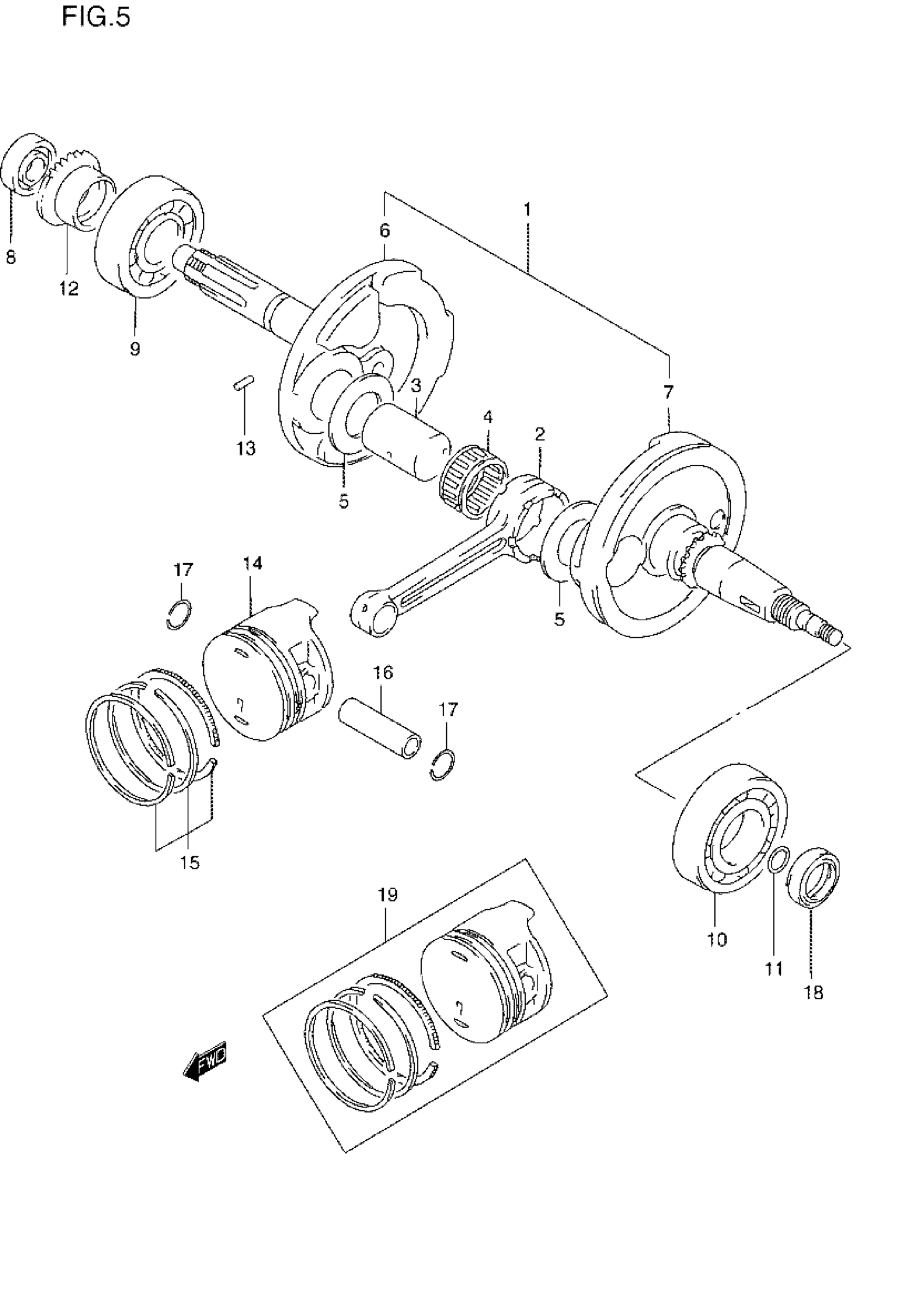

Find the part on the Crankshaft diagram for your 1998 Suzuki LT-4WDXW, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-4WDXW Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,139.30

In stock

2

ROD, CONNECTING

12161-19B70

1

$164.45

In stock

3

1

$57.92

In stock

4

BEARING (32X41X17.8)

09263-32011-0C0

1

$84.17

In stock

5

WASHER

09160-32018

2

$12.75

In stock

6

CRANKSHAFT,R This part replaces 12220-19B71.

12220-19B72

1
Out of stock

7

CRANKSHAFT,L This part replaces 12261-19B71.

12261-19B72

1
Out of stock

8

1

$28.90

In stock

9

1

$74.08

In stock

10

BEARING, LH (35X72X17)

09262-35038

1
Out of stock

11

O RING (D:1.9,ID:12.6)

09280-12009

1
Out of stock

12

GEAR, OIL PUMP DRIVE (NT:30)

16321-19B10

1
Out of stock

13

PIN (4X13.8)

04221-04089

1
Out of stock

14

PISTON

12111-19B80-0F0

1

$102.50

In stock

15

RING SET, PISTON

12140-19B80

1

$61.60

In stock

16

PIN, PISTON

12151-25C00

1

$18.33

In stock

17

CIRCLIP

09381-17003

2

$2.58

In stock

18

OIL SEAL (22X35X7)

09289-22008

1

$22.57

In stock

19

PISTON SET (OS:0.5) | OPT

12100-19B80-050

1

$177.10

In stock

19

PISTON SET (OS:0.1) | OPT

12100-19B80-100

1
Out of stock
