1998 Suzuki LT-4WDXW CAM Chain Diagram

← All diagrams

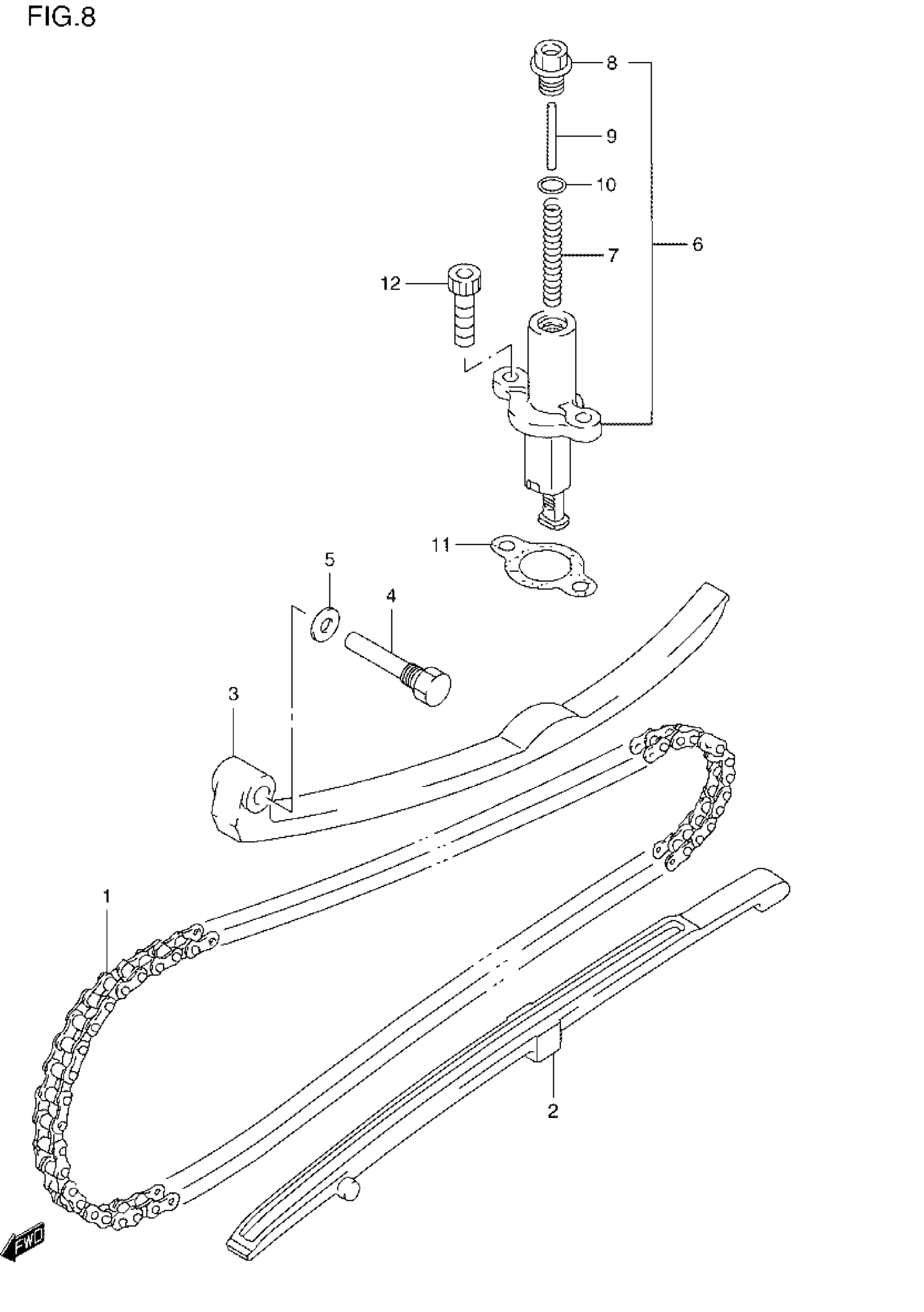

Find the part on the CAM Chain diagram for your 1998 Suzuki LT-4WDXW, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-4WDXW CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM (108LE)

12760-19B71

1
Out of stock

2

1

$28.30

In stock

3

1

$43.18

In stock

4

BOLT

12812-32410

1

$4.64

In stock

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

6

1

$98.89

In stock

7

SPRING

12833-19B00

1

$3.67

In stock

8

PLUG

12834-19B00

1

$19.60

In stock

9

BAR

12835-19B00

1

$2.92

In stock

10

O RING

12832-02A00

1
Out of stock

11

.GASKET,TENSIONER ADJUSTER

12837-19B10

1
Out of stock
