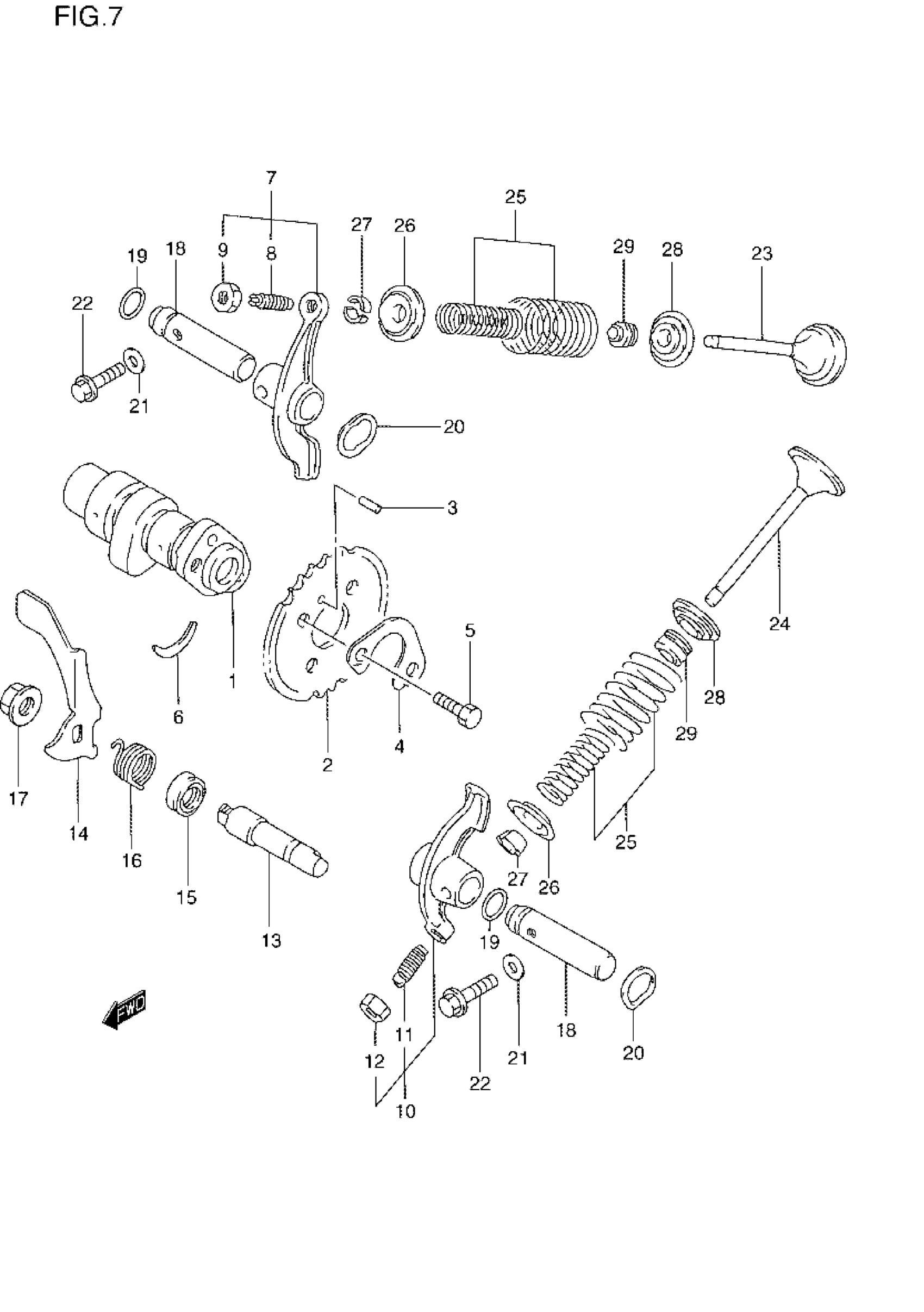

Suzuki LT-4WDXW (1998) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-19B70

$210.47

2

SPROCKET (NT:34) This part replaces 12741-04B00.

12741-04B01

$45.52

3

PIN

09261-05005

$1.48

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.63

5

BOLT (6X10.5)

09111-06032

$2.19

6

C-RING

09390-22002

$2.33

7

ARM ASSY, VALVE ROCKER | Includes Item(s) 8 - 9

12850-25C00

$41.29

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.16

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM ASSY, VALVE ROCKER | Includes Item(s) 11 - 12

12850-25C00

$41.29

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.16

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT, DECOMP

12941-19B00

$33.02

14

LEVER, DECOMP SHAFT

12942-19B01

$6.32

15

OIL SEAL (10X17X6)

09282-10014

$6.23

16

SPRING

09448-17014

$4.42

17

NUT This part replaces 08316-10083.

08316-1008B

$2.74

18

SHAFT, VALVE ROCKER ARM

12861-05201

$22.25

19

.O RING (D:1.9,ID:8.6)

09280-09005

$3.44

20

WASHER

09164-12021

$2.09

21

GASKET

09168-06023

$2.09

22

BOLT This part replaces 01550-06253.

01550-0625A

$2.01

23

VALVE, INTAKE

12911-19B00

$38.85

24

VALVE, EXHAUST

12912-18A00

$61.11

25

SPRING SET, VALVE

12920-05210

$13.54

26

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.80

27

COTTER, VALVE

12932-24400

$2.05

28

SEAT, VALVE SPRING

12933-49201

$5.74

29

OIL SEAL (5.5X11X8.2)

09289-05015

$6.23
