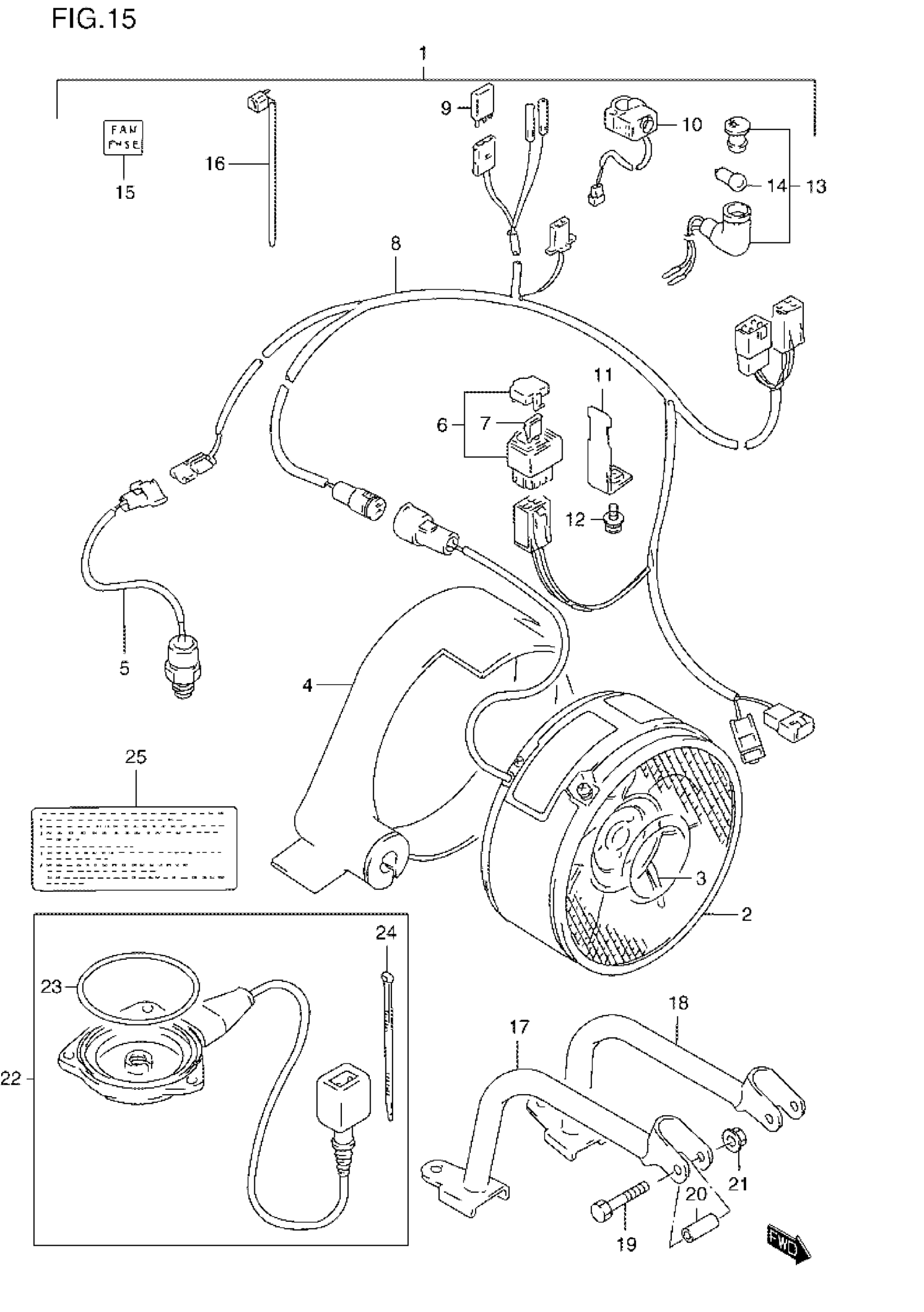

Find the part on the Cooling FAN (OPTIONAL:E3 diagram for your 1998 Suzuki LT-4WDXW, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-4WDXW Cooling FAN (OPTIONAL:E3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 21 This part replaces 17000-19851.

17000-19852

1
Out of stock

2

FAN ASSY, COOLING

17110-19B11

1
Out of stock

3

FAN

17820-19B10

1
Out of stock

4

BAND, COOLING FAN

17121-19B01

1
Out of stock

5

SWITCH, COOLING FAN

17680-19B70

1
Out of stock

6

BOX ASSY, FUSE

36740-24510

1
Out of stock

7

FUSE (10A)

09481-10101

1
Out of stock

8

HARNESS, WIRING

36610-19B70

1
Out of stock

9

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

10

SWITCH ASSY, MANUAL

37910-19B10

1
Out of stock

11

BRACKET, COOLING FAN FUSE

38620-04570

1
Out of stock

12

SCREW (6X12) | MODEL T

09138-06053

1
Out of stock

13

LAMP ASSY, FAN WARNING

36360-19B10

1
Out of stock

14

BULB (12V,3.4W)

09471-12001

1

$2.08

In stock

15

LABEL, FAN WARNING

36367-19B00

1
Out of stock

16

CLAMP (L:125)

09407-14403

3
Out of stock

17

TUBE, COOLING FAN RH

41970-19B20

1
Out of stock

18

TUBE, COOLING FAN LH

41980-19B21

1
Out of stock

19

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

2
Out of stock

20

SPACER (L:19)

09180-08067

2
Out of stock

21

NUT This part replaces 08316-10083.

08316-1008B

2
Out of stock

22

HEATER SET, ENGINE | MODEL T This part replaces 16900-19B00.

16900-19810

1
Out of stock

22

HEATER SET, ENGINE | MODEL V/W; Includes Item(s) 23 - 24

16900-19810

1
Out of stock

23

1

$5.01

In stock

24

CLAMP

09407-14403

5
Out of stock

25

LABEL, COOLING FAN

68341-19B10

1
Out of stock
