1995 Suzuki LT-4WD Transmission Lever Diagram

← All diagrams

Find the part on the Transmission Lever diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

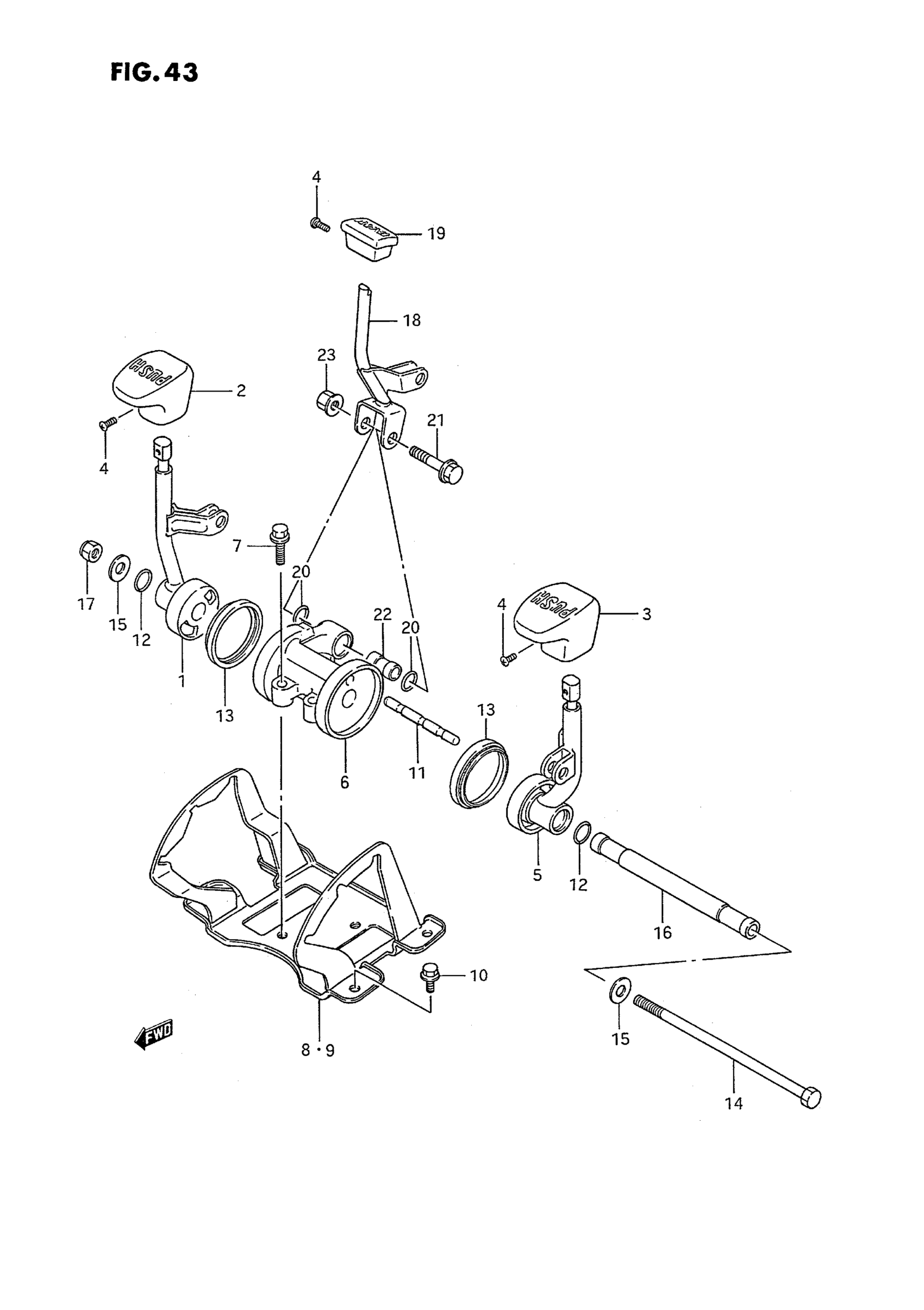

1995 Suzuki LT-4WD Transmission Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET,T/M S | MODEL H !57900-19840 USED WITH 57940-19B10 This part replaces 57920-19B00.

57900-19843

1
Out of stock

1

LEVER SET,T/M S | MODEL J/K/L/M/N/P/R/S This part replaces 57900-19840.

57900-19843

1
Out of stock

2

KNOB,SHIFT LEVE | MODEL H This part replaces 57930-19B00-26A.

57930-19B02-26A

1
Out of stock

2

KNOB,SHIFT LEVE | MODEL J/K/L/M/N/P/R/S This part replaces 57980-19B01-26A.

57980-19B02-26A

1
Out of stock

3

KNOB,SHIFT LEVE | MODEL H This part replaces 57980-19B00-26A.

57980-19B02-26A

1
Out of stock

3

KNOB,SHIFT LEVE | MODEL J/K/L/M/N/P/R/S This part replaces 57930-19B01-26A.

57930-19B02-26A

1
Out of stock

4

SCREW | MODEL H/J/K/L/M/N/P This part replaces 02142-04085.

02142-0408B

3
Out of stock

4

SCREW | MODEL R/S This part replaces 02142-04083.

02142-0408B

3
Out of stock

5

LEVER SET, T/F SHIFT | MODEL H This part replaces 57960-19B00.

57900-19851

1
Out of stock

5

LEVER SET, T/F SHIFT | MODEL J/K/L/M/N/P/R/S

57900-19851

1
Out of stock

6

BODY, T/F SHIFT

57931-19B01

1
Out of stock

7

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-06256.

01550-0625A

4
Out of stock

7

BOLT | MODEL R/S This part replaces 01550-06253.

01550-0625A

4
Out of stock

8

PLATE, T/F SHIFT BODY | MODEL H !57940-19B10 USED WITH 57900-19840 This part replaces 57940-19B00.

57940-19B30

1
Out of stock

9

PLATE, T/F SHIFT BODY | MODEL J/K/L/M/N/P/R/S This part replaces 57940-19B10.

57940-19B30

1
Out of stock

10

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-06106.

01550-0610A

4
Out of stock

10

BOLT | MODEL R/S This part replaces 01550-06103.

01550-0610A

4
Out of stock

11

ROD, T/F SHIFT STOPPER

57932-19B01

1
Out of stock

12

O RING, T/F SHIFT LEVER

09280-14007

2
Out of stock

13

DUST SEAL, T/F SHIFT LEVER

09284-44001

2
Out of stock

14

BOLT, T/F SHIFT LEVER

09100-08142

1
Out of stock

15

WASHER, T/F SHIFT LEVER

09160-08016

2
Out of stock

16

SPACER, T/F SHIFT LEVER

09180-08135

1
Out of stock

17

NUT This part replaces 08319-21083.

08319-2108A

1
Out of stock

18

LEVER, REVERSE

57970-19B01

1
Out of stock

19

KNOB,REVERSE CA This part replaces 58860-19B00-30D.

58860-19B01-30D

1
Out of stock

20

O RING, REVERSE LEVER PIVOT

09280-12001

2
Out of stock

21

BOLT, REVERWE LEVER PIVOT

09103-08004

1
Out of stock

22

SPACER, REVERSE LEVER PIVOT

09180-08139

1
Out of stock

23

NUT (CHROME) | MODEL H/J/K/L/M/N/P This part replaces 08316-16086.

08316-10087

1
Out of stock

23

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

1
Out of stock
