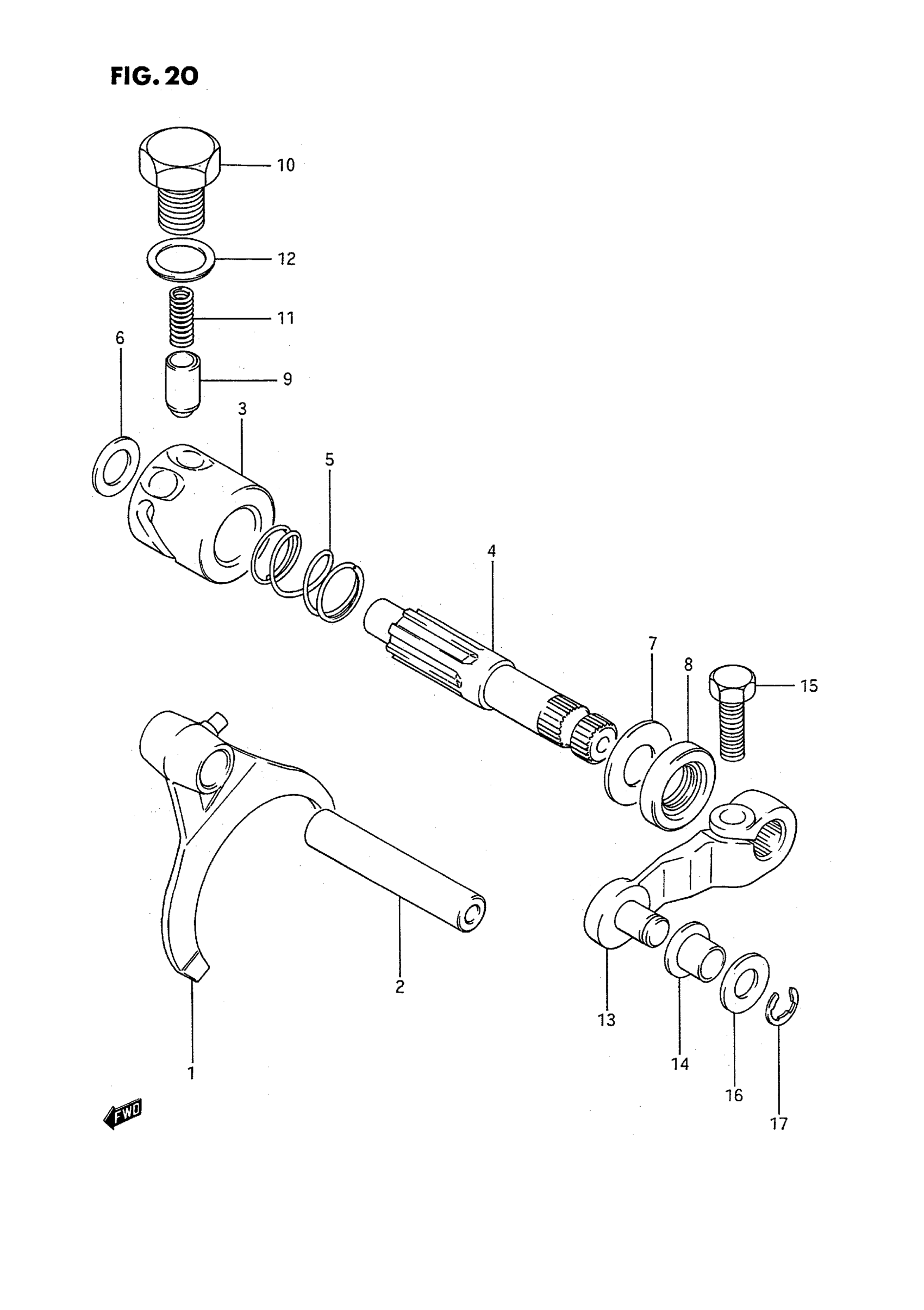

Suzuki LT-4WD (1995) DIFFERENTIAL LOCK Diagram

#

Description
Price

1

FORK, DIFFRENTIAL LOCKING

27941-19B00

Unavailable

2

SHAFT, FORK

25421-14301

$26.03

3

CAM, DIFFERENTIAL LOCKING

27911-19B01

Unavailable

4

SHAFT, CAM

27921-19B01

Unavailable

5

SPRING

09440-17008

$2.87

6

SHIM This part replaces 08211-10181.

09181-10167

$1.99

7

WASHER, LH

08211-12241

$2.07

8

OIL SEAL (12X22X9)

09285-12006

$5.70

9

STOPPER, SELECT CAM This part replaces 25351-18000.

25351-39300

$11.55

10

HOUSING

25352-11010

$6.80

11

SPRING

09440-05035

$3.57

12

GASKET (14.1X18X1.5) | MODEL H/J/K/L/M/N/P/R

09168-14004

$1.69

12

GASKET (13.8X18.8X0.4) | MODEL S

09168-14002

$2.83

13

ARM, DIFFERENTIAL LOCKING

25360-19B00

$74.95

14

BUSH | MODEL H

09306-08014

$2.67

15

BOLT | MODEL H/J/K/L/M/N This part replaces 09100-06091.

01500-06207

$1.99

15

BOLT (6X20) | MODEL P/R/S

01500-06207

$1.99

16

WASHER | MODEL H/J/K/L/M/N/P This part replaces 08322-11088.

08322-01087

$1.86

16

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$2.18

17

CIRCLIP | MODEL H/J/K/L/M/N/P This part replaces 08332-11066.

08332-1106A

$1.43

17

CIRCLIP | MODEL R/S This part replaces 08332-11063.

08332-1106A

$1.43
