1995 Suzuki LT-4WD Front Brake Hose Diagram

← All diagrams

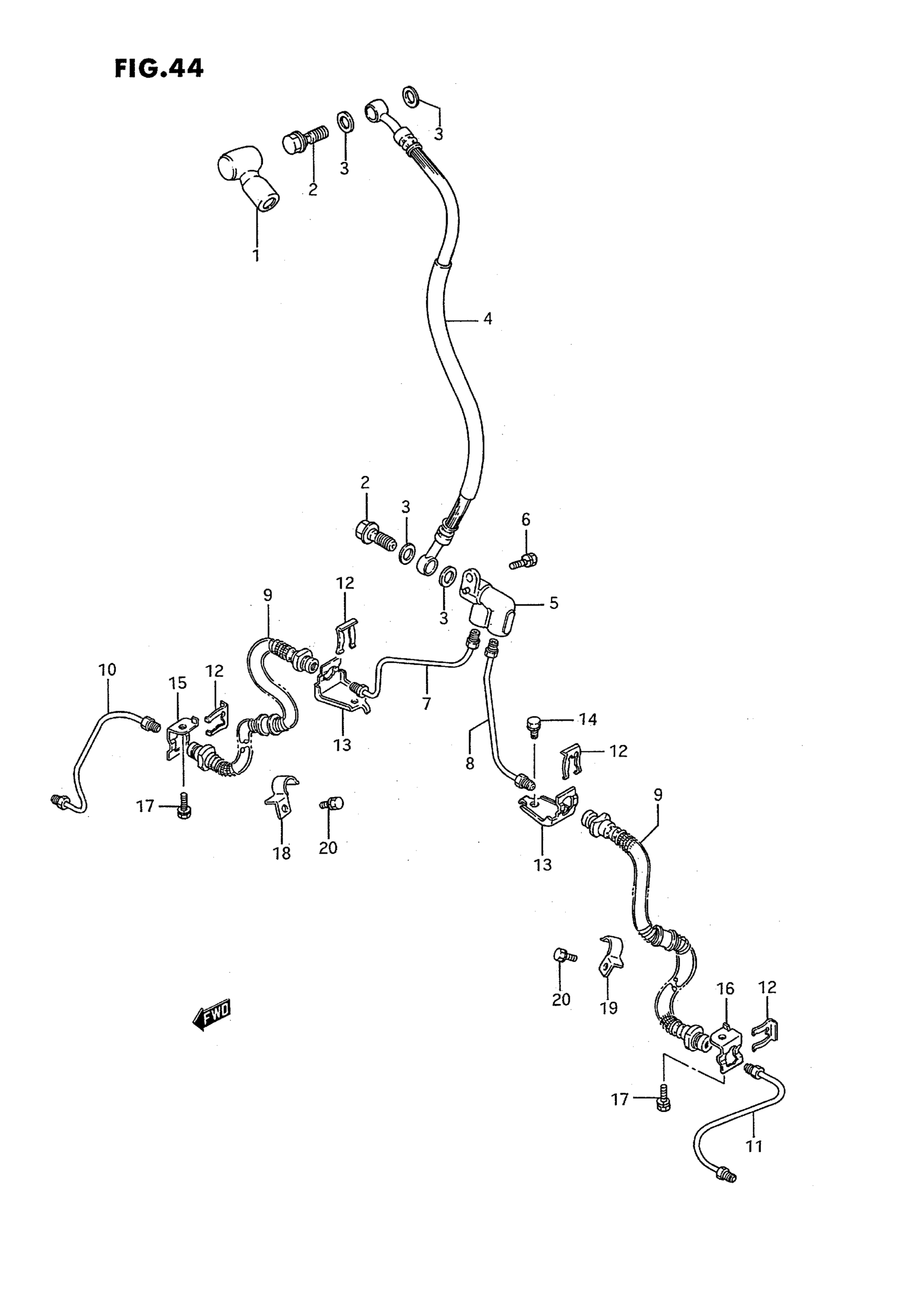

Find the part on the Front Brake Hose diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-4WD Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT,MASTER CYL | MODEL H/J/K/L/M/N This part replaces 59711-04700.

59711-04701

1
Out of stock

2

BOLT (10X1.00X24) | MODEL H/J/K/L/M/N/P

09360-10017

2
Out of stock

2

UNION | MODEL R/S This part replaces 09360-10039.

09360-10061

2
Out of stock

3

WASHER (10X15X1.5)

09161-10009

4
Out of stock

4

HOSE This part replaces 59480-19B01.

59480-19B03

1
Out of stock

5

JOINT, THREE WAY This part replaces 59490-19A00.

59491-19A10

1
Out of stock

6

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01134-06166.

01570-0616A

1
Out of stock

6

BOLT | MODEL R/S This part replaces 01570-06163.

01570-0616A

1
Out of stock

7

PIPE, BRAKE NO.1 RH

59250-19B00

1
Out of stock

8

PIPE, BRAKE NO.1 LH

59450-19B00

1
Out of stock

9

HOSE,FR BRAKE N This part replaces 59240-19B02.

59240-19B03

2
Out of stock

10

PIPE, BRAKE NO.2 RH

59250-19B10

1
Out of stock

11

PIPE, BRAKE NO.2 LH

59450-19B10

1
Out of stock

12

E RING This part replaces 09383-13001.

09383-13003

4
Out of stock

13

GUIDE, HOSE

59268-19B00

2
Out of stock

14

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01134-06126.

01570-0612A

2
Out of stock

14

BOLT | MODEL R/S This part replaces 01570-06123.

01570-0612A

2
Out of stock

15

GUIDE, HOSE RH

59261-19B00

1
Out of stock

16

GUIDE, HOSE LH

59271-19B00

1
Out of stock

17

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01134-06166.

01570-0616A

2
Out of stock

17

BOLT | MODEL R This part replaces 01570-06163.

01570-0616A

2
Out of stock

17

BOLT | MODEL S This part replaces 01570-06123.

01570-0612A

2
Out of stock

18

CLAMP, HOSE RH This part replaces 59266-19B01.

59266-19B02

1
Out of stock

19

CLAMP, HOSE LH This part replaces 59276-19B01.

59276-19B02

1
Out of stock

20

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01137-06128.

01570-06127

2
Out of stock

20

BOLT | MODEL R/S This part replaces 01570-06103.

01570-0610A

2
Out of stock
