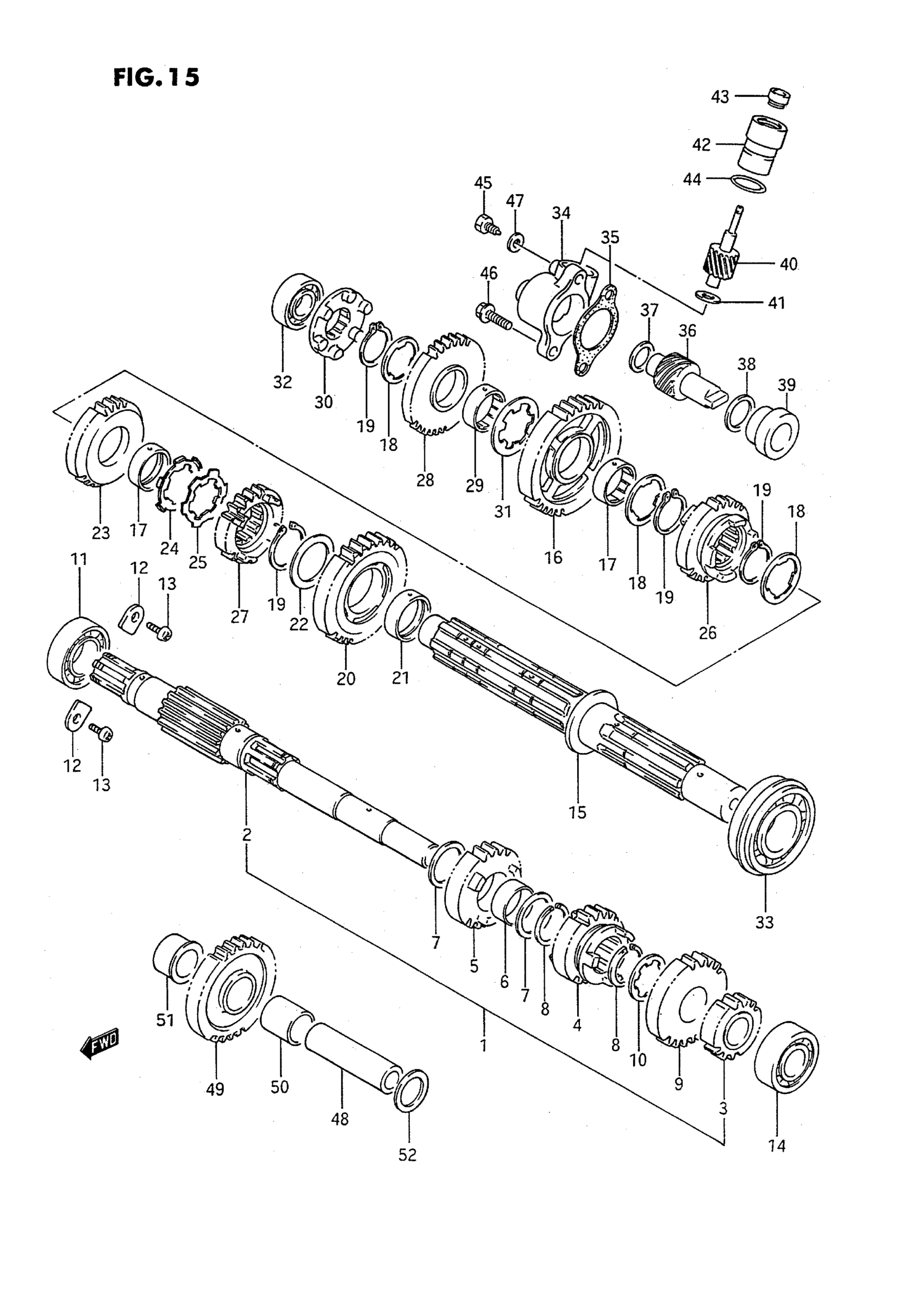

1995 Suzuki LT-4WD Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-4WD Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 10

24120-19B00

1
Out of stock

2

COUNTERSHAFT (NT:12) This part replaces 24121-19B01.

24121-19B10

1
Out of stock

3

GEAR, 2ND DRIVE (NT:15)

24221-18A00

1
Out of stock

4

GEAR,3RD DRIVE This part replaces 24231-18A01.

24231-18A03

1
Out of stock

5

GEAR, 4TH DRIVE (NT:21) This part replaces 24241-18A00.

24241-18A01

1
Out of stock

6

BUSH

09300-22008

1
Out of stock

7

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

2
Out of stock

8

CIRCLIP

09380-22006

2
Out of stock

9

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-18A01.

24251-18A03

1
Out of stock

10

WASHER

09167-22013

1
Out of stock

11

BEARING, RH

09262-22018

1
Out of stock

12

RETAINER | MODEL H/J/K/L/M/N/P/R This part replaces 24741-20A10.

24741-21A00

2
Out of stock

12

RETAINER | MODEL S

24741-21A00

2
Out of stock

13

SCREW | MODEL H/J/K/L/M/N/P This part replaces 02112-06128.

02112-06127

2
Out of stock

13

SCREW | MODEL R/S This part replaces 02112-06123.

02112-0612A

2
Out of stock

14

BEARING, MIDDLE

09267-17002

1
Out of stock

15

DRIVESHAFT This part replaces 24131-19B02.

24131-19B10

1
Out of stock

16

GEAR, 1ST DRIVEN (NT:37) This part replaces 24311-18A01.

24311-18A02

1
Out of stock

17

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

2
Out of stock

18

LOCK WASHER

09167-25016

3
Out of stock

19

SNAP RING

09380-25003

4
Out of stock

20

GEAR, 2ND DRIVEN (NT:29)

24321-18A01

1
Out of stock

21

BUSH

09300-25020

1
Out of stock

22

WASHER

08211-25351

1

$4.03

In stock

23

GEAR, 3RD DRIVEN (NT:25) This part replaces 24331-19B00.

24331-19B01

1
Out of stock

24

LOCK WASHER

09169-25001

1
Out of stock

25

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

26

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-18A01.

24341-18A02

1
Out of stock

27

GEAR, 5TH DRIVEN (NT:21) This part replaces 24351-18A01.

24351-18A02

1
Out of stock

28

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

1
Out of stock

29

BUSH,REVERSE DRIVEN GEAR

24333-18A00

1
Out of stock

30

DOG

24581-18A00

1
Out of stock

31

WASHER

09167-25017

1
Out of stock

32

BEARING, RH

09262-17026

1
Out of stock

33

BEARING, MIDDLE

09262-25085

1
Out of stock

34

HOUSING, ODOMETER GEAR

26441-19B01

1
Out of stock

35

GASKET | MODEL H/J/K/L/M/N/P This part replaces 26451-19B10.

26451-19B12

1
Out of stock

35

GASKET | MODEL R/S This part replaces 26451-19B11.

26451-19B12

1
Out of stock

36

GEAR, ODOMETER DRIVE (NT:10)

26461-19B00

1
Out of stock

37

WASHER, RH

08211-15201

1
Out of stock

38

WASHER, LH

08211-17241

1
Out of stock

39

SPACER

26481-19B00

1
Out of stock

40

GEAR, ODOMETER DRIVEN (NT:14)

26471-19B00

1
Out of stock

41

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

1
Out of stock

42

SLEEVE

26442-19B00

1
Out of stock

43

OIL SEAL

09289-05002

1
Out of stock

44

O RING (D:1.9,ID:16.6)

09280-17004

1
Out of stock

45

BOLT (6X10) | MODEL H/J/K/L/M/N/P This part replaces 09135-06002.

09135-06501

1
Out of stock

45

BOLT (6X10) | MODEL R/S This part replaces 09135-06013.

09135-06501

1
Out of stock

46

BOLT | MODEL H/J/K/L/M/N/P

01547-06207

2
Out of stock

46

..BOLT | MODEL R/S This part replaces 01547-06203.

01547-0620B

2
Out of stock

47

WASHER (6.2X11X1.2)

09168-06004

1
Out of stock

48

SHAFT, REVERSE IDLE

24551-19B00

1
Out of stock

49

GEAR, REVERSE IDLE (NT:29)

24561-19B00

1
Out of stock

50

BUSH

09300-17010

1
Out of stock

51

SPACER

24562-19B00

1
Out of stock

52

WASHER, 1ST DRIVEN This part replaces 08211-17281.

09181-17195

1
Out of stock
