2004 Suzuki LS650P Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2004 Suzuki LS650P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

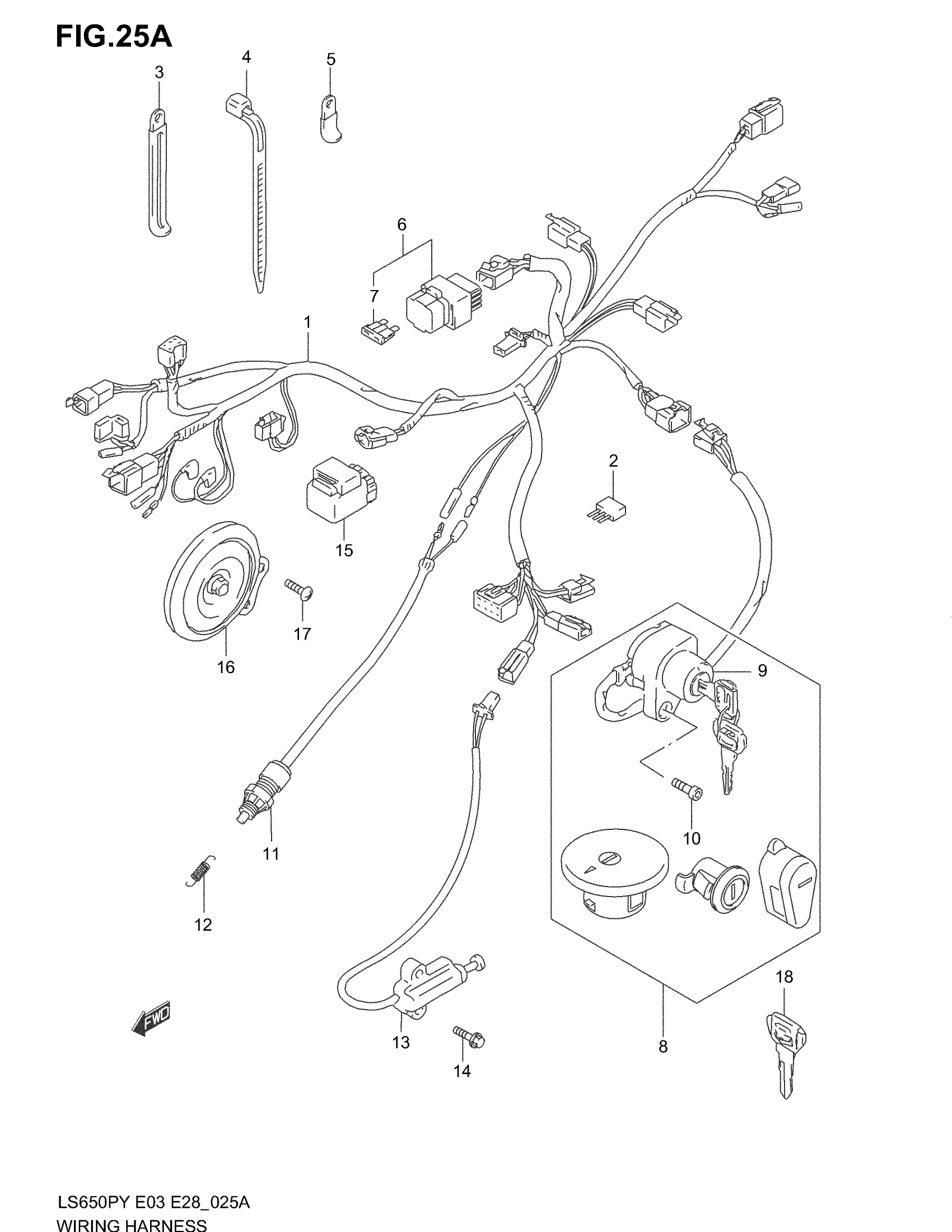

2004 Suzuki LS650P Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | Includes Item(s) 2

36610-24BA0

1
Out of stock

2

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

3

CLAMP This part replaces 09404-08207.

09404-08212

1
Out of stock

4

CLAMP (L:125)

09407-14403

4
Out of stock

4

CLAMP (L:165)

09407-18402

4
Out of stock

4

CLAMP (L:235)

09407-25401

2
Out of stock

5

CLAMP, WIRING HARNESS

36651-24B00

1
Out of stock

6

1

$31.82

In stock

7

FUSE (20A)

09481-20101

2

$2.31

In stock

8

LOCK SET

37100-24844

1
Out of stock

8

LOCK SET | E33; Includes Item(s) 9

37100-24880

1
Out of stock

9

SWITCH ASSY, IGNITION

37110-24B03

1
Out of stock

10

BOLT This part replaces 07130-05163.

07130-0516A

1
Out of stock

11

SWITCH ASSY, STOP LAMP

37740-31D00

1
Out of stock

12

SPRING

09443-06077

1
Out of stock

13

SWITCH ASSY,SID This part replaces 37840-12X50.

37840-12X52

1
Out of stock

14

BOLT This part replaces 01550-06203.

01550-0620A

2
Out of stock

15

RELAY ASSY. SIDE STAND

38740-24X50

1
Out of stock

16

HORN ASSY

38500-24B00

1
Out of stock

17

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

18

KEY, BLANK TYPE C (A51) | OPT

37146-03A00

1
Out of stock

18

KEY, BLANK TYPE D (A52) | OPT

37146-03A10

1
Out of stock

18

KEY, BLANK TYPE E (A53) | OPT

37146-03A20

1
Out of stock

18

KEY, BLANK TYPE F (A54) | OPT

37146-03A30

1
Out of stock
