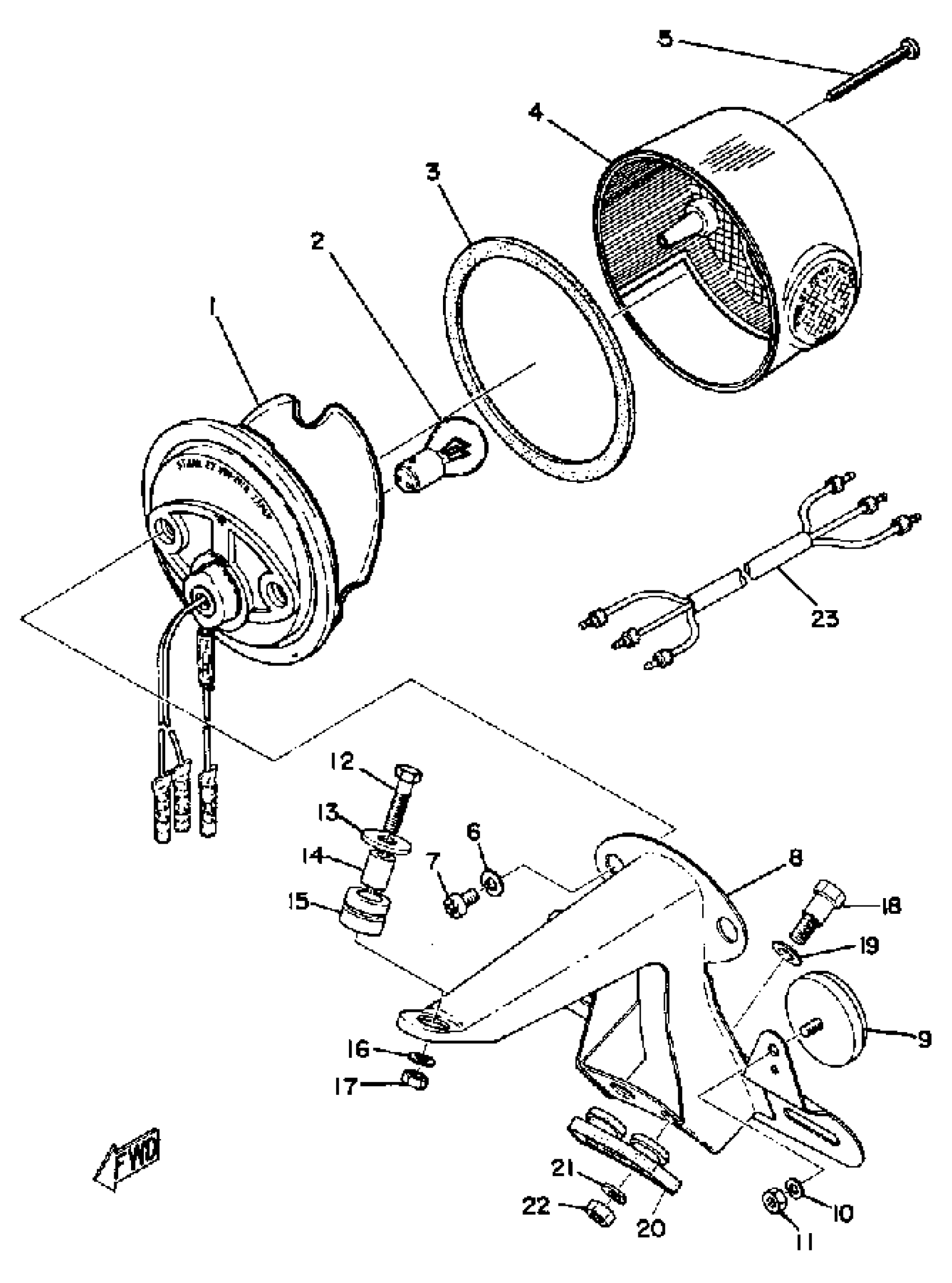

Find the part on the Tail Lamp diagram for your 1972 Yamaha LS2 (LS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha LS2 (LS2) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

256-84710-61-00

1
Out of stock

1

BASE, TAILLIGHT

(275-84511-61-00)

1
Out of stock

2

1

$10.02

In stock

3

. GASKET, LENS

275-84523-60-00

1
Out of stock

4

LENS, TAILLIGHT

(275-84521-60-00)

1
Out of stock

5

SCREW, PAN HEAD

98507-04050-00

1

$2.12

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

8

BRACKET, LICENSE

(256-84751-61-35)

1
Out of stock

9

REFLECTOR, FRONT 1

(278-85111-00-00)

1
Out of stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

WASHER

90209-06012-00

1

$4.71

In stock

14

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

15

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

BOLT 168217380000

90109-06017-00

—
Out of stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

DAMPER

214-84553-01-00

—

$6.72

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

23

CORD, TAILLIGHT

(214-84517-00-00)

1
Out of stock
